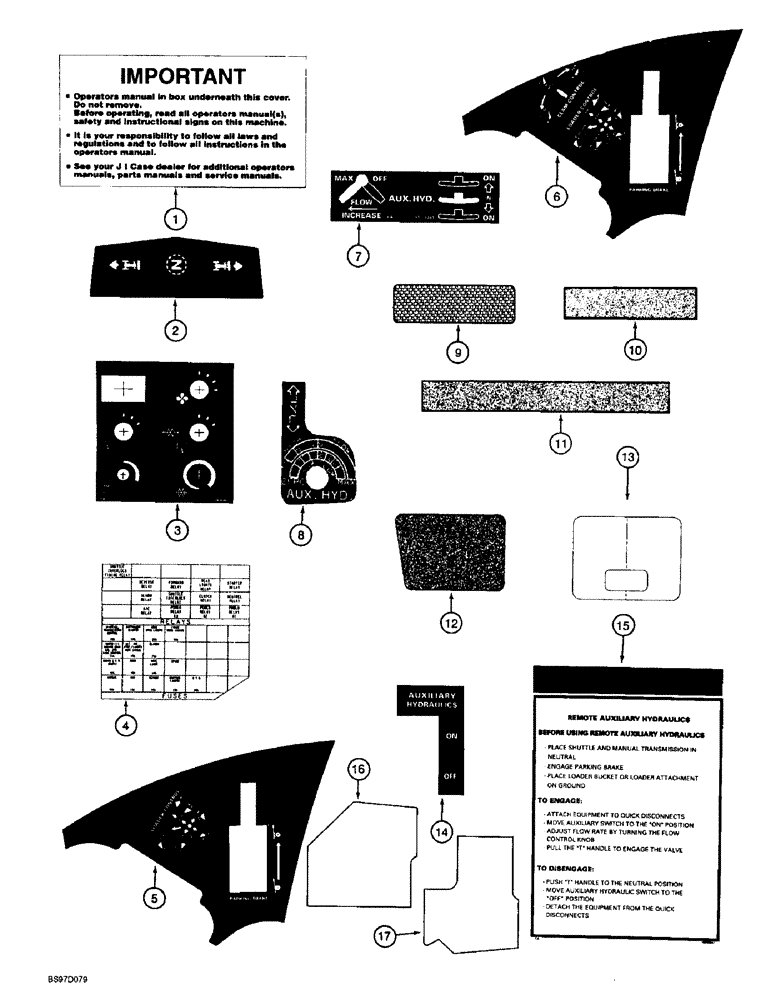

Запчасти Case 580L (9-170) - DECALS (09) - CHASSIS/ATTACHMENTS

1

144193A1

DECAL

Important, operator's manual in box underneath this cover, glove box lid

1шт.

2

D137615

DECAL

shuttle shift lever control pattern, on steering column cover

1шт.

3

135183A1

DECAL

instrument symbols, wipers and environmental control

1шт.

4

278551A1

DECAL

fuses and relays, loader control console fuse access panel cover, Replaces: 182334A1 and 197955A1 decals

1шт.

5

137290A1

DECAL

two function loader control, lift and bucket control pattern

1шт.

6

137289A1

DECAL

three function loader control, lift, bucket and clam control pattern

1шт.

7

179683A1

DECAL

hand held auxilliary hydraulics, if used

1шт.

8

199382A1

DECAL

backhoe auxiliary hydraulics, flow control, if used

1шт.

9

D87870

DECAL

REFLECTOR red

2шт.

10

D55216

PAD,2" x 9"

PAD anti-skid, 4 used on cab models, 10 used on canopy models

4-10шт.

11

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, 2 used on cab models, 3 used on canopy models

2-3шт.

12

128804A1

DECAL

STRIP anti-skid

2шт.

13

192450A1

DECAL

clear vinyl, hood

1шт.

14

192299A1

DECAL

auxiliary hydraulics, at rocker switch on instrument panel, if used

1шт.

15

192300A1

DECAL

remote auxiliary hydraulics, operating instructions, if used

1шт.

16

197345A1

LINING

PAD anti-skid, left hand, ROPS canopy models

1шт.

17

197346A1

LINING

PAD anti-skid, right hand, ROPS canopy models

1шт.
