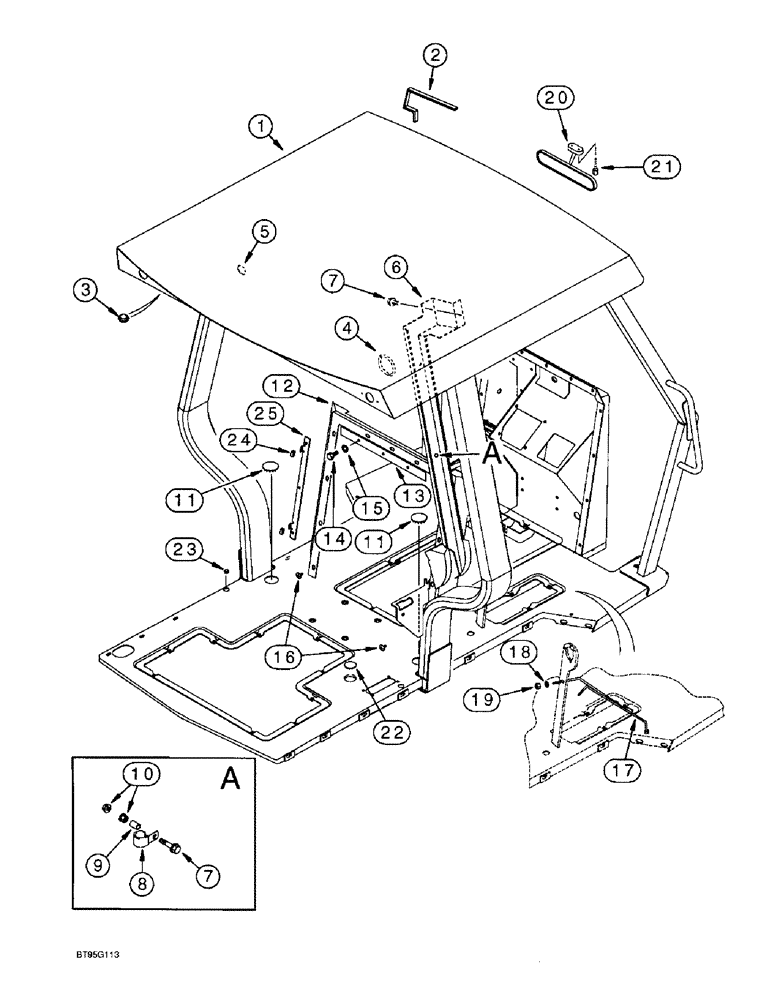

Запчасти Case 580L (9-160) - 580L OR 570LXT STANDARD ROPS CANOPY/ OPERATOR COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

124309A2

ROPS

CANOPY ROPS, order from Machinery Price List, 580L models, Replaces: 124309A1 canopy

1шт.

1a

143657A2

ROPS

CANOPY ROPS, order from Machinery Price List, 570LXT models, not shown, Replaces: 143657A1 canopy

1шт.

See Figure 9-162 for 570LXT short ROPS canopy with minimal roof.

1шт.

2

D60180

STRIP

TRIM edge, 368 mm, 14-1/2 inch long, cut from F42827 bulk trim, if used

2шт.

345-133

GLUE

ADHESIVE Superbonder 409, attaches wire harness to ROPS post, if used

1шт.

3

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

4-8шт.

4

D93716

PLUG,73.mm ID x 88.9mm OD

plastic, 3 inch, 76 mm diameter

4шт.

5

353-417

PLUG,Dome, 2.000" hole, Nylon

button, 2 inch, nylon, driving, flood and work lamps

8шт.

6

127324A1

COVER

wiring, right hand ROPS post

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon, Replaces: 281-45510 5/8 inch bolt used on some models

3шт.

8

D147383

CLIP,5/8" J

CLAMP J-type, canopy harness to ROPS post

2шт.

9

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

clamp

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

4шт.

11

205-129

HOLE PLUG BUTTON,2"

PLUG button, 2 inch ID, floor

2шт.

If not available, order 205-67.

1шт.

12

143121A1

MOLDING

SEAL firewall

1шт.

13

143127A1

PLATE

stiffener, firewall

1шт.

14

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

BOLT - hex flange, self-tapping, 8 - 1.25 x 20 mm, Replaces 614-8020 full thread bolt used on some models

9шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

9шт.

16

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push in, plastic

2шт.

17

180801A1

SUPPORT

BRACE loader control bracket

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

20

194513A1

MIRROR

rear view, interior

1шт.

21

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.

22

205-33

HOLE PLUG BUTTON,25/32"

PLUG button, 25/32 inch ID, used on models without creeper controls

1шт.

23

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

1шт.

24

127367A1

NUT,M6, U

4шт.

25

137851A1

PLATE

bar, front console, Serial Range: mounting-firewall

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.
