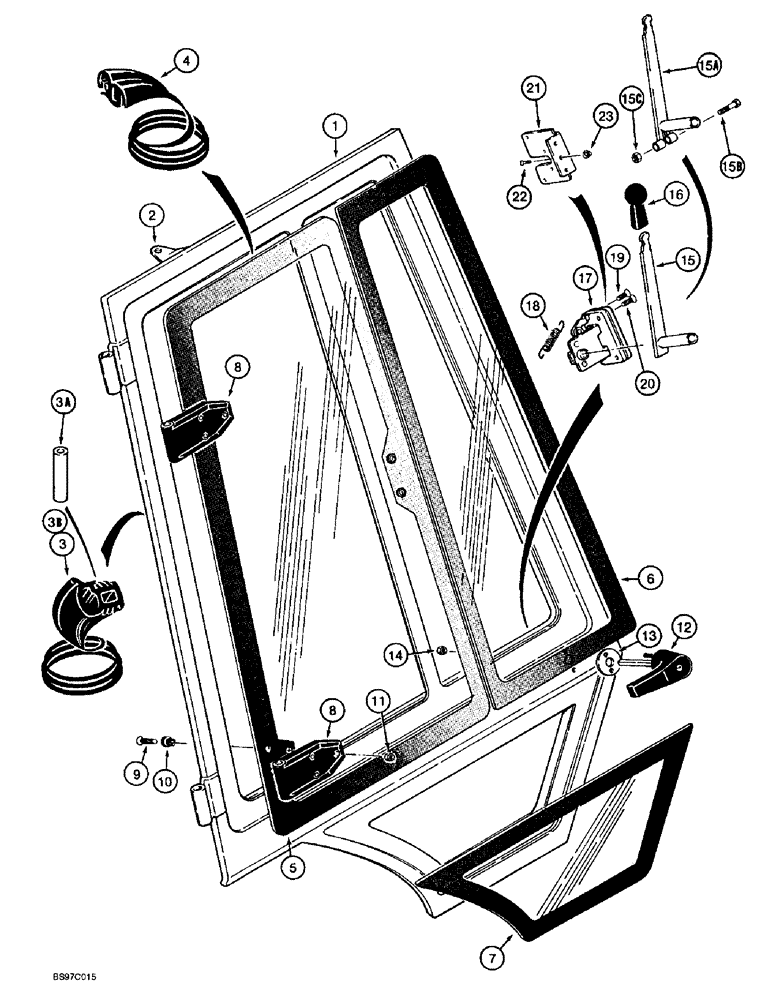

Запчасти Case 580L (9-128) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR (09) - CHASSIS/ATTACHMENTS

1

137869A3

DOOR ASSY.

FRAME right hand door, Replaces: 137869A1 and 137869A2 frame

1шт.

Complete door assembly is P/N 194013A2.

1шт.

1a

137868A3

DOOR ASSY.

FRAME left hand door, not shown, Replaces: 137868A1 and 137868A2 frame

1шт.

Complete door with glass is 194021A2.

1шт.

2

R53562

BRACKET

cable, welded to left hand or right hand door frame

1шт.

3

187582A1

DOOR SEAL

bulb type, with drain holes, 4585 mm, 180-1/2 inch long, without self adhesive, left hand and right hand door frames, used with Ref 3A tube

2шт.

Install item 3 door seal, 187582A1, starting at top edge of lower hinge, installing it downward. Trim off excess and insert 187585A1 splice tube, item 3A, into both ends. Splice tube to be coated with Loctite adhesive, item 24.

1шт.

3a

187585A1

DOOR SEAL

door seal, rubber splice, use with Ref .24 adhesive, if used

2шт.

Install item 3 door seal, 187582A1, starting at top edge of lower hinge, installing it downward. Trim off excess and insert 187585A1 splice tube, item 3A, into both ends. Splice tube to be coated with Loctite adhesive, item 24.

1шт.

3b

187582A2

SEAL,4585mm L

bulb type, with drain holes, 4585 mm, 180-1/2 inch long, with self adhesive, Replaces: Ref. 3 and 3A on some models

2шт.

4

R53444

SEAL,2688mm L

bulb type, 2689 mm, 105-7/8 inch long, left hand and right hand window frames

2шт.

5

R52882

GLASS

right hand door, rear window, tinted

1шт.

5a

R52881

GLASS

left hand door, rear, window, tinted, not shown

1шт.

6

R52880

GLASS

right hand door, front, tinted

1шт.

6a

R52879

GLASS

left hand door, front, tinted, not shown

1шт.

7

R52884

GLASS

right hand door, lower, tinted

1шт.

7a

R52883

GLASS

left hand door, lower, tinted, not shown

1шт.

8

R52917

HINGE

glass, door window

4шт.

9

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

machine, oval Phillips, No. 10 NC x 3/4 inch, left hand and right hand door window hinge

12шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, glass to hinge, left hand and right hand door window hinge

12шт.

11

F45165

SPECIAL NUT,#10-24

NUT hex, self locking, special, No. 10 NC, Teflon coated, left hand and right hand door window hinge

12шт.

12

196675A2

HANDLE

right hand door, outer, Replaces: R53001 and 196675A1 handle; Use With 86502201 Key

1шт.

12a

196673A2

HANDLE

left hand door, outer, not shown, Replaces: R53002 and 196673A1 handle; Use With 86502201 Key

1шт.

86502201

IGNITION KEY

SET OF 2 KEYS, Door Handle

1шт.

13

F64342

GASKET,1.6mm Thk

door handle, left hand and right hand

2шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , LH and RH handles #10-24, GB

4шт.

15

R54625

LEVER

inner left hand and right hand door latch handle, if used

2шт.

255450A1

SET OF PARTS

KIT service, inner door handle, Includes (1 each) Ref. 15A - 15C, plus instructions, if used

1шт.

15a

255453A1

LEVER

inner left hand or right hand door latch handle

1шт.

When Ref. 15A, 255453A1, is used on older L series, a notch will need to be added to panel P/N 108936A2 and 108938A2 in order to clear bolt head.

1шт.

15b

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 - 1.25 x 45 mm

1шт.

15c

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

16

D135387

GRIP

KNOB lever, inner door latch

2шт.

17

R55000

LATCH ASSY.

LATCH ASSEMBLY door, right hand, rotary

1шт.

17a

R55001

LATCH ASSY.

LATCH ASSEMBLY door, left hand, rotary, not shown

1шт.

18

A180163

SPRING

extension, left hand or right hand door latch

1шт.

19

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW self tapping, oval Phillips, No. 10-16 x 3/4 inch, left hand and right hand door latch

4шт.

20

137731A1

SELF-TAP SCREW,Cross Flat Hd, 1/4"-20 x 1"

SCREW machine, flat head Phillips, special, 1/4 NC x 1 inch, left hand and right hand door latch

8шт.

21

1977401C1

SUPPORT

BRACKET latch, right hand rotary

1шт.

21a

1977402C1

SUPPORT

BRACKET latch, left hand rotary, not shown

1шт.

22

443-13112

SCREW,Cross Flat Hd, 5/16"-18 x 3/4"

machine, flat Phillips, 5/16 NC x 3/4 inch

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

24

345-157

LOCTITE

ADHESIVE Loctite, 380 black, not shown

1шт.
