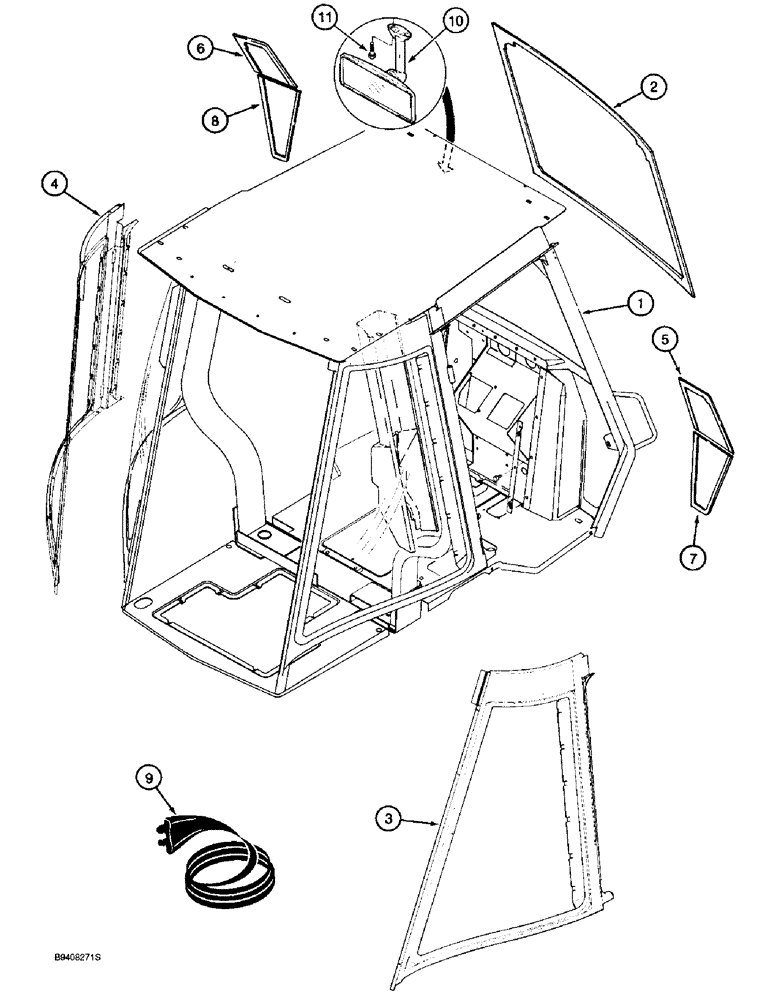

Запчасти Case 580L (9-124) - ROPS CAB AND GLASS (09) - CHASSIS/ATTACHMENTS

1

280999A1

KIT

CAB ASSEMBLY ROPS, operators, complete with heat, order from Machinery Price List, 580L, parts list Figures 9-124 thru 9-158, Replaced: 121646A4

1шт.

1

280999A1

KIT

CAB ASSEMBLY ROPS, operators, complete with heat and air conditioning, order from Machinery Price List, 580L, parts list Figures 9-124 thru 9-158, Replaced: 121647A4

1шт.

1

281000A1

KIT

CAB ASSEMBLY ROPS, operators, complete with heat, order from Machinery Price List, 570LXT, not shown, parts list Figures 9-124 thru 9-158, Replaced: 141963A4

1шт.

1

281000A1

KIT

CAB ASSEMBLY ROPS, operators, complete with heat and air conditioning, order from Machinery Price List, 570LXT, not shown, parts list Figures 9-124 thru 9-158, ( replaced 141964A4 )

1шт.

2

97290C1

GLASS

front windshield

1шт.

3

D126204

GLASS

right hand rear quarter panel window

1шт.

4

D126205

GLASS

left hand rear quarter panel window

1шт.

5

107230A1

GLASS

knee, upper, right hand

1шт.

6

107233A1

GLASS

knee, upper, left hand

1шт.

7

107232A1

GLASS

knee, lower, right hand

1шт.

8

107234A1

GLASS

knee, lower, left hand

1шт.

9

108513A1

SEAL, GLASS,290mm L

290 mm, 11-7/16 inch long, front knee glass

2шт.

10

143369A2

MIRROR ASSY.

MIRROR rear view, interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.
