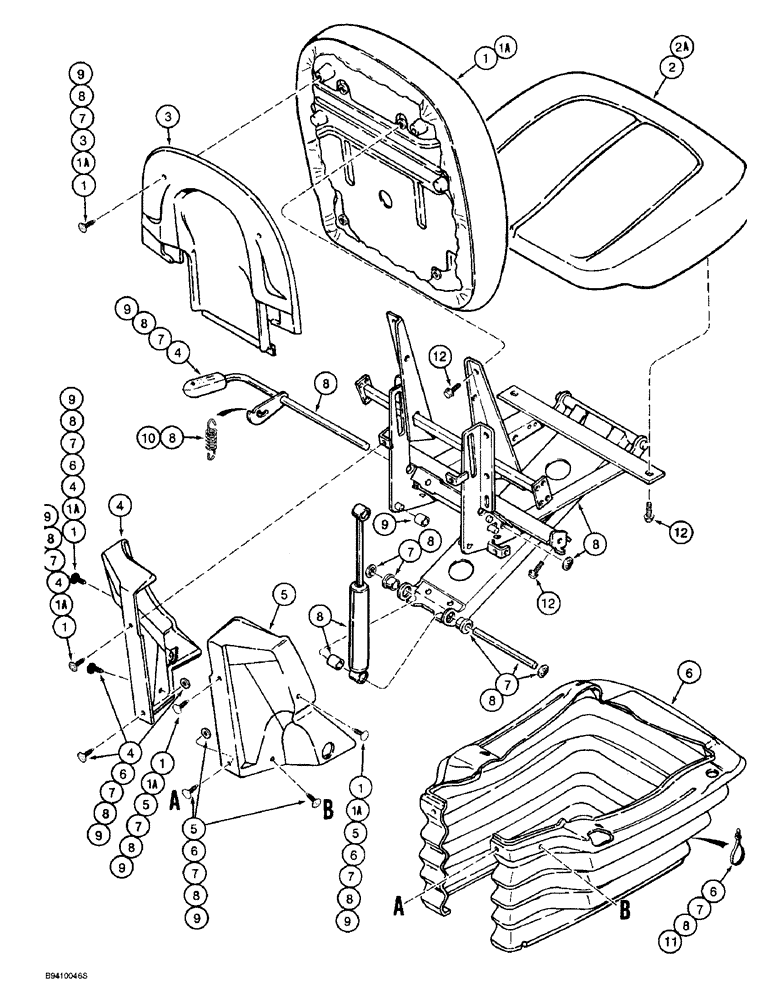

Запчасти Case 580L (9-116) - SUSPENSION SEAT ASSEMBLIES, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

136408A3

SEAT

ASSEMBLY suspension, gray cloth, without armrests, Includes seat, suspension, pedestal, and weight adjuster on Figure 9-120, purchase armrests separately, see Figure 9-122 for armrests, individual component parts not serviced separately, for service

1шт.

136419A2

SEAT

ASSEMBLY suspension, gray vinyl, without armrests, Includes seat, suspension, pedestal, and weight adjuster on Figure 9-120, purchase armrests separately, see Figure 9-122 for armrests, individual component parts not serviced separately, for service

1шт.

1

176922A2

KIT

backrest cushion, gray cloth, Replaces: 176922A1 kit

1шт.

1a

176923A1

KIT

backrest cushion, gray vinyl

1шт.

2

176909A2

KIT

seat cushion, gray cloth, Replaces: 176909A1 kit

1шт.

2a

176910A1

KIT

seat cushion, gray vinyl

1шт.

3

176906A1

KIT

backrest shroud

1шт.

4

176903A1

KIT

left hand shroud

1шт.

5

176904A1

KIT

right hand shroud

1шт.

6

176911A1

KIT

boot, rubber

1шт.

7

176919A1

KIT

swing arm pivot shaft

1шт.

8

192303A1

KIT

suspension, Includes parts from seat frame to adjuster slides, see additional kit parts on Figure 9-120, Ref. 1

1шт.

9

176921A1

KIT

plastic components, also see additional kit parts on Figure 9-120, Ref. 2

1шт.

10

116547A1

KIT

height adjusting spring, also Includes (10) shroud plastic retainers, see additional kit parts on Figure 9-120, Ref. 6

1шт.

11

181170A1

KIT

cable, fore-aft/swivel mechanism, also Includes cable and (4) nuts on Figure 9-120

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
