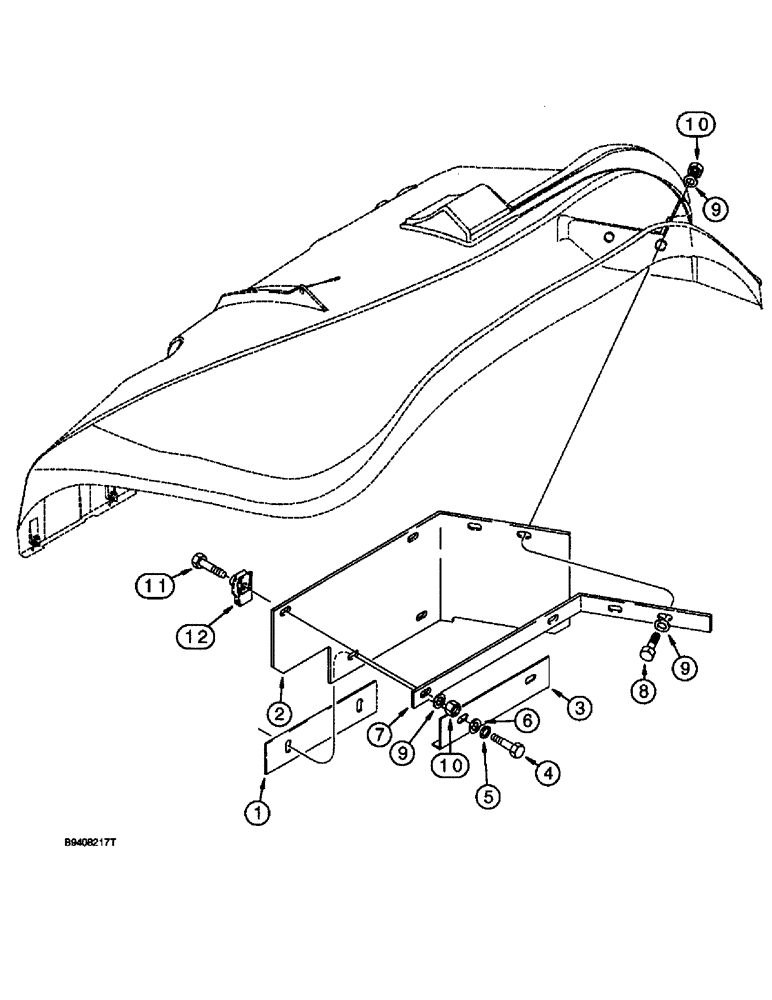

Запчасти Case 580L (9-098) - MUD GUARD (09) - CHASSIS/ATTACHMENTS

1

137655A2

LARGE PLATE

PLATE reinforcement, mud guard, Replaces: 137655A1 plate

1шт.

2

182396A1

PROTECTOR

GUARD mud, mounts at right hand fender

1шт.

3

136279A1

ANGLE BAR

ANGLE mud guard

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

7

136280A1

LARGE PLATE

ANGLE mud guard

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

6шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

11

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

12

833-40408

NUT,M8, U

Fender to frame, Replaces 122158A1 nut M8, U

2шт.
