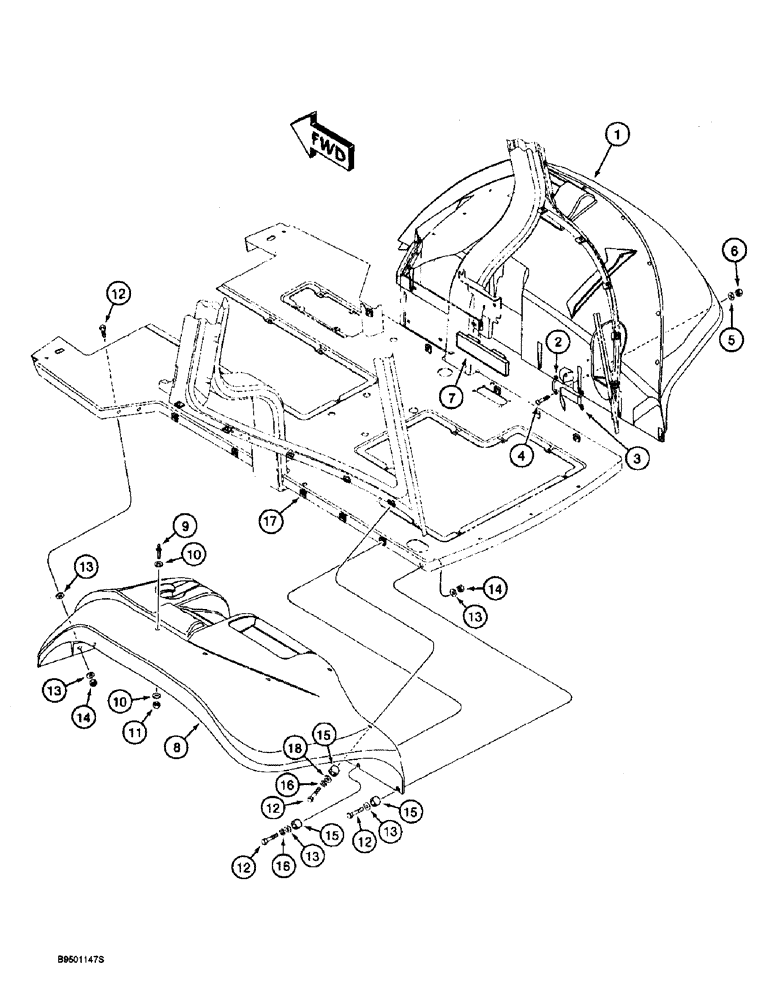

Запчасти Case 580L (9-094) - REAR FENDERS, CAB MODELS (09) - CHASSIS/ATTACHMENTS

1

132134A1

FENDER

right hand, gray, for hardware mounting the front of the fender, see mud guard Figure 9-098

1шт.

1a

181457A2

FENDER

PANEL fender, right- and upper, gray vinyl, optional deluxe interior, not shown, Replaces: 181457A1

1шт.

1b

131975A2

FENDER

PANEL fender, right hand lower, gray vinyl, optional deluxe interior, not shown, Replaces: 131975A1

1шт.

2

182594A1

HANDLE

BRACKET velcro retainer

2шт.

Used on 580L cab models only.

1шт.

3

184726A1

FIXING STRIP

STRAP velcro, right hand cab fender

1шт.

Used on 580L cab models only.

1шт.

4

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

- machine, oval countersunk Phillips, 4 - 0.7 x 25 mm

4шт.

Used on 580L cab models only.

1шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

4шт.

Used on 580L cab models only.

1шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

4шт.

Used on 580L cab models only.

1шт.

7

188482A1

SEALING STRIP

SEAL foam, ROPS, Serial Range: post-fender

2шт.

8

132133A1

FENDER

left hand, gray

1шт.

8a

130757A1

PANEL

fender, left hand, gray vinyl, optional deluxe interior, not shown

1шт.

8b

188410A2

CLOTHES

INSERT coffee cup holder, black plastic liner, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, Replaces: 188410A1

1шт.

8c

188411A2

TRAY

INSERT tool tray, black plastic liner, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, Replaces: 188411A1

1шт.

8d

192274A2

PROTECTOR

COVER left hand fender at cab entrance, black plastic, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, Replaces: 192274A1

1шт.

9

139362A1

BALL JOINT

STUD upper ball, 10 mm - 1.5, left hand fender

1шт.

10

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

22шт.

13

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

16шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

15

144282A1

SPACER

16 x 10 mm long, fender support plate

22шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

18шт.

17

833-40408

NUT,M8, U

Replaces 122158A1 nut M8, U

20шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

10шт.

19

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Retains tool tray and coffee cup inserts and fender cover at cab entrance, not shown Cross Pan Hd, #10-24 x 3/4"

7шт.

20

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with Ref. 19, not shown #10-24, GB

7шт.

345-187

SEALANT

Between Fenders and Cab

1шт.
