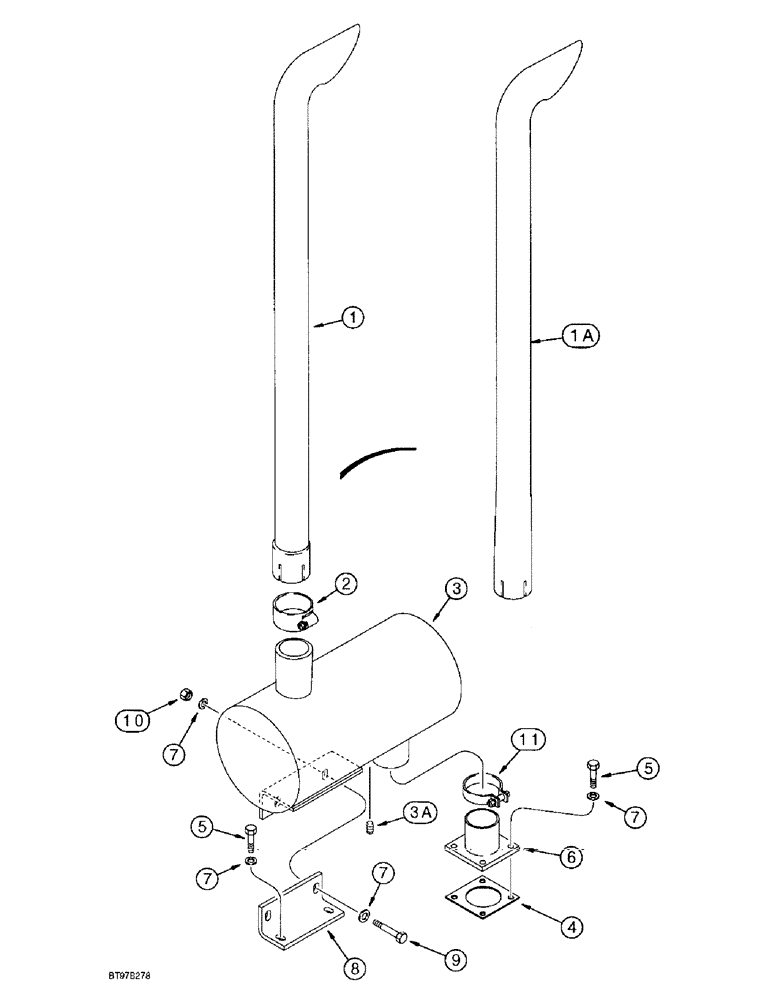

Запчасти Case 580L (2-012) - MUFFLER AND EXHAUST SYSTEM, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

1

192704A1

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension, no longer available, order P/N 275967A1 pipe, Ref 1A

1шт.

1a

275967A1

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension

1шт.

2

176437A1

CLAMP,63.5mm - mm

exhaust pipe to muffler, includes hardware

1шт.

3

192928A1

MUFFLER,W/ Spark Arrester

engine exhaust, spark arrester

1шт.

3a

217-77

PLUG

square, brass, 3/8 inch PT

1шт.

4

J912220

GASKET,0.4mm Thk

muffler to manifold, steel

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

6

L129963

ADAPTER

exhaust

1шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

8

121421A1

SUPPORT

BRACKET muffler support

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

176437A1

CLAMP,63.5mm - mm

exhaust pipe to muffler, includes hardware

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
