(9-085C) - BAFFLE PLATES AND SEALS, WITH AIR CONDITIONING

Запчасти Case 580L (9-085C) - BAFFLE PLATES AND SEALS, WITH AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

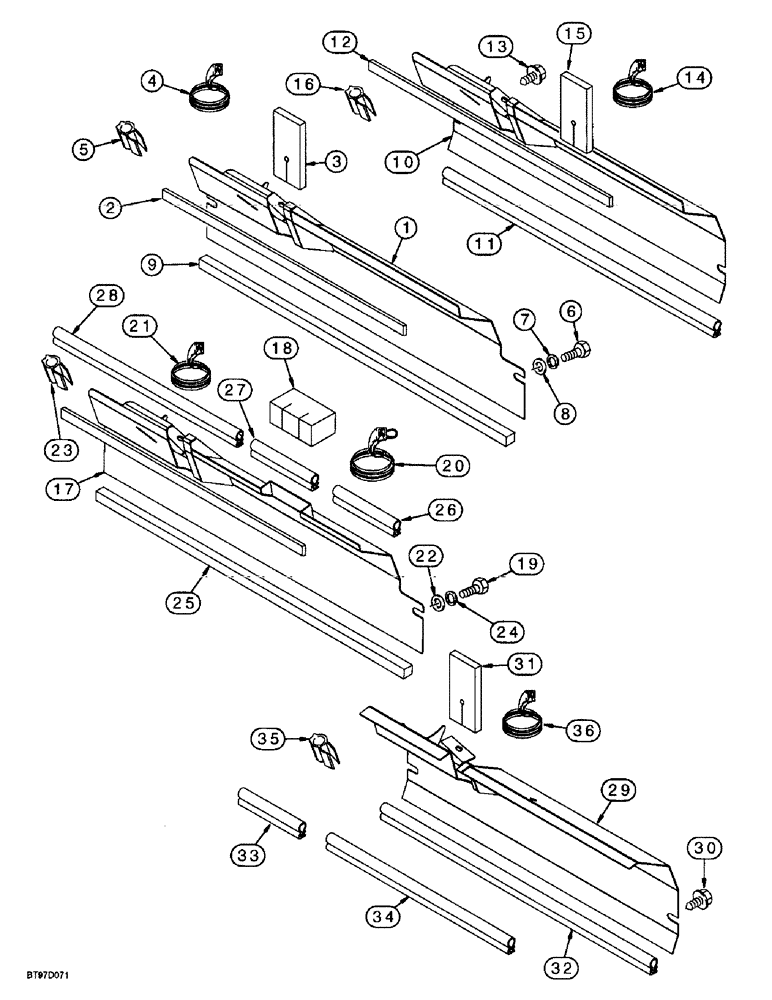

Схема запчастей Case 580L - (9-085C) - BAFFLE PLATES AND SEALS, WITH AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS
3
7
35
2
6
24
26
32
25
15
33
34
19
29
9
28
1
23
16
21
14
20
30
17
22
10
11
8
36
4
18
27
31
13
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

178718A3

LARGE PLATE

PLATE baffle, if used

1шт.

2

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch, cut into two, Serial Range: pieces-fit

1шт.

3

136278A2

LARGE PLATE

SEAL foam, adhesive backed

1шт.

4

D36179

LINING

TRIM edge, 108 mm, 4-1/2 inch long, cut from F42827 bulk trim

1шт.

5

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

9

233263A1

SEAL

foam, adhesive backed, 20 (25/32) x 20 (25/32) x 600 mm, 23-5/8 inch long

1шт.

10

242577A1

LARGE PLATE

PLATE baffle, no longer available, order 277662A1 plate, Ref. 29

1шт.

11

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

12

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch

1шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

14

D36179

LINING

TRIM edge, 108 mm, 4-1/2 inch long, cut from F42827 bulk trim

1шт.

15

136278A2

LARGE PLATE

SEAL foam, adhesive backed

1шт.

16

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

252695A1

PROTECTOR

KIT baffle plate, heavy duty, if used

1шт.

17

251377A2

DEFLECTOR

PLATE baffle, heavy duty, if used

1шт.

18

251442A1

SEAL

foam, adhesive backed

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

252655A1

SEAL

TRIM edge, 85 mm, 3-11/32 inch long

2шт.

21

D36179

LINING

TRIM edge, 108 mm, 4-1/2 inch long, cut from F42827 bulk trim

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

23

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

233263A1

SEAL

foam, adhesive backed, 20 (25/32) x 20 (25/32) x 600 mm, 23-5/8 inch long

1шт.

26

252329A1

SEAL

TRIM edge, 142 mm, 5-19/32 inch long

1шт.

27

252337A1

SEAL

TRIM edge, 142 mm, 5-19/32 inch long

1шт.

28

252339A1

SEAL

TRIM edge, 235 mm, 9-1/4 inch long

1шт.

29

277662A1

LARGE PLATE

PLATE baffle, standard radiator, if used

1шт.

30

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

31

136278A2

LARGE PLATE

SEAL foam, adhesive backed

1шт.

32

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

33

246063A1

SEAL

TRIM edge, 170 mm, 6-11/16 inch long, cut from 233749A1 bulk trim

1шт.

34

246064A1

SEAL

TRIM edge, 365 mm, 14-3/8 inch long, cut from 233749A1 bulk trim

1шт.

35

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

36

D36179

LINING

TRIM edge, 108 mm, 4-1/2 inch long, cut from F42827 bulk trim

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm, 35-7/16 inch long

1шт.

233749A1

SEAL

TRIM edge, bulk, 76200 mm, 3000 inch or 250 feet long

1шт.
