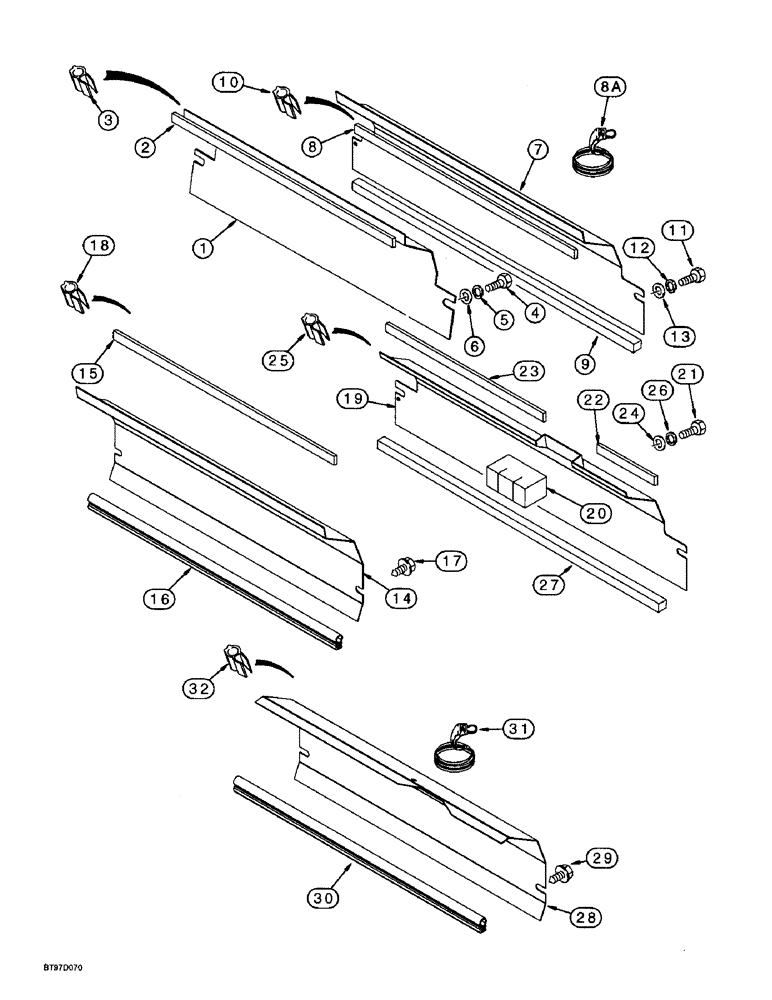

Запчасти Case 580L (9-085A) - BAFFLE PLATES AND SEALS, WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

194151A1

LARGE PLATE

PLATE baffle, no longer available, order 121942A3 plate below and 895-11008 washer and 829-1408 nut on Figure 4-44 for horn mounting

1шт.

2

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch

1шт.

3

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

7

121942A3

LARGE PLATE

PLATE baffle, if used

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

8

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch, if used

1шт.

8a

253674A1

SEAL

TRIM edge, 610 mm, 24 inch long, if used

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

9

233263A1

SEAL

foam, adhesive-backed, 20 (25/32) x 20 (25/32) x 600 mm, 23-5/8 inch long

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

10

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

14

229682A1

LARGE PLATE

PLATE baffle, no longer available, order 241172A1 plate, Ref. 28

1шт.

15

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch

1шт.

16

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

18

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

254273A1

PLATE ASSY.

KIT baffle plate, heavy duty, if used

1шт.

19

251379A1

LARGE PLATE

PLATE baffle, heavy duty, if used

1шт.

20

251442A1

SEAL

foam, adhesive backed

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

252329A1

SEAL

TRIM edge, 142 mm, 5-19/32 inch long

1шт.

23

253316A1

SEAL

TRIM edge, 379 mm, 14-15/16 inch long

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

25

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

233263A1

SEAL

foam, adhesive backed, 20 (25/32) x 20 (25/32) x 600 mm, 23-5/8 inch long

1шт.

28

241172A1

LARGE PLATE

PLATE baffle, standard radiator, if used

1шт.

29

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

30

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

31

277664A1

SEAL,575mm L

TRIM edge, 575 mm, 22-5/8 inch long

1шт.

32

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm, 35-7/16 inch long

1шт.

254274A1

PLATE

KIT baffle plate, without air conditioning, standard, Includes: Ref. 7, 8A, 9, and 10

1шт.
