Запчасти Case 580L (9-080) - BATTERY BOX, HYDRAULIC OIL TANK, RIGHT-HAND STEP AND MUD GUARD (09) - CHASSIS/ATTACHMENTS

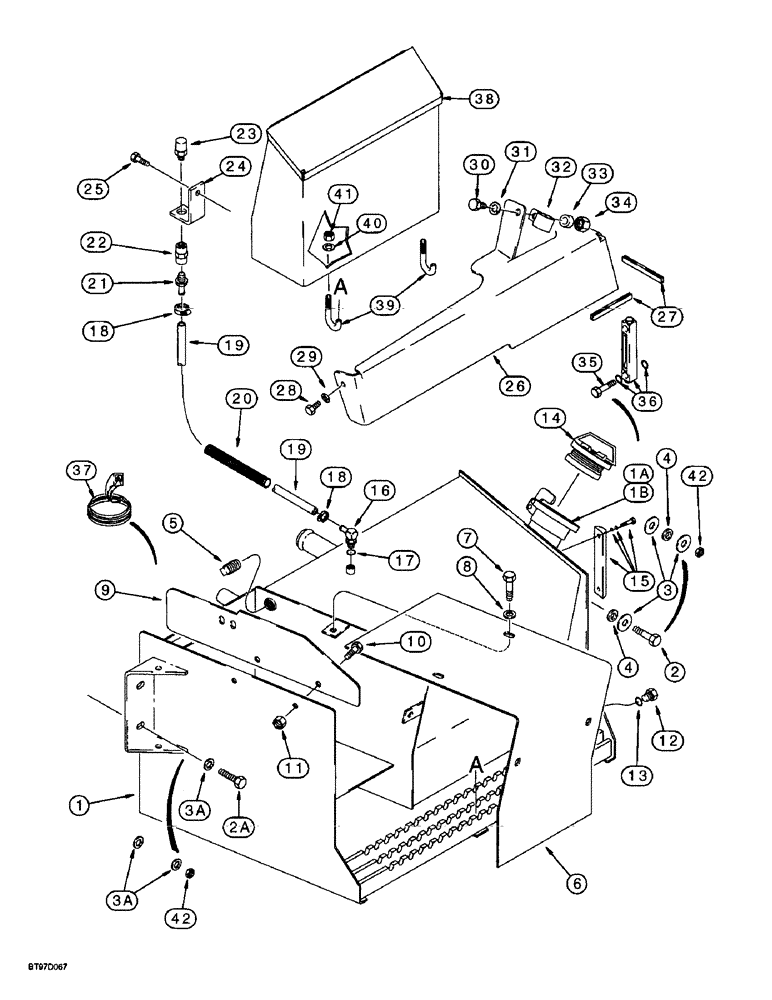

Схема запчастей Case 580L - (9-080) - BATTERY BOX, HYDRAULIC OIL TANK, RIGHT-HAND STEP AND MUD GUARD (09) - CHASSIS/ATTACHMENTS
3
15
2a
18
3a
20
31
28
42
11
1
7
6
10
16
21
33
19
34
25
13
14
42
39
35
9
23
36
30
18
12
22
2
41
40
3a
24
17
1
27
26
8
29
32
19
37
38
18
4
16
5

Артикул

Название

Примечание

Количество

1

130050A1

TANK, HYDRAULIC OIL

TANK hydraulic oil, right hand side of chassis, boss at Ref.5 plug is no longer there on some models, Includes: Ref. 1A-1B

1шт.

1a

230857A1

FILTER SCREEN

SCREEN strainer, fill tube

1шт.

1b

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, pan Phillips, No. 6 NC x 3/8 inch

2шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20-2.5 x 40 mm, class 10.9, if used

2-3шт.

See Figure 9-078 for studs used on some chassis.

1шт.

2a

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20 - 2.5 x 30 mm, class 10.9, if used

2шт.

See Figure 9-078 for studs used on some chassis.

1шт.

3

185646A1

WASHER

flat, hardened, special, 21 x 60 x 4 mm thick

2-4шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

2-4шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

bushing, right hand side of tank

2шт.

5

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket headless, 3/8 inch PT, if used

1шт.

6

231656A1

COVER

battery, 3 mm thick, Replaces: 133020A1 4mm thick cover

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

9

141405A1

GUARD

mud, right hand, also see Figure 9-098 for mud guard mounted at right hand fender

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 13 Hex Soc, 7/8"-14 ORB

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

138595A1

FILLER CAP,Male, Lockable

CAP hydraulic oil tank, nonvented

1шт.

15

180823A1

GAUGE

oil sight, Includes (2) bolts and (4) O-rings, which are not serviced separately, plastic, no longer available, order 226456A1 gauge, Ref 36

1шт.

16

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW 90 degree, 3/8 stem end x 9/16-18 inch adj O-ring boss, Includes: Ref. 17

1шт.

18

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

19

143218A1

HYDRAULIC HOSE

HOSE 9.5, 3/8 x 15 19/32 x 735 mm, 28-15/16 inch long, vent

1шт.

20

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

GUARD hose sleeve

1шт.

21

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

ADAPTER straight, 3/8 inch stem end x PT

1шт.

22

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

COUPLING pipe, 3/8 inch

1шт.

23

120943A1

STRAINER ASSY.

BREATHER pressure vacuum, hydraulic oil tank

1шт.

24

122603A1

SUPPORT

BRACKET breather mounting

1шт.

25

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm, Replaces: 614-10025 25 mm long bolt used on some models

1шт.

26

188008A2

COVER

right hand loader lift frame tubing, mounted above hydraulic oil tank

1шт.

27

191047A1

MOLDING

TRIM edge, 315 mm, 12-13/32 inch long

1шт.

Apply 75 mm, 3 inch of trim to front lower edge and 240 mm, 9-7/16 inch of trim to outside lower edge of cover.

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

30

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

31

892-11010

LOCK WASHER,M10

1шт.

32

D138055

CLAMP

tube

1шт.

33

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

35

B17576

GASKET MAKER FLUID

SEALANT gasket, RTV No. 595, clear, 300 ml tube

1шт.

36

226456A1

LEVEL GAUGE

GAUGE, LEVEL, Assy - Sight, Hydraulic oil, Full/cold lettering, Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings, Used with Ref 35 sealant

1шт.

37

D40442

MOLDING

TRIM edge, 305 mm, 12 inch long, cut from F42827 bulk trim

1шт.

228910A1

BOX

KIT tool box, mounts on top of steps on right hand tank, if used

1шт.

38

228094A1

BOX

tool

1шт.

39

228697A1

HOOK,M10 - 1.5 x 65mm

BOLT J-type, 10 mm - 1.5

2шт.

40

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

42

829-1420

NUT,M20, Cl 10

Used on models with studs on chassis, See Figure 9-078, if used M20, Cl 10

4шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 51
