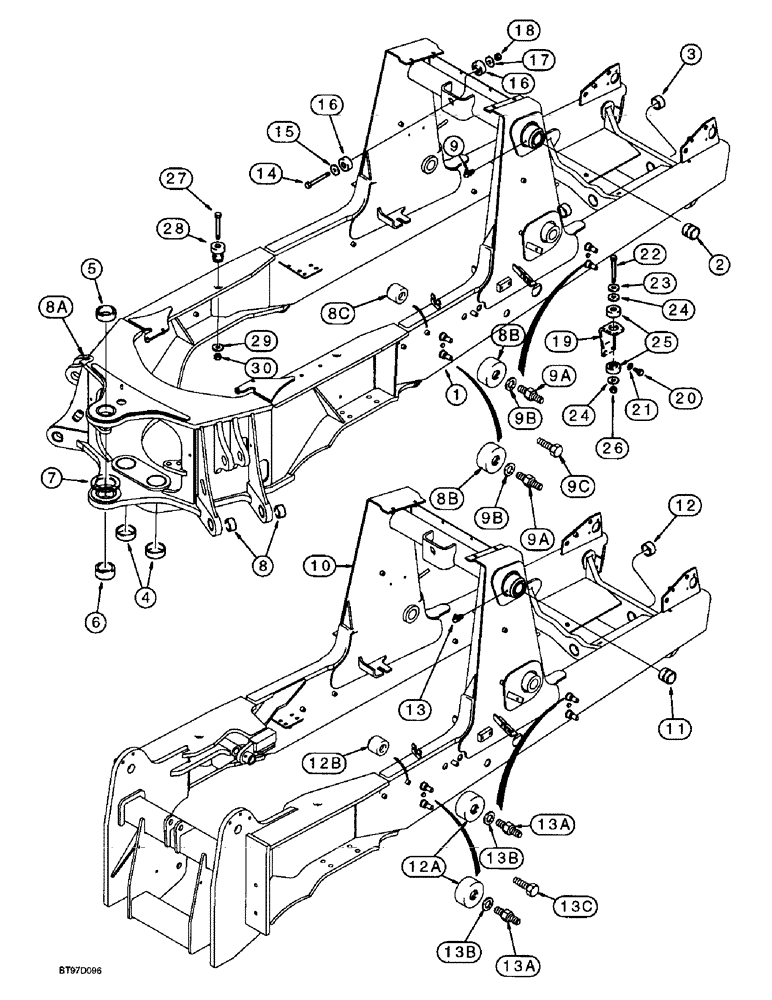

Запчасти Case 580L (9-078) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

243417A1

CHASSIS

580L loader backhoe, integral, Replaces: 108603A1 chassis, Incl. Ref. 2-8C

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

Loader frame pivot, 580L chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

Front axle pivot, 580L chassis

2шт.

4

192559A1

BUSHING

80 mm ID, swing cylinder pivot, 580L chassis

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

70 mm ID, upper, backhoe frame, swing tower mounting, 580L chassis

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

70 mm ID, lower, backhoe frame, swing tower mounting, 580L chassis

1шт.

7

D144112

SPACER

93 x 135 x 6.5 mm, bearing, welds to frame108603A1 chassis, 580L chassis

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm, 243417A1 chassis, 580L chassis

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

Lower, side, backhoe frame, at stabilizer leg mounting, 580L chassis

4шт.

8a

D88417

CAGE ASSY.

Nut, welded to chassis frame, 580L chassis

1шт.

8b

185927A1

BOSS

20 mm, tank mounting, welded to chassis frame, 580L chassis

4шт.

8c

185356A1

BOSS

10 mm, welded to chassis frame, 580L chassis

7шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Loader frame pivot, 580L chassis

2шт.

9a

253737A1

STUD,M20 - 2.5 x 89mm

BOLT special, if used, 580L chassis

8шт.

9b

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

WASHER flat, 22 x 37 x 4 mm, hardened, if used, 580L chassis

8шт.

9c

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

If used, 580L chassis

4шт.

10

243416A1

CHASSIS

570LXT loader landscaper, Replaces 130225A1 chassis, Incl. Ref. 11-12B

1шт.

11

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

Loader frame pivot, 570LXT chassis

2шт.

12

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

Front axle pivot, 570LXT chassis

2шт.

12a

185927A1

BOSS

20 mm, tank mounting, welded to chassis frame, 570LXT chassis

4шт.

12b

185356A1

BOSS

10 mm, welded to chassis frame, 570LXT chassis

7шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

570LXT chassis

2шт.

13a

253737A1

STUD,M20 - 2.5 x 89mm

BOLT special, if used, 570LXT chassis

8шт.

13b

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

WASHER flat, 22 x 37 x 4 mm, hardened, if used, 570LXT chassis

8шт.

13c

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

If used, 570LXT chassis

4шт.

REF

INSTRUCTION

Operator Compartment Pod Mounts

1шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

15

495-81259

WASHER,21/32" x 2" x .238"

1шт.

16

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, upper, firewall

2шт.

17

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Flat, special

1шт.

18

829-1416

NUT,M16, Cl 10

1шт.

19

141249A1

SUPPORT

BRACKET mounting, frame, RH and LH

2шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

22

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

23

495-81259

WASHER,21/32" x 2" x .238"

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Flat, special

4шт.

25

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, lower, front

4шт.

26

829-1416

NUT,M16, Cl 10

2шт.

27

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT special

2шт.

28

A141451

SHOCK ABSORBER

MOUNT rubber, frame, rear

2шт.

29

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Flat, special

2шт.

30

829-1416

NUT,M16, Cl 10

2шт.
