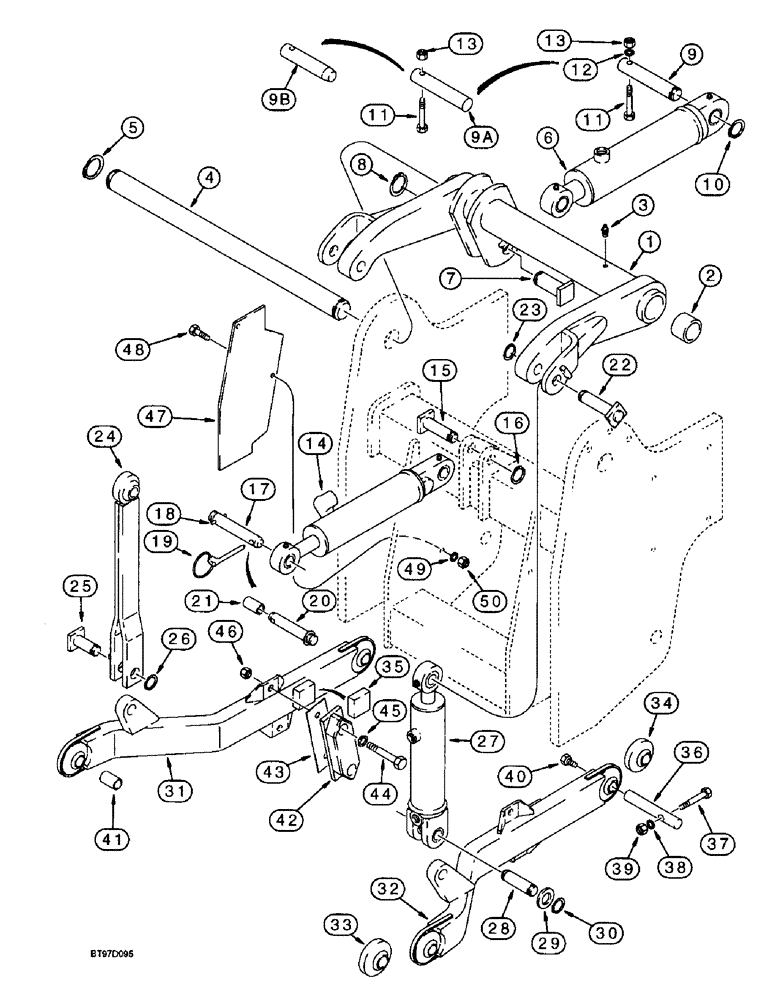

Запчасти Case 580L (9-068) - THREE-POINT HITCH FRAME, DRAFT ARMS,, LINKAGE, AND CYLINDER MOUNTING 570LXT MODEL (09) - CHASSIS/ATTACHMENTS

1

130113A1

FRAME ASSY

TUBE rockshaft, Includes: Ref. 2

1шт.

2

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

tube

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, straight

1шт.

4

130228A1

PIN,44.45mm OD x 743mm L

SHAFT three point hitch mounting

1шт.

5

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Rockshaft #175, Ext

2шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY lift, for correct assembly and components, see Figure 8-140 or 8-141A

1шт.

7

199243A1

PIN,31.8mm OD x 96.5mm L

mounting, lift cylinder rod end

1шт.

8

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

1шт.

9

199274A1

PIN

-ift cylinder closed end to chassis, no longer available, order 236702A1 pin

1шт.

9a

236702A1

PIN,31.7mm OD x 168.5mm L

lift cylinder closed end to chassis, if used

1шт.

9b

244356A1

PIN

lift cylinder closed end to chassis, if used

1шт.

10

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin, Used with ref 9 pin #125, Ext

1шт.

11

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.5 x 70 mm, Replaces: 814-10060 60 mm

1шт.

12

892-11010

LOCK WASHER,M10

No longer used, Not required M10

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Replaces 829-1410 hex nut M10 x 1.5, Cl 8

1шт.

14

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

CYLINDER ASSEMBLY 64, 2-1/2 ID x 178 mm, 7 inch stroke, pitch, parts list Figure 8-144

1шт.

138235A1R

REMAN-HYD CYLINDER

580L, 570LXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

15

199189A1

PIN,25.4mm OD x 104.1mm L

mounting, pitch cylinder closed end at mounting frame

1шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

1шт.

17

199280A1

PIN,25.35mm OD x 153mm L

pitch cylinder to equipment, for use with Category II hitch, 1 inch diameter, if used, Includes: Ref. 18

1шт.

18

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

19

D33805

PIN

locking

1шт.

20

D141292

PIN

pitch cylinder to equipment, for use with Category I hitch, 3/4 inch diameter, if used

1шт.

21

D141156

TUBE

BUSHING pivot, pitch cylinder rod eye, used with D141292 pin to adapt for use with Category I hitch, if used

1шт.

22

199296A1

PIN

mounting, tilt cylinder and strut, upper

2шт.

23

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.

24

D51276

STAND

STRUT stationary

1шт.

25

D51297

PIN

mounting, strut, lower

1шт.

26

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

1шт.

27

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

CYLINDER ASSEMBLY 64, 2-1/2 ID x 160 mm, 6-19/64 inch stroke, tilt, parts list Figure 8-142

1шт.

28

D30609

PIN,25.4mm OD x 95.25mm L

mounting, tilt cylinder closed end, lower

1шт.

29

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

30

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.

31

195611A1

LOWER LINK

ARM draft, left hand, Includes: Ref. 33-35 below

1шт.

32

195610A1

LOWER LINK

ARM draft, right hand, Includes: Ref. 33-35

1шт.

33

15-18

SPHERICAL BEARING,28.57mm ID x 80.43mm OD x 44.45mm W

self aligning, 1-1/8 inch pin size

1шт.

34

D149451

BALL JOINT

BUSHING - self-aligning, 1 inch pin size

1шт.

35

D146073

STOP

BLOCK wear

1шт.

36

139100A1

PIN,25.38mm OD x 164mm L

mounting, draft arm to chassis mounting frame

2шт.

37

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.5 x 70 mm, Replaces: 814-10060 60 mm long bolt used on some models

2шт.

38

892-11010

LOCK WASHER,M10

2шт.

39

825-1410

NUT,M10, Cl 8

2шт.

40

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

41

D140991

BUSHING,22.48mm ID x 28.57mm OD x 44.45mm L

draft arm to equipment, for use with Category I hitch, if used

2шт.

42

130127A1

BLOCK

RETAINER sway, draft arm

2шт.

43

130207A1

SHIM

wear, 1.6 mm thick, two per side

4шт.

44

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm

4шт.

45

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

46

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

47

D149504

LARGE PLATE

PLATE wear

2шт.

48

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 35 mm

4шт.

49

892-11010

LOCK WASHER,M10

4шт.

50

825-1410

NUT,M10, Cl 8

4шт.
