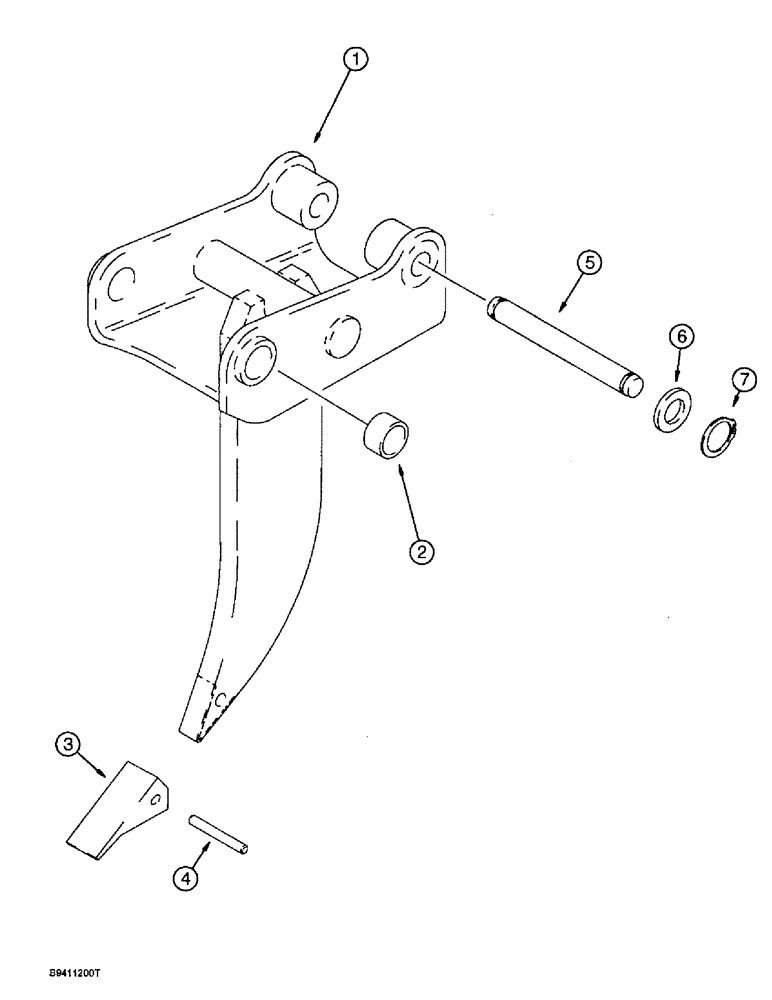

Запчасти Case 580L (9-064) - FROST POINT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D140679

BRACKET

POINT ASSEMBLY frost, backhoe, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

2

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

3

D83306

POINT

tooth

1шт.

4

D43417

PIN

tooth point

1шт.

5

D54218

PIN,38.1mm OD x 345.95mm L

link, to frost point

1шт.

6

495-81292

WASHER,1.56" ID x 3.25" OD x 0.18" Thk

flat, 1-9/16 x 3-1/4 x 3/16 inch

2шт.

7

D25279

SNAP RING,M35, Int

RING snap

2шт.
