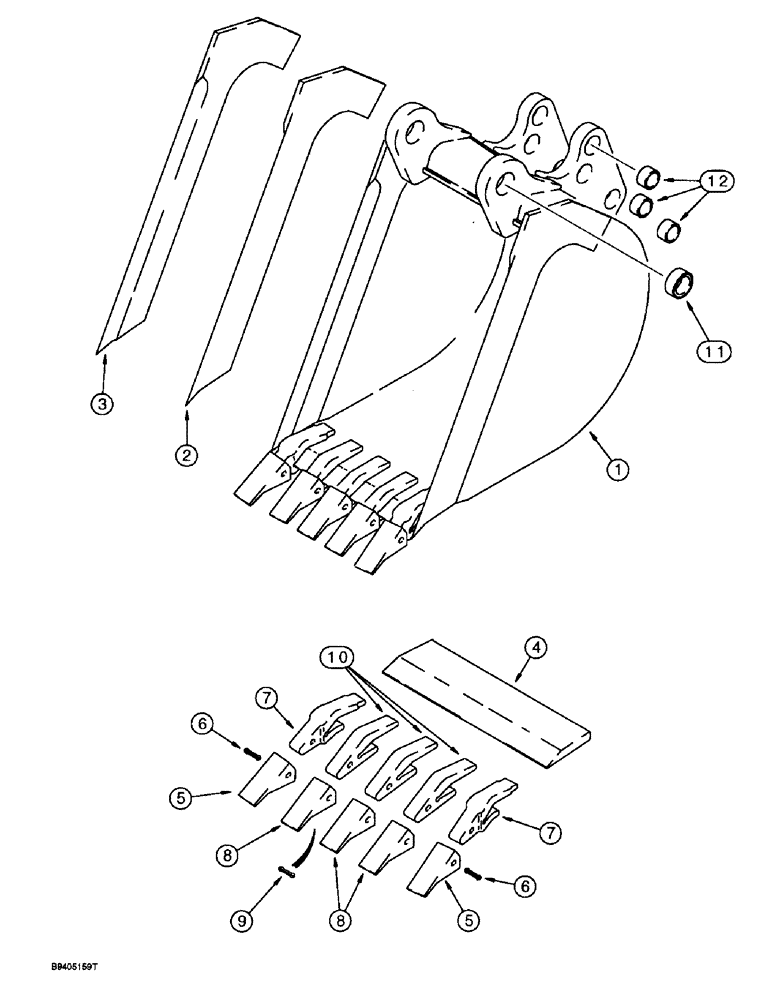

Запчасти Case 580L (9-062) - UNIVERSAL BACKHOE BUCKET, 610 MM (24 INCH) WIDE, 610 MM (24IN) WIDE (09) - CHASSIS/ATTACHMENTS

1

141232A1

BUCKET

ASSEMBLY high capacity trenching, with 5 teeth, order from Machinery Price List, 610 mm, 24 inch wide, Includes: Ref. 2-4

1шт.

2

141234A1

EDGE, CUTTING

EDGE cutting, right hand side, bucket

1шт.

3

141233A1

EDGE, CUTTING

EDGE cutting, left hand side, bucket

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE cutting, center, 610 mm, 24 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
