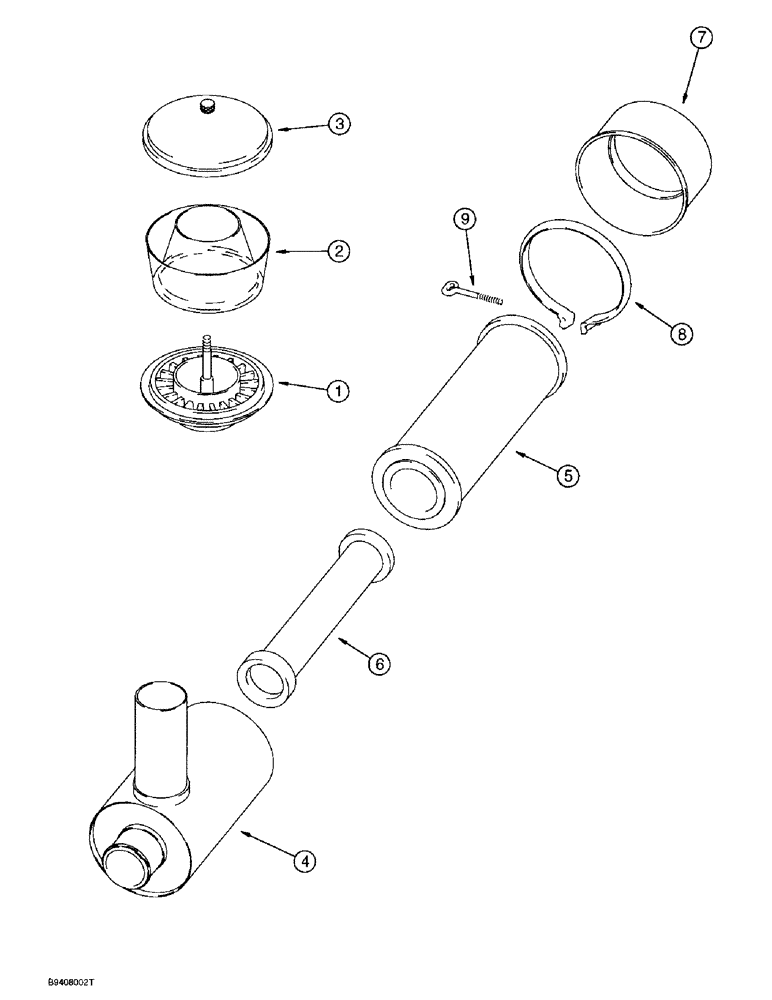

Запчасти Case 580L (2-008) - AIR CLEANER AND PRECLEANER ASSEMBLIES (02) - ENGINE

193867A1

PRECLEANER

ASSEMBLY air, Replaces: P/N A24391 precleaner, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Precleaner assembly

1шт.

2

365413R1

BOWL

Precleaner assembly

1шт.

3

365412R91

COVER

Precleaner assembly

1шт.

3a

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP adjusting, 2-9/16 - 3-1/2 inch diameter, not shown, P/N 193867A1, Precleaner assembly

1шт.

128783A1

AIR CLEANER

CLEANER ASSEMBLY air, engine, Inlcudes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING air cleaner, Air cleaner assembly

1шт.

5

128781A1

AIR FILTER

ELEMENT primary, Air cleaner assembly

1шт.

6

128782A1

AIR FILTER

ELEMENT secondary, Air cleaner assembly

1шт.

7

142540A1

FILTER COVER

COVER end, Air cleaner assembly

1шт.

8

142539A1

CLAMP,168.28mm

housing to end cover, Air cleaner assembly

1шт.

9

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

eye, special, Air cleaner assembly

1шт.
