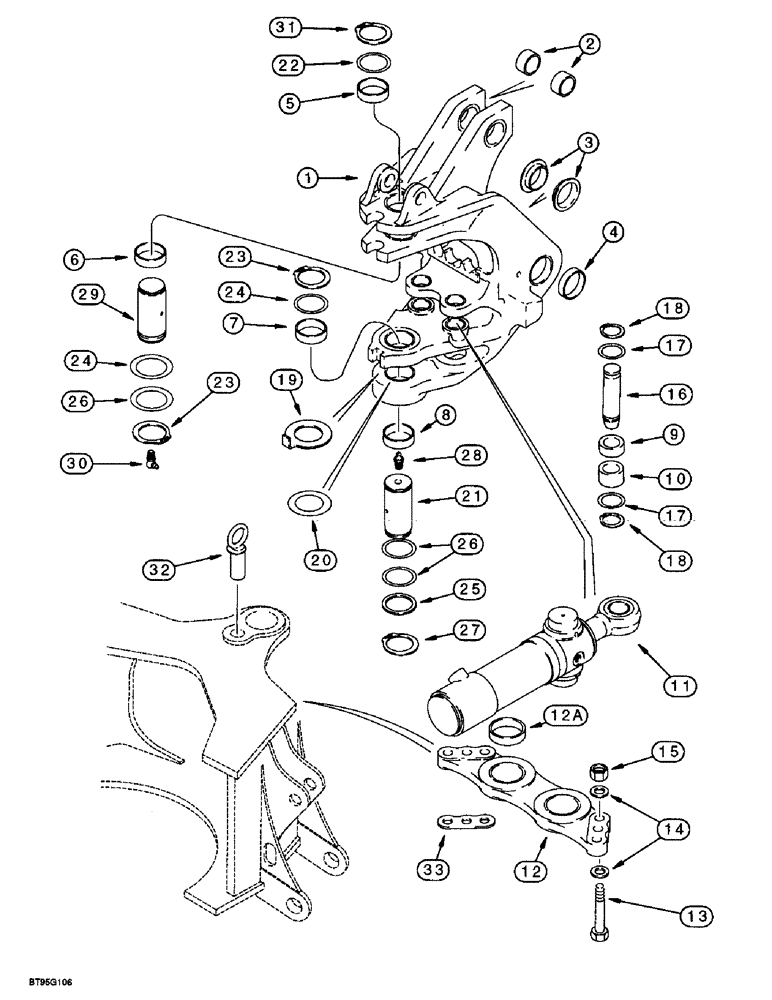

Запчасти Case 580L (9-034) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

129882A1

CASING

TOWER ASSEMBLY backhoe swing, Includes: Ref. 2-10

1шт.

2

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long, boom cylinder pivot

2шт.

3

121778A1

BUSHING,70.19mm ID x 94mm OD x 30mm L

inner, boom pivot

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

outer, boom pivot

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

upper, swing tower pivot

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

upper, tower pivot

1шт.

7

D151073

BUSHING,70.19mm ID x 86mm OD x 34mm L

tower pivot

1шт.

8

D151074

BUSHING,70.19mm ID x 86mm OD x 28mm L

70 x 86 x 28 mm long, lower

1шт.

9

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

lower, swing cylinder pivot

2шт.

10

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

upper, swing cylinder pivot

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY swing, for correct assembly and components, see Figures 8-130 - 8-131E

2шт.

12

198976A1

PLATE

Bracket, Swing cylinder to frame, Replaces 119501A1 bracket, Incl Ref 12A

1шт.

12a

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 mm ID, cylinder pivot

2шт.

13

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

6шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

12шт.

15

829-1420

NUT,M20, Cl 10

6шт.

16

135247A1

PIN

swing cylinder rod end to swing tower

2шт.

17

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

4шт.

18

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

4шт.

19

243084A1

LOCK WASHER,72mm ID x 146mm OD x 5mm Thk

bearing, special, 5 mm thick, swing tower, top of lower chassis plate, Replaces: D136699 6 mm thick washer

1шт.

20

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

2.05 mm, .08 inch thick, bottom of lower chassis plate

1шт.

21

D151065

PIN,70mm OD x 152mm L

Lower, swing tower to frame, grease fitting mounts in top of pin

1шт.

22

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 x 83 x 2.0 mm

1шт.

23

800-40070

SNAP RING,M70 Ext

RING external retaining, No. 70, pin retaining

2шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Upper 3.05mm Thk

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 x 83 x 2.0 mm, lower

1шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD) 1.57mm Thk

1шт.

27

800-40065

SNAP RING,M65, Ext

RING external retaining, No. 65, pin retaining, lower

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

29

132890A1

PIN

- swing tower to frame, upper

1шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

31

800-40065

SNAP RING,M65, Ext

RING external retaining, No. 65, pin retaining

1шт.

32

D149239

PIN

swing stop, without snap ring

1шт.

33

197718A1

SHIM

swing cyinder spacer, use as required between bracket and ear of main frame, shims may be required on one end or both ends of bracket, if used

1шт.
