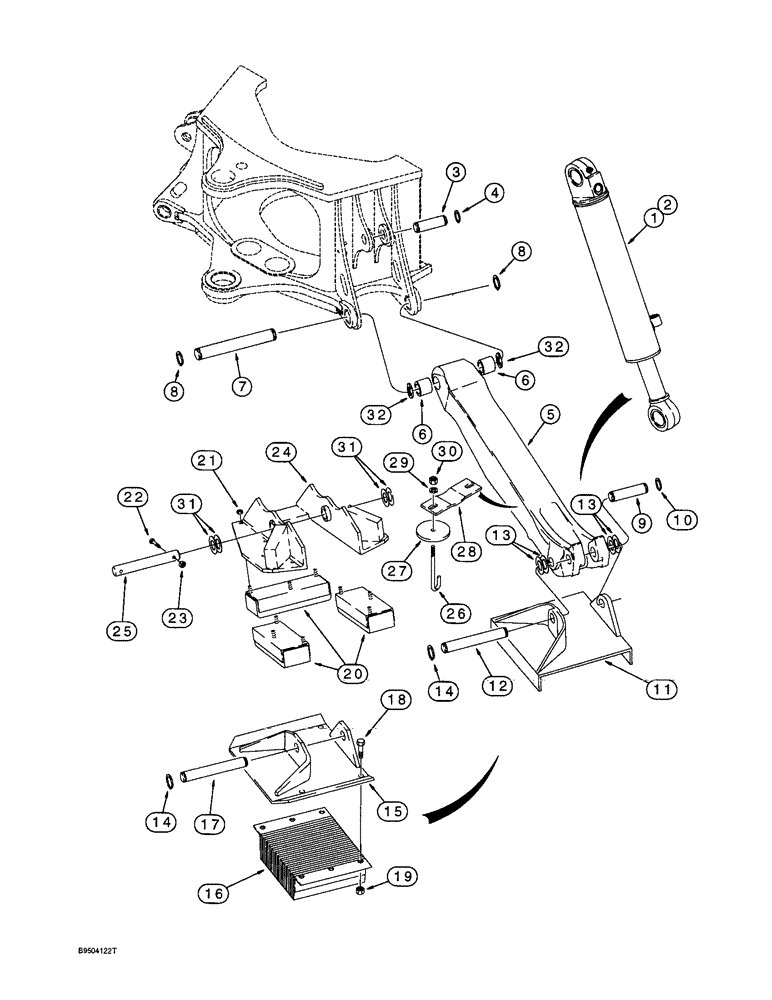

Запчасти Case 580L (9-032) - BACKHOE STABILIZERS, PLATES AND PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY stabilizer, right hand, for correct assembly and components, see Figure 8-128 or 8-129A

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY stabilizer, left hand, for correct assembly and components, see Figure 8-128 or 8-129A

1шт.

3

D38907

PIN,1.75" OD x 5 5/16 L

stabilizer cylinder frame

2шт.

4

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

5

D133428

STABILIZER

LEG stabilizer, Includes: Ref. 6

2шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

leg to frame

2шт.

7

121665A1

PIN,44.4mm OD x 308mm L

Stabilizer leg frame

2шт.

8

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

9

D26002

PIN,38.1mm OD x 187.32mm L

stabilizer cylinder leg

2шт.

10

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

11

D88427

PLATE

stabilizer, cleated, if used

2шт.

12

D28648

PIN,1.5" OD x 10 7/16" L

D88427 stabilizer plate leg

2шт.

13

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer

1шт.

14

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

15

D142519

SHOE (ASSY)

PLATE stabilizer, street or cemetery, if used

2шт.

16

D61368

PAD

Rubber, if used

2шт.

17

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN 9-3/8 inch, 238 mm long, D142519 plate leg

2шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

19

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

186405A1

SKID/SHOE

PLATE ASSEMBLY stabilizer flip over, if used, Includes: Ref. 20-30

2шт.

20

D142314

SKID/SHOE

PAD rubber - Use with 189955A1

3шт.

20

395753A2

PAD, RUBBER

PAD rubber - Use with 386000A2

2шт.

21

231-4247

LOCK NUT,7/16"-14, GB

NUT hex, self locking, 7/16 inch NC

9шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

23

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8 inch NC

2шт.

24

189955A1

SOLE

PLATE stabilizer, flip over (Uses 3 Rubber Pads)

1шт.

24

386000A2

PAD

PLATE stabilizer, flip over (Uses 2 Rubber Pads)

1шт.

25

D149033

PIN,38.1mm OD x 323.5mm L

323.5 mm (12-3/4 inch) long, Plate to stabilizer leg

1шт.

26

190035A1

BOLT,J, 3/8" - 16 x 6", Gr 2

BOLT J-type

2шт.

27

190967A1

LARGE PLATE

PAD rubber, round

2шт.

28

190036A1

LARGE PLATE

PLATE steel

1шт.

29

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8 inch NC

2шт.

31

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer

1шт.

32

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

1шт.
