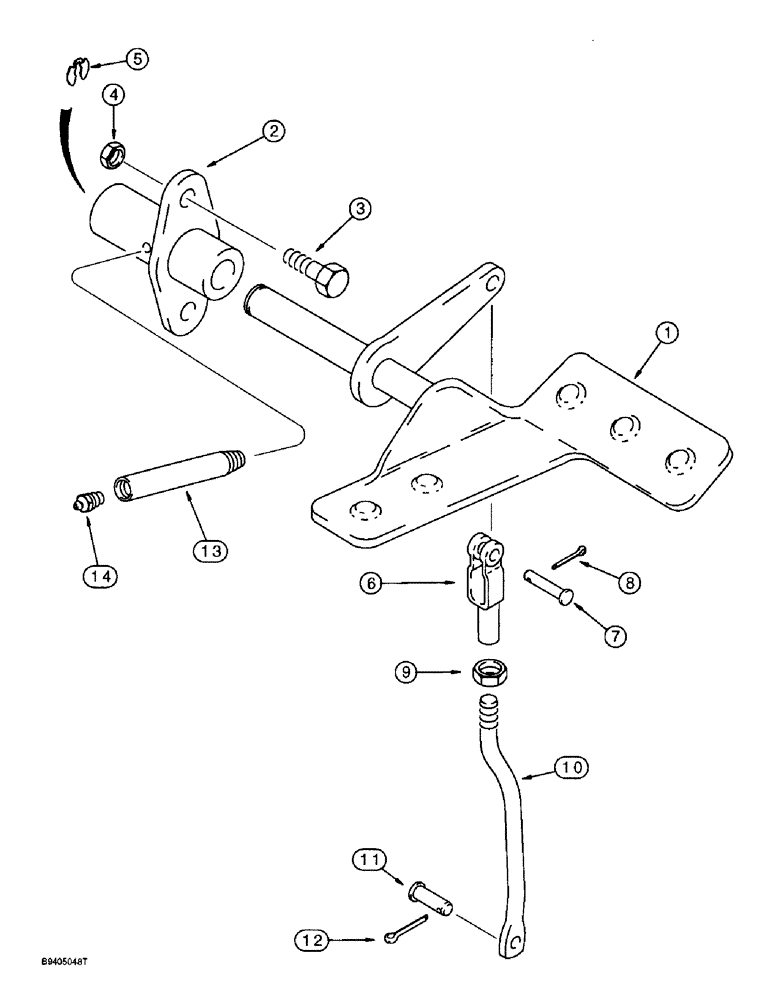

Запчасти Case 580L (9-030) - BACKHOE CONTROLS WITH HAND SWING, PARTS USED WITH EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

179029A1

PEDAL

extendahoe control, right hand

1шт.

2

126918A1

SUPPORT

Pedal, with hole for tube and grease fitting

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

5

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining, clip ring, special

1шт.

6

D134900

CLEVIS,3/8-24"

special, 3/8 inch

1шт.

7

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN clevis, 3/8 x 7/8 inch, hardened

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

1шт.

10

D140610

ROD

extendahoe control, used with 180378A1 control tower support, see Ref. 1 support on Figure 9-018

1шт.

10

185976A1

ROD

extendahoe control, used with 185975A1 control tower support, see Ref. 1 support on Figure 9-019A

1шт.

11

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rod-valve

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

D150032

TUBE

pedal lube

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.
