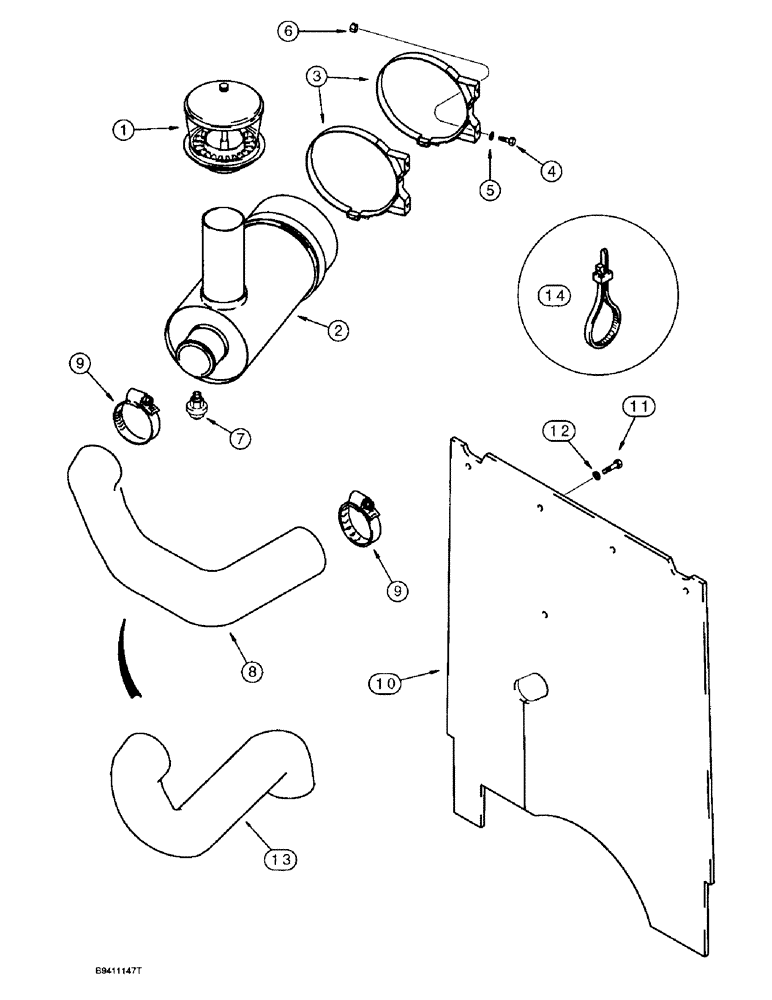

Запчасти Case 580L (2-006) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

193867A1

PRECLEANER

ASSEMBLY air, see Figure 2-008, Replaces: P/N A24391 precleaner

1шт.

2

128783A1

AIR CLEANER

CLEANER ASSEMBLY air, engine, see Figure 2-008

1шт.

3

L113910

CLAMP

air cleaner mounting, includes hardware

2шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

8

144268A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200

- Air Cleaner to Engine, Models with Turbocharged Engine 76.20 mm ID, SAE J200

1шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP adjusting, 3-1/16 - 4 inch diameter

2шт.

10

144635A1

LARGE PLATE

PAD heat and noise reduction

1шт.

11

806-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

hex, self-locking, 10-1.5 x 25 mm, class 10.9

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

13

144269A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200

Air Cleaner to Engine, Models without turbocharged engine 76.20 mm ID, SAE J200

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.
