(9-028) - BACKHOE CONTROLS W/HAND SWING,LOWER CONTROL LEVERS W/NONEXTEND DIPPER USED W/180378A1 CONTROL SUPP.

Запчасти Case 580L (9-028) - BACKHOE CONTROLS W/HAND SWING,LOWER CONTROL LEVERS W/NONEXTEND DIPPER USED W/180378A1 CONTROL SUPP. (09) - CHASSIS/ATTACHMENTS

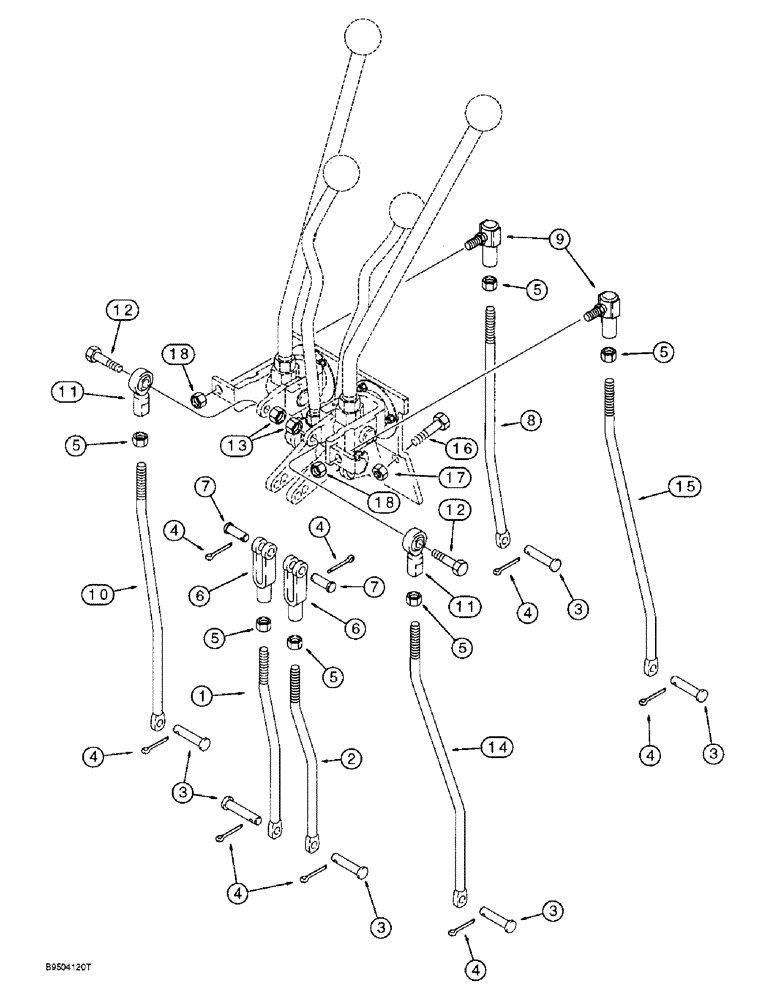

Схема запчастей Case 580L - (9-028) - BACKHOE CONTROLS W/HAND SWING,LOWER CONTROL LEVERS W/NONEXTEND DIPPER USED W/180378A1 CONTROL SUPP. (09) - CHASSIS/ATTACHMENTS
18
12
4
18
10
7
17
8
3
7
12
14
4
4
4
6
11
4
3
5
11
3
5
1
15
5
3
9
4
13
5
6
5
2
5
16
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

115744A1

ROD

stabilizer, right hand stabilizer

1шт.

2

115743A1

ROD

stabilizer, lefthand stabilizer

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

2шт.

8

125779A1

ROD

bucket control

1шт.

9

D149295

BALL JOINT,3/8"

JOINT ball, control rod

2шт.

10

182636A1

ROD

dipper control

1шт.

11

D136773

BALL JOINT

JOINT ball, 3/8 inch NF, control rods

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

182635A1

ROD

boom control

1шт.

15

125776A1

ROD

swing control

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

NUT hex, self locking, 3/8 inch NF

2шт.
