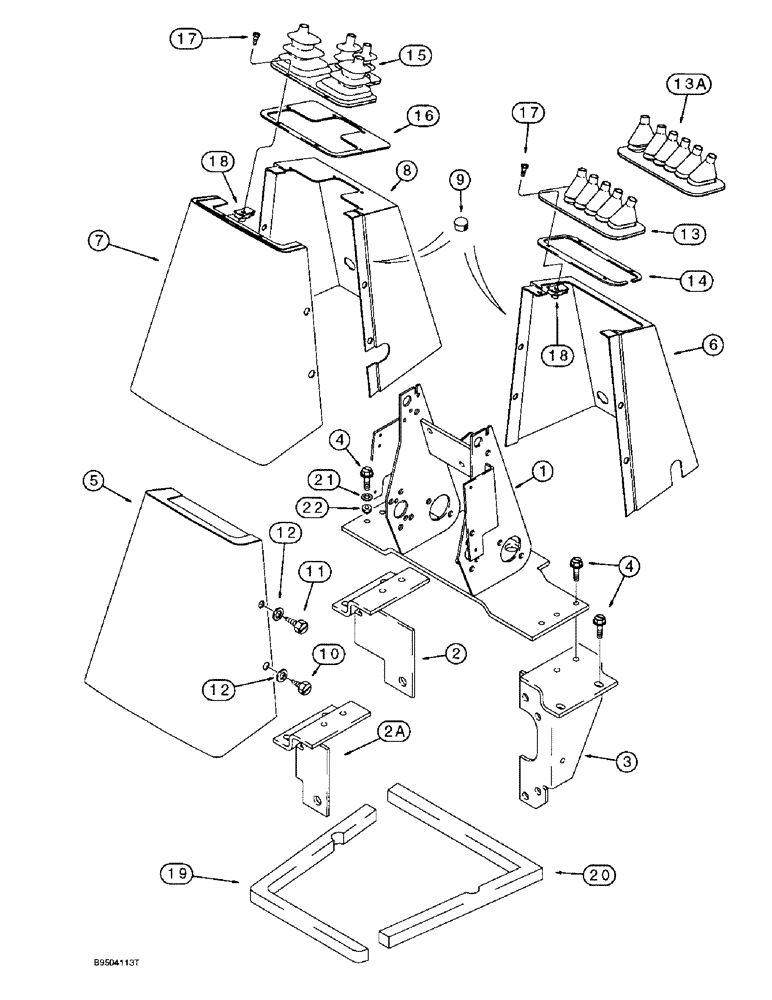

Запчасти Case 580L (9-018) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

180378A1

BRACKET

SUPPORT backhoe control mounting, without 3 mounting holes in base for a seal support bracket, see Ref.1 support and Ref. 11 seal support bracket on Fig. 9-19B

1шт.

Used with control rods on Figures 9-020, 9-024, 9-026, 9-028 and 9-030.

1шт.

2

180376A1

SUPPORT

BRACKET mounting, left hand, 6 spool valve

1шт.

2a

180402A1

SUPPORT

BRACKET mounting, left hand, 7 spool valve

1шт.

3

121519A1

SUPPORT

BRACKET mounting, right hand, valve mounting

1шт.

4

183586A1

BOLT

BOLT special, includes washer, 10 x 35 mm

8шт.

5

128403A1

REAR COVER

COVER rear, console, used on all models with foot swing

1шт.

6

130480A1

COVER

console, front, used on all models with foot swing

1шт.

If dealer has auxiliary hydraulics., dealer needs to cut hole in side of cover. See catalog for layout to cut hole.

1шт.

7

128401A1

COVER

console, rear, used on all models with hand swing

1шт.

8

130479A1

COVER

front, console, used on all models with hand swing

1шт.

9

353-411

PLUG,Dome, 1.000" hole, Nylon

1 used with 130479A1 console 2 used with 130480A1 console cover Dome, 1.000" hole, Nylon

1-2шт.

10

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW self tapping, hex washer head, 1/4 NC x 1/2 inch, lower

2шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head,, 1/4 NC x 3/4 inch, upper

3шт.

12

195-140

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

5шт.

13

D149866

BOOT

used with 130480A1 console cover with 5 control levers

1шт.

13a

D149867

BOOT

used with 130480A1 console cover with 6 control levers

1шт.

14

136822A1

RETAINER

boot, used with Ref. 13 and 13A

1шт.

15

D149868

BOOT

Used with 130479A1 console cover with 4 control levers

1шт.

16

136824A1

LARGE PLATE

RETAINER boot, used with Ref. 15 only

1шт.

17

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

(Replaces 140-107 3/4" long screw), (4) used with 136822A1 retainer, (6) used with 136824A1 retainer Cross Pan Hd, #10-24 x 1/2"

4-6шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

(4) used with 136822A1 retainer, (6) used with 136824A1 retainer Tinn, U, #10-24

4-6шт.

19

104540A1

SEALING STRIP,25mm W x 641mm L x 25.4mm Thk

foam, adhesive backed, control mounting support, if used

1шт.

20

104541A1

SEALING RING

foam, adhesive backed, control mounting support, if used

1шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

22

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

Mount - Console

2шт.
