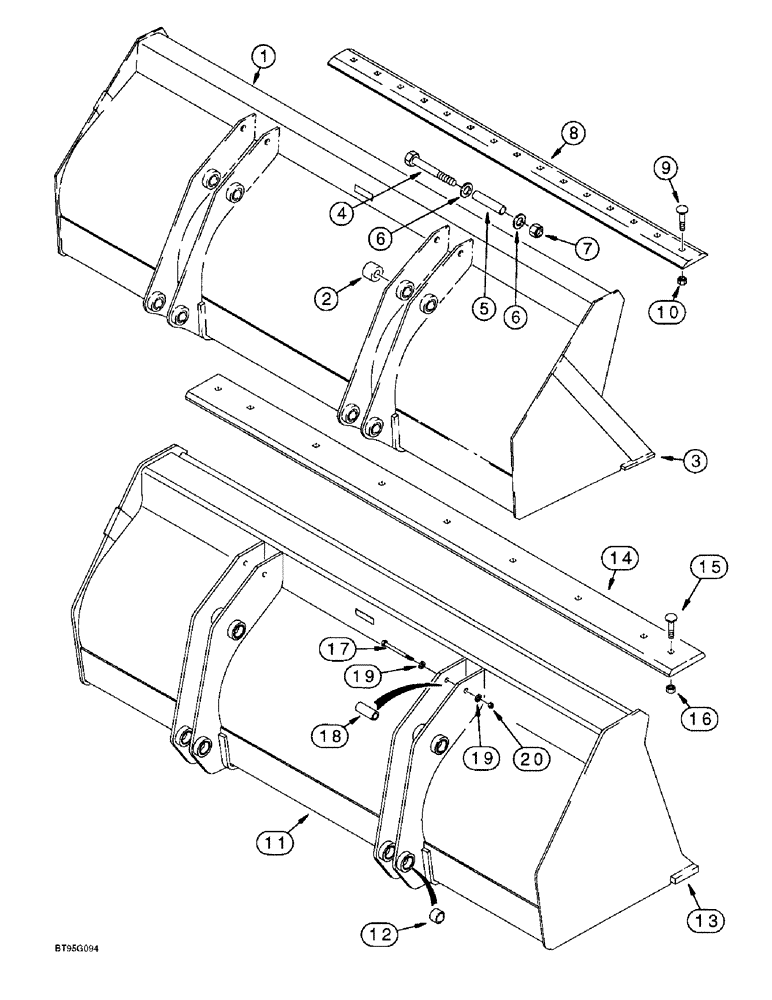

Запчасти Case 580L (9-015A) - LOADER LONG LIP BUCKET (09) - CHASSIS/ATTACHMENTS

142687A1

BUCKET

ASSEMBLY loader, without bucket teeth, order from Machinery Price List, 2362 mm, 93 inch wide, 580L models only, no longer available, order 198539A1 bucket, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

3

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

EDGE, CUTTING, Weld-on, blade mounting

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 - 2.5 x 160 mm, class 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

chain hook

2шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, M20 x 2.5, Cl 8

2шт.

8

185506A1

CUTTING EDGE

EDGE, CUTTING, Bolt-On

1шт.

9

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

10шт.

10

29-1012

NUT,3/4"-10, G8

hex, 3/4 inch NC, grade 8

10шт.

198539A1

BUCKET

ASSEMBLY loader, without bucket teeth, order from Machinery Price List, 2362 mm, 93 inch wide, if used, Includes: Ref. 11-20

1шт.

11

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

12

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

13

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

EDGE, CUTTING, Weld-on, blade mounting

1шт.

14

185506A1

CUTTING EDGE

EDGE, CUTTING, Bolt-On, 93", 2362 mm bucket

1шт.

15

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

10шт.

16

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

10шт.

17

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 - 2.5 x 160 mm, class 10.9

2шт.

18

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

chain hook

2шт.

19

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, M20 x 2.5, Cl 8

2шт.
