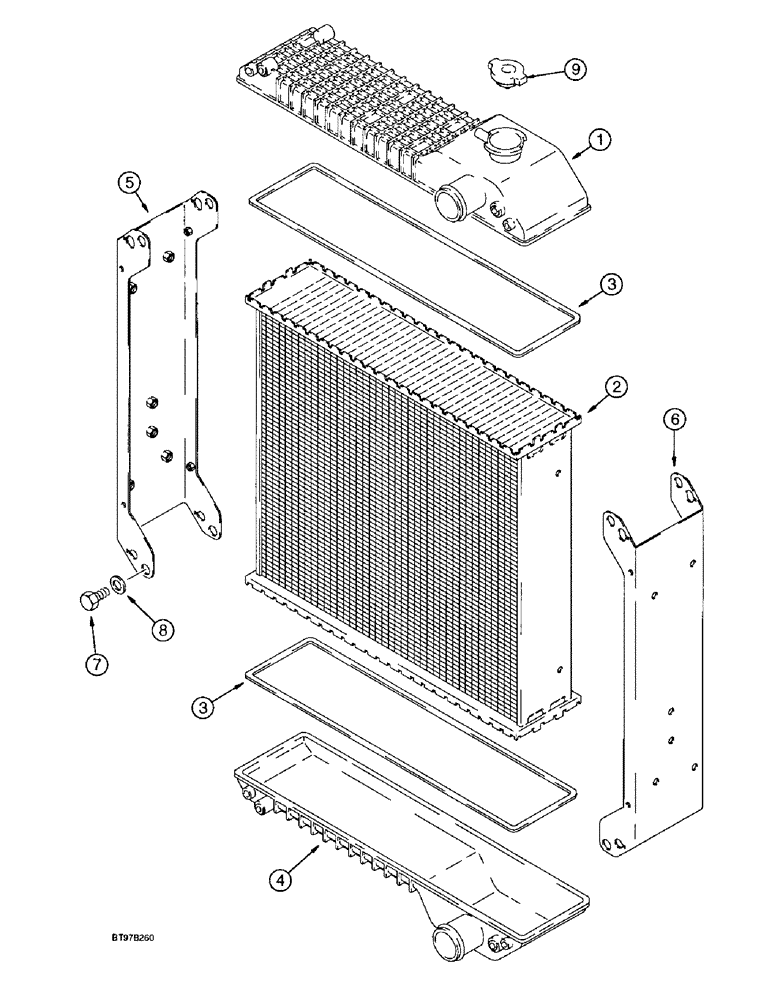

Запчасти Case 580L (2-004) - RADIATOR ASSEMBLIES (02) - ENGINE

129264A1

RADIATOR

ASSEMBLY, engine coolant, 4 row, no longer available, order P/N234876A1 radiator, Includes: Ref. 1 - 9

1шт.

1

175161A1

TANK

TANK upper

1шт.

2

181148A1

CORE

CORE radiator, 4 row

1шт.

3

175163A1

GASKET,3.3mm Thk

core, upper and lower

2шт.

4

175162A1

RESERVOIR

TANK lower

1шт.

5

175164A1

SUPPORT

BRACKET left-hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET right-hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

8шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

234876A1

RADIATOR

ASSEMBLY, engine coolant, 4 row, if used, used with P/N 139783A1 or 231280A1 oil cooler, see Figure 6-020 for cooler, Includes: Ref. 1 - 10

1шт.

1

175161A1

TANK

TANK upper

1шт.

2

181148A1

CORE

CORE radiator, 4 row

1шт.

3

175163A1

GASKET,3.3mm Thk

core, upper and lower

2шт.

4

175162A1

RESERVOIR

TANK lower

1шт.

5

175164A1

SUPPORT

BRACKET left-hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET right-hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

8шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL foam, side channel brackets, not shown

2шт.

239739A1

RADIATOR

ASSEMBLY, engine coolant, heavy duty, 5 row, if used, used with P/N 235811A1 heavy duty oil cooler, see Figure 6-021A for cooler, Includes: Ref. 1 - 11

1шт.

1

175161A1

TANK

TANK upper

1шт.

2

257434A1

CORE

CORE radiator, 5 row

1шт.

3

175163A1

GASKET,3.3mm Thk

core, upper and lower

2шт.

4

175162A1

RESERVOIR

TANK lower

1шт.

5

175164A1

SUPPORT

BRACKET left-hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET right-hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

8шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL foam, side channel brackets, not shown

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL foam, corners, side channel brackets, not shown

4шт.
