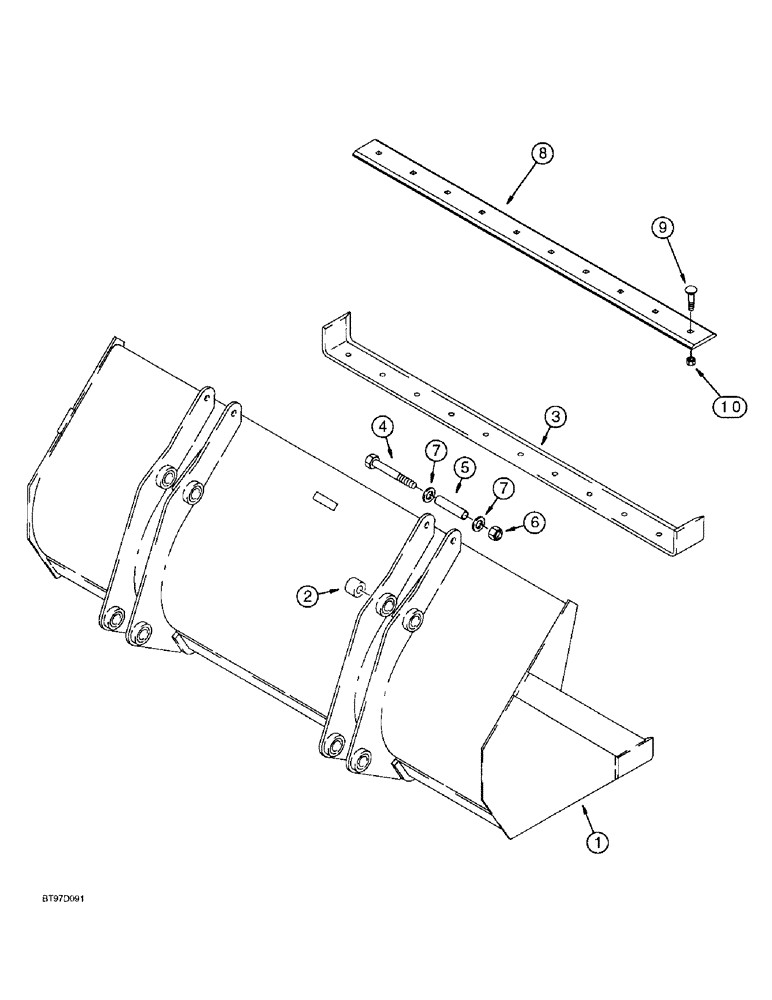

Запчасти Case 580L (9-014) - LOADER LONG LIP BUCKETS (09) - CHASSIS/ATTACHMENTS

196456A1

BUCKET ASSEMBLY loader, without bucket teeth, order from Machinery Price List, 2083 mm, 82 inch wide, no longer available, order 253125A1 bucket assembly, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

3

132988A1

CUTTING EDGE

cutting, center, 2083 mm, 82 inch bucket

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 - 2.5 x 160 mm, class 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

chain hook

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

8

112946A1

EDGE, CUTTING

EDGE cutting, center, 2083 mm, 82 inch bucket, bolt-on

1шт.

9

420-21232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT plow, 3/4 NC x 2 inch, grade 8

10шт.

10

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

10шт.

253125A1

BUCKET

ASSEMBLY loader, without bucket teeth, order from Machinery Price List, 2083 mm, 82 inch wide, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

3

132988A1

CUTTING EDGE

cutting, center, 2083 mm, 82 inch bucket

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 - 2.5 x 160 mm, class 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

chain hook

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

8

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

EDGE, CUTTING, Center, 2083 mm, 82 inch bucket, Bolt on, Replaced 112946A1

1шт.

9

420-21232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT plow, 3/4 NC x 2 inch, grade 8

10шт.

10

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

10шт.
