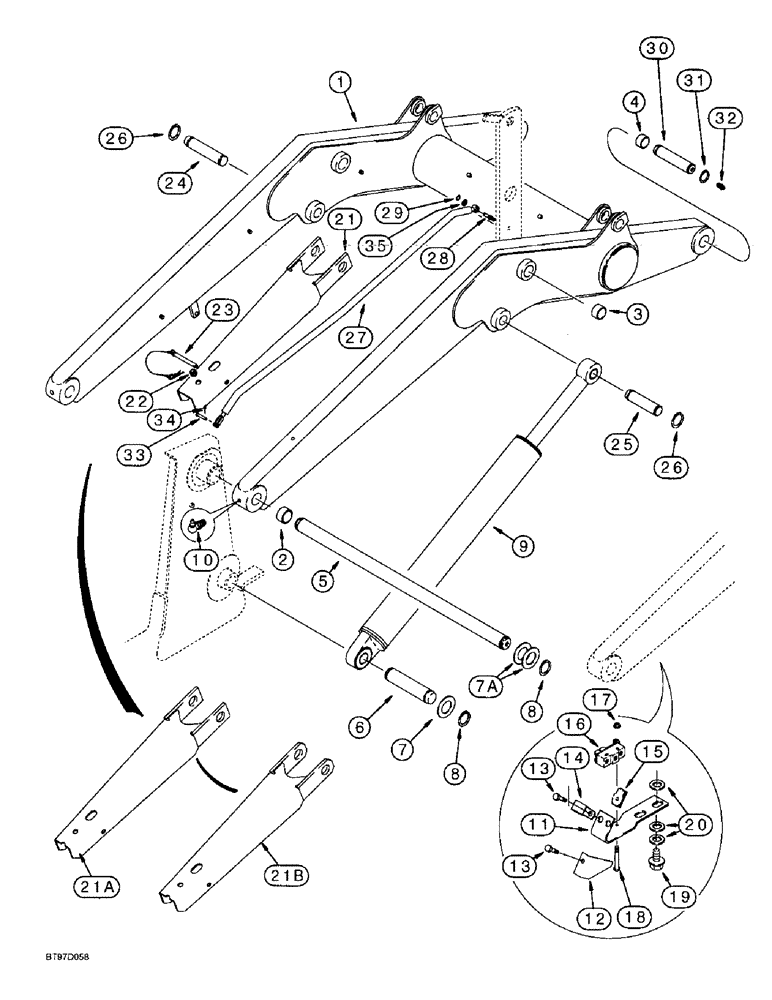

Запчасти Case 580L (9-010) - LOADER LIFT FRAME AND MOUNTING PARTS, LIFT CYLINDER, SUPPORT STRUT,RETURN-TO-DIG & ANTIROLLBACK (09) - CHASSIS/ATTACHMENTS

1

141324A1

ARM

FRAME loader lift, Includes: Ref. 2-4

1шт.

2

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

loader frame pivot

4шт.

3

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

Bucket cylinder link pivot, No longer included with frame, Purchase separately

4шт.

4

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

bucket mounting

4шт.

5

111522A1

PIN,50mm OD x 1113.4mm L

SHAFT loader lift frame pivot

1шт.

6

119129A1

PIVOT PIN

lift cylinder, closed end

2шт.

7

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

4шт.

7a

181842A1

WASHER,50.4mm ID x 76mm OD x 3.6mm Thk

special, hardened, install a minimum of onewasher per side

1шт.

8

800-44050

SNAP RING,M50, Ext

RING external retaining, No. 50, 50 mm

6шт.

9

131417A1

CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

ASSEMBLY 76 (3) ID x 766 mm, 30-5/32 inch stroke, loader lift, parts list Figure 8-122

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

11

128818A1

SUPPORT

BRACKET mounting, return to dig switch

1шт.

12

142524A1

PROTECTOR

COVER return to dig switch

1шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

14

A62209

CLAMP,5/16", Insul, 1/4" Bolt

P-type

1шт.

15

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

2шт.

16

D137363

SWITCH

, Serial Range: return-dig

1шт.

17

193-1003

NUT,Keps, w/LW,#6-32

hex, with external tooth lock washer, No. 6 NC

2шт.

18

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

19

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

hex flange, special, 10 x 15 mm

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.

21

113584A1

SUPPORT

STRUT support, loader frame, left-hand lift arm only, no longer available, order 242369A1 strut

1шт.

21a

199783A1

SUPPORT

STRUT support, loader frame, left-hand lift arm only, no longer available, order 242369A1 strut

1шт.

21b

242369A1

STRUT

support, loader frame, left hand lift arm only

1шт.

22

D121047

GROMMET

support strut

1шт.

23

104824A1

PIN,12.7mm OD

lock, Incl lanyard and hair pin

1шт.

24

118900A1

PIN,40mm OD x 179mm L

LH lift cylinder rod end and support strut, Mount tapered end to the outside

1шт.

25

113629A1

PIN,40mm OD x 155mm L

- 155 mm, 6-1/8 inch long, RH lift cylinder rod end

1шт.

26

800-44040

SNAP RING,M40, Ext

RING external retaining, No. 40, pin retaining

4шт.

27

182895A1

THREADED ROD

ROD antirollback, attaches to bucket cylinder link

1шт.

28

192815A1

PIN,1/2" - 13, 1.85" L

antirollback rod to bucket cylinder link, Replaces: 116138A1 pin

1шт.

29

103-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

30

118901A1

PIN,40mm OD x 180mm L

Loader lift frame to loader bucket

2шт.

31

800-44040

SNAP RING,M40, Ext

RING external retaining, No. 40, pin retaining

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

33

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN clevis, 3/8 x 7/8 inch, hardened

1шт.

34

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.
