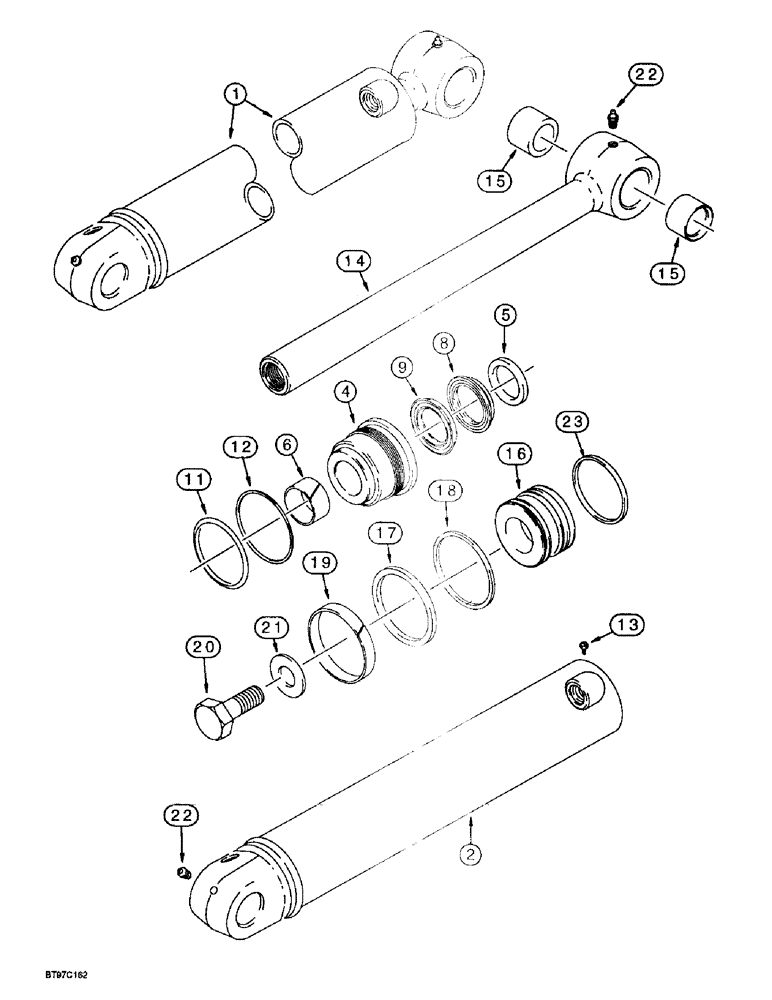

Запчасти Case 580L (8-135A) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

233114A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 108, 4-1/4 ID x 686 mm, 27 inch stroke, dipper, Includes: Ref. 2

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

233114A2R

REMAN-HYD CYLINDER

Reman For New P/N 233114A1

1шт.

1

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

233000A1

BARREL

TUBE cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4-6

1шт.

4

234141A1

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT - seal, NSS, order 234844A1 kit below, Includes: Ref. 8-9

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

8

1542929C1

SEAL,2.778mm OD

rod, NSS, order 234844A1 kit below

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

9

1542928C1

SEAL,2.275" ID

buffer, NSS, order 234844A1 kit below

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

11

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

175778A1

PISTON ROD

ROD ASSEMBLY piston, 2-1/4 inch, 57 mm diameter, cylinder, Includes: Ref. 15

1шт.

15

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long

2шт.

16

233110A1

PISTON

cylinder

1шт.

17

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

18

G110529

RING

backup, piston seal

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

19

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

20

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

hex, 1-3/8 NF x 3-1/2 inch, grade 8

1шт.

21

G32559

WASHER

flat, special, 1-3/8 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

23

233104A1

RING,103.36mm ID, Ext

piston, cast iron

1шт.

Part of Seal Kit, P/N 234844A1

1шт.

234844A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 8, 9, 11, 12, 17, 18, 19, and P/N 1542877C1, also a seal and wiper not used in this application, and an instruction sheet

1шт.
