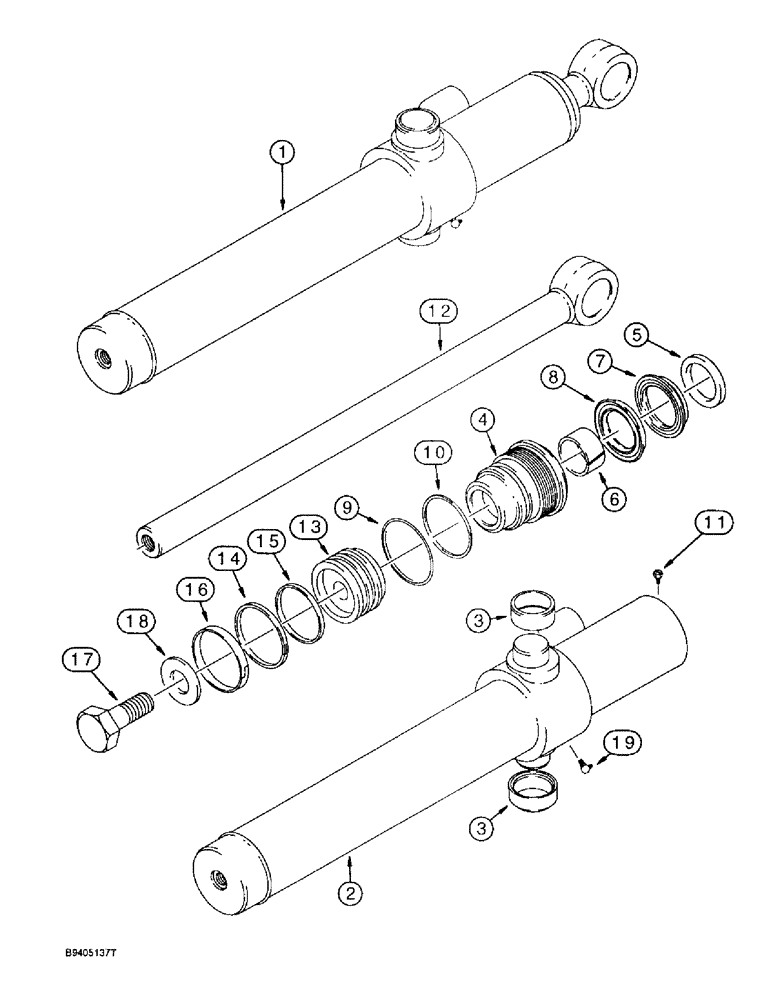

Запчасти Case 580L (8-124) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

175238A1

CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

ASSEMBLY 70, 2-3/4 ID x 522 mm, 20-9/16 inch stroke, bucket, left hand and right hand, Includes bushings in cylinder tube and without bushings at rod eye

2шт.

2

175239A1

TUBE,69.85 mm ID, 76.99 mm OD

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4-6

1шт.

4

175247A1

GLAND

cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 175251A1 below, Incl Ref 7-8

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

7

1542997C1

SEALING RING

rod, NSS

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

8

1542996C1

SEAL

buffer, NSS

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

110307A1

PISTON ROD

ROD piston, 38 mm, 1-1/2 inch diameter, without bushings in eye

1шт.

13

175250A1

PISTON,69.28mm Bore, 38.1mm Rod, 50.7mm W

cylinder

1шт.

14

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

piston, expandable, outer

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

15

G104439

RING

seal, piston seal

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

16

G105187

RING

wear, piston, piston

1шт.

Part of Seal Kit, P/N 175251A1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch, if used

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Replaces 219-36 fitting used on some models 90º, 1/8" NPT x .84" lg

1шт.

175251A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 14, 15, 16, and P/N 1542874C1

1шт.
