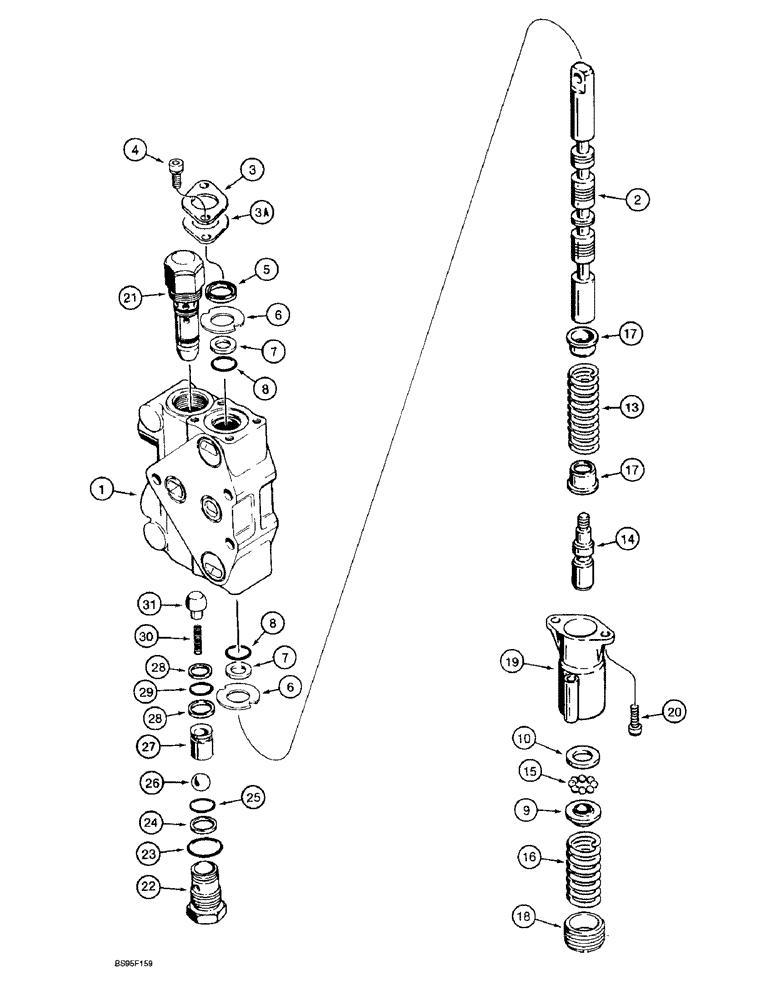

Запчасти Case 580L (8-116) - THREE-POINT HITCH CONTROL VALVE, AUXILIARY SECTION (08) - HYDRAULICS

224453A1

ELEMENT

SECTION ASSEMBLY hitch auxiliary, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

3

N8194

LARGE PLATE

PLATE retainer, seal, outer

1шт.

3a

N7030

LARGE PLATE

PLATE retainer, seal, inner

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

slotted, with split lockwasher, 1/4 NC x 7/8 inch

2шт.

5

N7029

SCRAPER

WIPER spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER seal

2шт.

N8880

SEAL

KIT seal, spool, Includes: Ref. 7-8

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING backup

2шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL lip

2шт.

9

224975A1

PLUNGER

RACE ball

1шт.

10

224976A1

WASHER

PLATE thrust

1шт.

13

224977A1

SPRING

centering, detent

1шт.

14

224979A1

VALVE POPPET

SCREW detent

1шт.

15

211-1007

BALL,7/32" Dia

Chrome alloy steel, Gr 24 7/32" Dia

12шт.

16

224978A1

SPRING

detent

1шт.

17

H267591

SPRING SEAT

SEAT spring

2шт.

18

224980A1

PLUG

CAP adjusting

1шт.

19

224974A1

COVER

CAP valve spool

1шт.

20

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

slotted, with split lockwasher, 1/4 NC x 5/8 inch

2шт.

21

224794A1

VALVE

ASSEMBLY circuit relief, upper port, 1000 psi, 6895 kPa, parts list Fig. 8-118

1шт.

H593616

VALVE

ASSEMBLY anti-cavitation, Includes: Ref. 22-31

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Seal Kit, P/N N8883

1шт.

24

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup

1шт.

Part of Seal Kit, P/N N8883

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N N8883

1шт.

26

211-1014

BALL,7/16" Dia

chrome alloy steel, 7/16 inch, grade 24

1шт.

27

NSS

NOT SOLD SEPARAT

SHUTTLE sleeve, anti-cavitation

1шт.

28

D88725

BACK-UP RING

RING backup

2шт.

Part of Seal Kit, P/N N8883

1шт.

29

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

Part of Seal Kit, P/N N8883

1шт.

30

H268730

SPRING

poppet

1шт.

31

D28576

VALVE POPPET

POPPET load check

1шт.

N8883

SEAL KIT

KIT seal, Includes:Ref. 23, 24, 25, 28, and 29

1шт.
