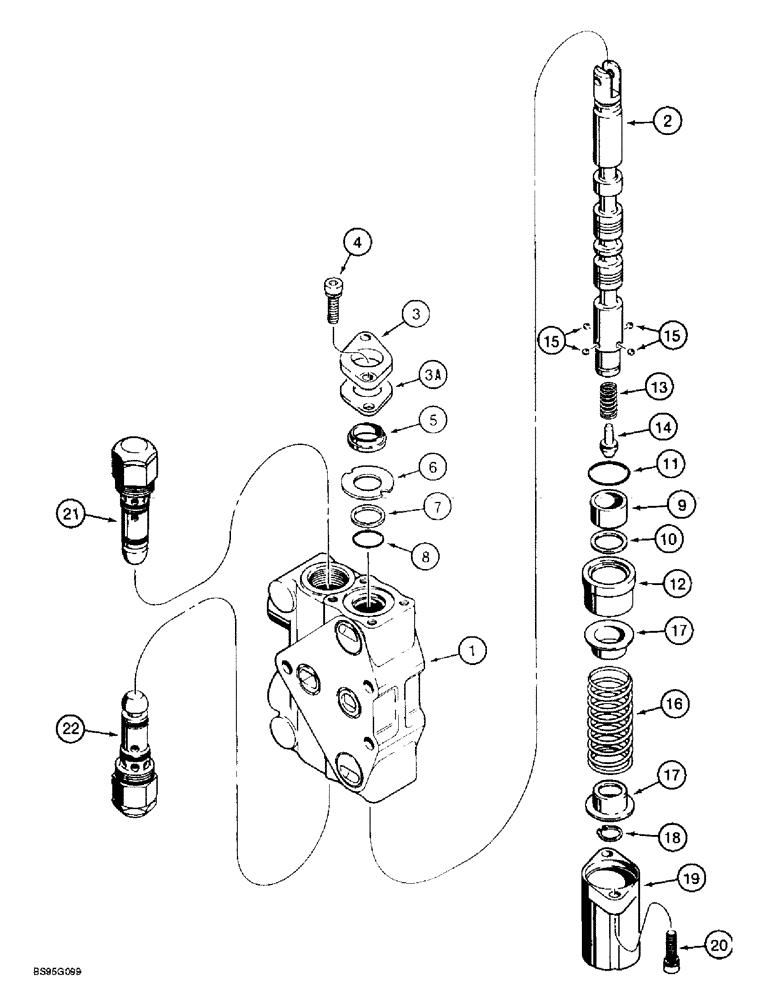

Запчасти Case 580L (8-112) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION WITH TWO CIRCUIT RELIEF VALVES (08) - HYDRAULICS

224455A1

HYD VALVE SECTION

SECTION ASSEMBLY hitch lift, with two circuit relief valves, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve section

2шт.

3

N8194

LARGE PLATE

PLATE retainer, seal, outer

1шт.

3a

N7030

LARGE PLATE

PLATE retainer, seal, inner

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

slotted, with split lockwasher, 1/4 NC x 7/8 inch

2шт.

5

N7029

SCRAPER

WIPER spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER seal

1шт.

N8880

SEAL

KIT seal, spool, Includes: Ref. 7-8

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING backup, spool O-ring, only one required

2шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL lip, only one required

2шт.

9

N7038

SLEEVE

spool

1шт.

10

N7036

SEALING RING

SEAL ring, square section

1шт.

11

S301098

O-RING,1.051" ID x 1.191" OD x 0.07"

detent sleeve

1шт.

12

N7034

SLEEVE VALVE

SLEEVE detent

1шт.

13

N7037

SPRING

detent

1шт.

14

N7035

VALVE POPPET

POPPET detent

1шт.

15

211-1007

BALL,7/32" Dia

Chrome alloy steel, Gr 24 7/32" Dia

4шт.

16

N7032

SPRING

centering, spool

1шт.

17

N7033

SEAT

spring

2шт.

18

100-1162

SNAP RING,#62, Ext

Ring, Snap, , lower spring seat #62, Ext

1шт.

19

N7031

COVER

CAP valve spool

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

slotted, with split lockwasher, 1/4 NC x 7/8 inch

2шт.

21

224841A1

VALVE

ASSEMBLY circuit relief, upper port, 2550 psi, 17237 kPa, parts list Fig. 8-118

1шт.

22

224794A1

VALVE

ASSEMBLY circuit relief, lower port, 1000 psi, 6895 kPa, parts list Fig. 8-118

1шт.
