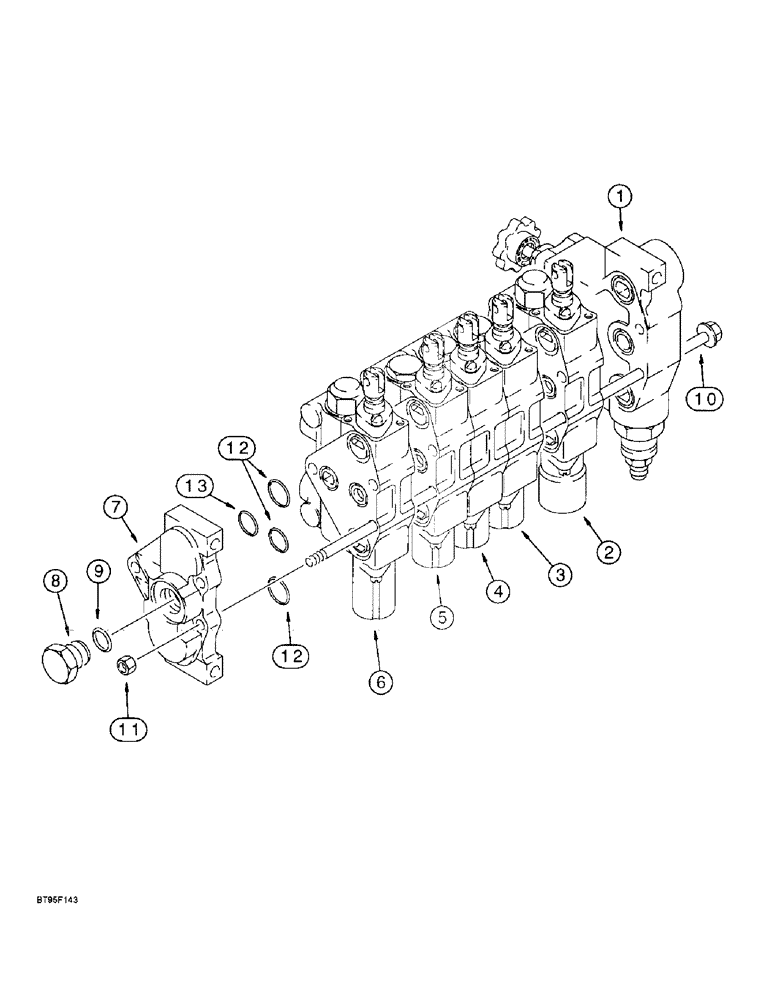

Запчасти Case 580L (8-106) - THREE-POINT HITCH CONTROL VALVE, FIVE SPOOL VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
142252A1
DISTRIBUTOR
VALVE ASSEMBLY three point hitch control, five spool, Ref. 8 plug is located on Ref. 7 end cover, no longer available, order 142252A2 valve
1шт.
142252A2
VALVE, CONTROL
VALVE ASSEMBLY three point hitch control, five spool, Ref. 8 plug is located on Ref 1 inlet/outlet section, Includes: Ref. 1-6
1шт.
3
224454A1
HYD VALVE SECTION
SECTION ASSEMBLY implement, parts list Fig. 8-114
1шт.
4
224454A1
HYD VALVE SECTION
SECTION ASSEMBLY pitch, parts list Fig. 8-114, this section may also be a tilt section on some models
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
5
224454A1
HYD VALVE SECTION
SECTION ASSEMBLY tilt, parts list Fig. 8-114, this section may also be a pitch section on some models
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
8
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 9
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
S302092
SEAL KIT
KIT seal, between sections Includes seals for one section, both 1/16 and 3/32 inch wide
1шт.
Tilt and pitch controls and hydraulic plumbing have been reversed. Ref 4 pitch section is now tilt and Ref 5 tilt section is presently pitch control. +NOTE: Ref 8 plug is located on Ref 7 end cover on models where the return line from filter is at the top of the hitch valve, see Figure 8-057C; however, Ref 8 plug has been relocated on 142252A2 valve assembly. It now appears at the upper outlet port on the end ofRef 1 inlet/outlet section on models where the return line from filter is at the bottom of t
1шт.
