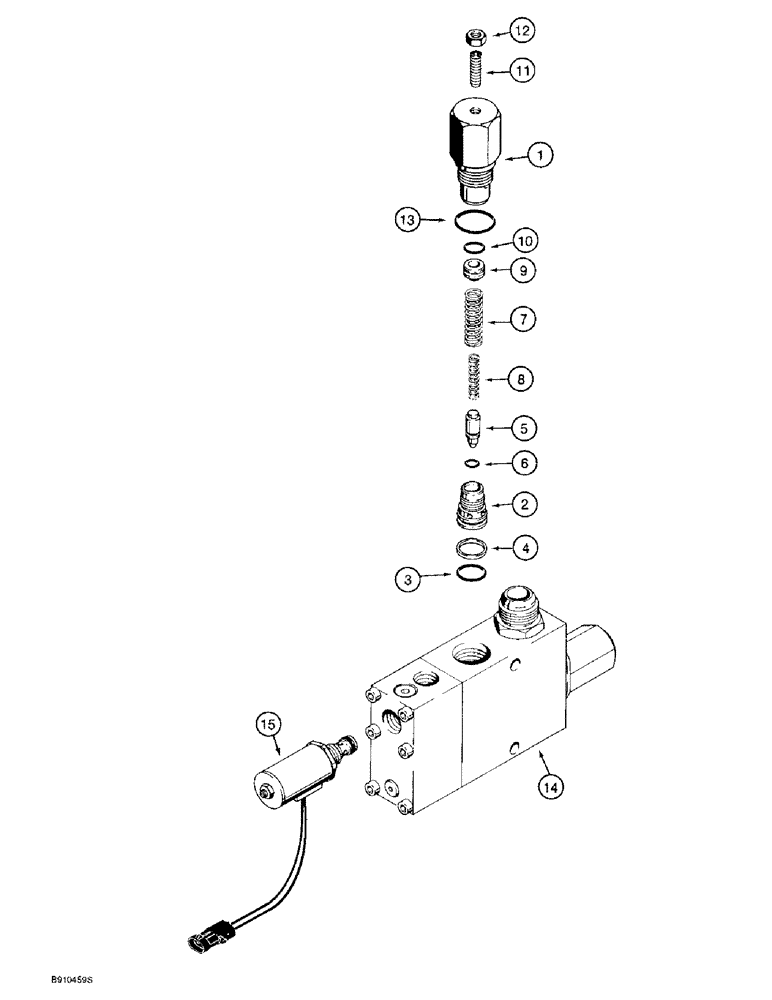

Запчасти Case 580L (8-104) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS

189957A1

VALVE

ASSEMBLY solenoid, backhoe boom lock, Includes (2) 321-6046 warning decals, see Fig. 9-172 for decal

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF ASSEMBLY circuit, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

NSS

NOT SOLD SEPARAT

BODY solenoid

1шт.

15

221168A1

SOLENOID VALVE

SOLENOID relief, with connector, 12 volt

1шт.

D150781

REPAIR KIT

KIT, REPAIR, Incl. (3) springs, (1) ball, (1) poppet, and (1) plug which are not serviced separately and D150810 seal kit, not shown

1шт.

D150810

SEAL

KIT seal, Includes (9) O-rings and (2) backup rings, which are not serviced separately, not shown

1шт.

G110077

KIT

service, for G110467 circuit relief valve, Includes G110078 circuit relief valve assembly, Ref. 1 through 13, and an instruction sheet.

1шт.
