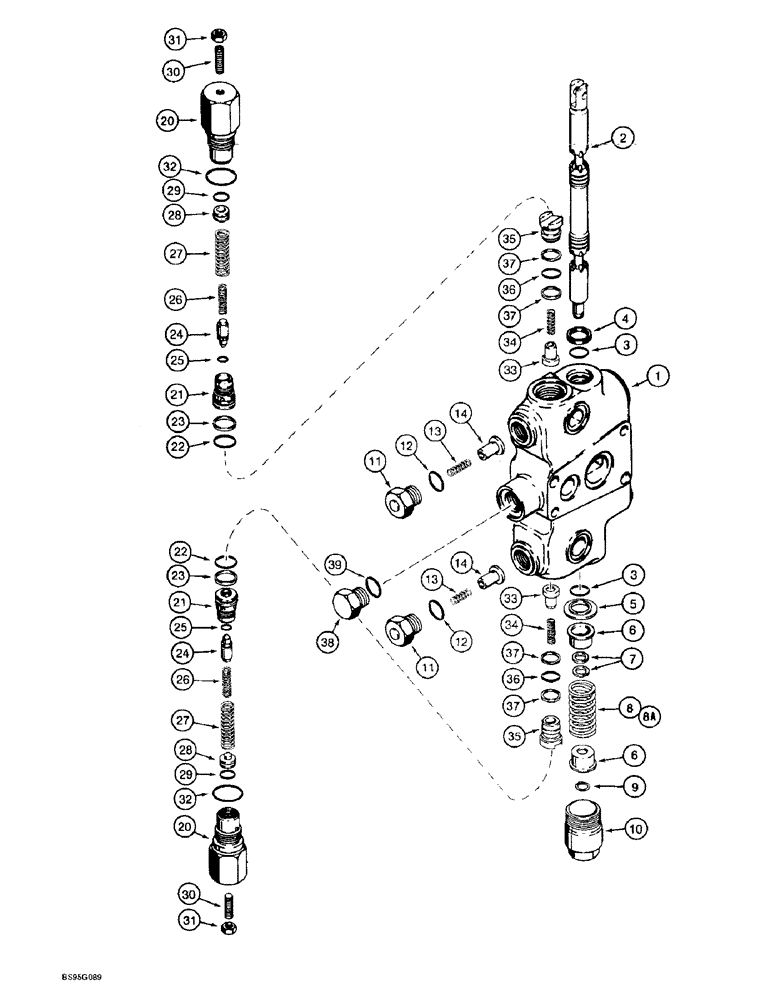

Запчасти Case 580L (8-095A) - BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

144681A5

HYD VALVE SECTION

SECTION ASSEMBLY swing, uses Ref. 8 spring, foot swing control valves, with circuit relief and anticavitation valves, Replaces: 144681A3 and 144681A4 sections

1шт.

144682A5

ELEMENT

SECTION ASSEMBLY swing, uses Ref. 8A spring, hand swing control valves, with circuit relief and anticavitation valves, Replaces: 144682A3 and 144682A4 sections, Includes: Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

2шт.

8

1986722C1

SPRING

centering, black, 2-1/4 inch free length, spool, used in 144681A3, 144681A4 and 144681A5 swing section

1шт.

8a

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool, used in 144682A3, 144682A4 and 144682A5 swing section

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346221C1

VALVE

ASSEMBLY anticavitation, order Ref. 11-14

2шт.

11

G34937

PLUG

anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, swing section, used in production, order G109449 kit for service, see below, Includes: Ref. 20- 32

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

Part of Service Kit, P/N G109449

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

Part of Service Kit, P/N G109449

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

Part of Service Kit, P/N G109449

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Service Kit, P/N G109449

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

Part of Service Kit, P/N G109449

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

Part of Service Kit, P/N G109449

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

REF

INSTRUCTION

SECTION ASSEMBLY swing

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 33-37

2шт.

33

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

34

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

35

1343708C1

PLUG

load check

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

37

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

38

214389

PLUG,3/4" - 16 ORB

Outlet section, Includes Ref. 39 Hex Hd, 3/4"-16 ORB

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

G109449

KIT

service, for G107786 circuit relief valve, kit Includes an instruction sheet and G109447 circuit relief valve Ref. 20-32 which is the same as G107786 except with a different pressure setting

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 12, 22, 23, 32, 36 and 37 plus additional O-rings not required for this application

1шт.
