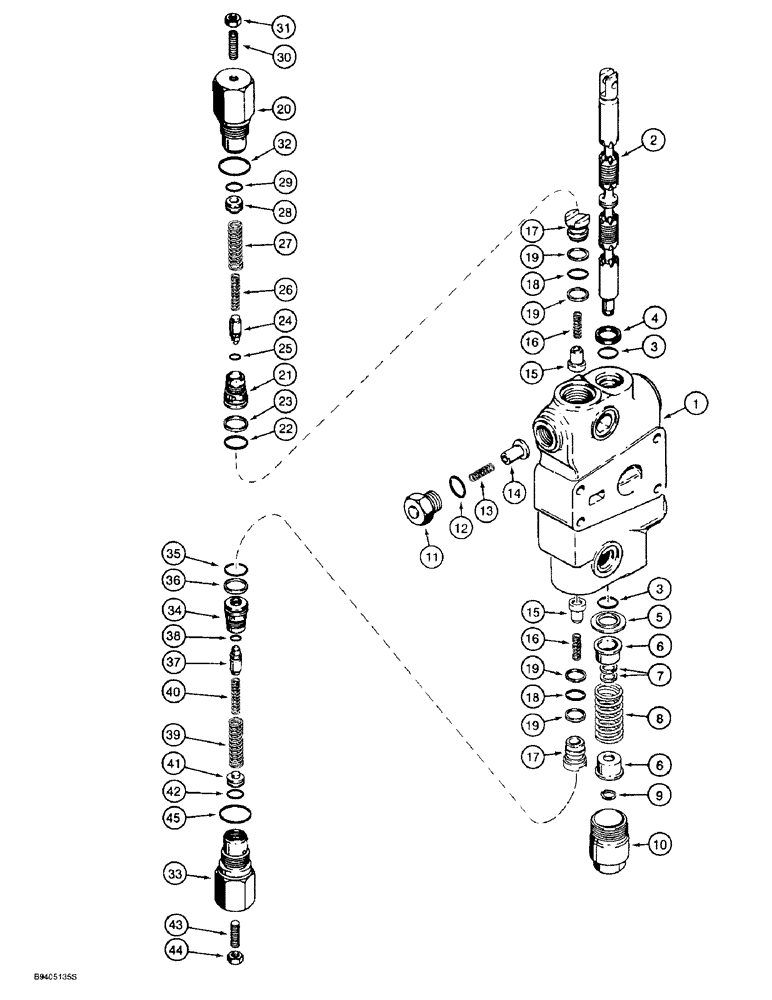

Запчасти Case 580L (8-088) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY boom, with circuit relief valves and anticavitation valve, Replaces: 144321A2, 144321A3 and 144321A4 sections, Includes: Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING boom section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL boom section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

2шт.

8

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346221C1

VALVE

ASSEMBLY anticavitation, order Ref. 11-14

1шт.

11

G34937

PLUG

anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 15-19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

17

1343708C1

PLUG

load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

G109391

VALVE

ASSEMBLY circuit relief, 3200 psi, upper, boom section, used in production, order G109449 kit for service, Includes: Ref. 20-32

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

Part of Service Kit, P/N G109449

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

Part of Service Kit, P/N G109449

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

Part of Service Kit, P/N G109449

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

Part of Service Kit, P/N G109449

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Service Kit, P/N G109449

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

Part of Service Kit, P/N G109449

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

Part of Service Kit, P/N G109449

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

Part of Service Kit, P/N G109449

1шт.

1346023C1

VALVE

ASSEMBLY, circuit relief, lower, boom section, used in production, order G110077 kit for service, Includes: Ref. 33-45

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

36

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

43

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

44

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

G110077

KIT

service, for 1346023C1 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve Ref. 33-45 which is the same as 1346023C1 except with a different pressure setting

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 12, 18, 19, 22, 23 and 32, 35, 36 and 45 plus additional O-rings not required in this application

1шт.

G109449

KIT

service, for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve Ref. 20-32 which is the same as G109391 except with a different pressure setting

1шт.
