(1-020) - PICTORIAL INDEX, BACKHOE HYDRAULICS, *BOOM, DIPPER AND BUCKET

Запчасти Case 580L (1-020) - PICTORIAL INDEX, BACKHOE HYDRAULICS, *BOOM, DIPPER AND BUCKET (00) - PICTORIAL INDEX

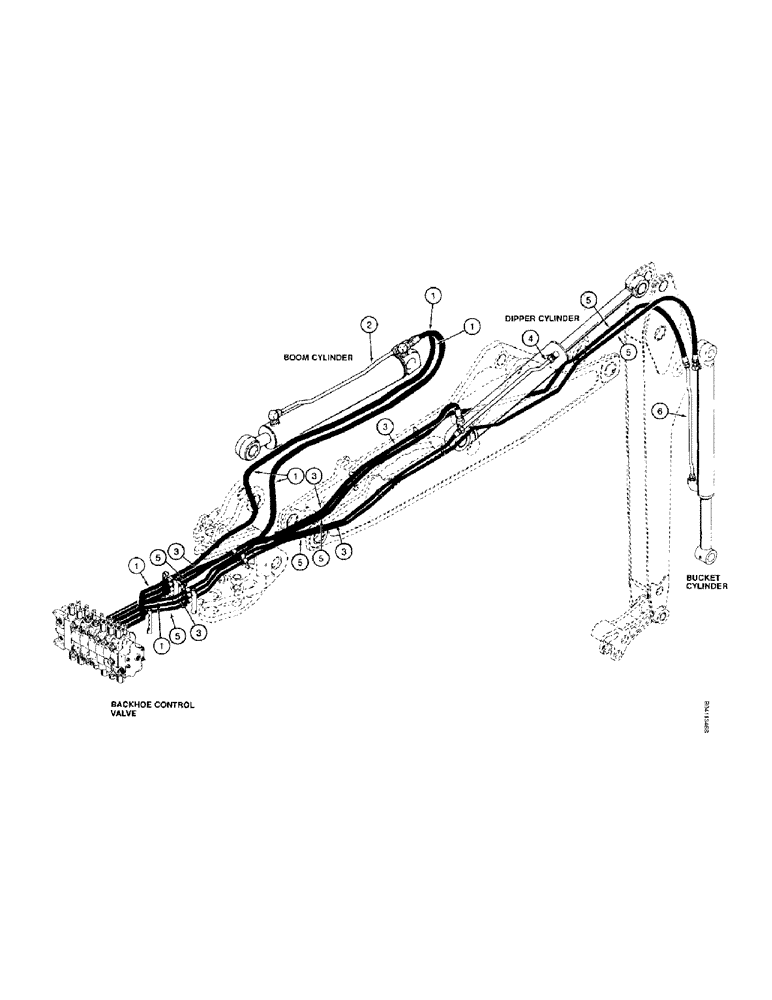

Схема запчастей Case 580L - (1-020) - PICTORIAL INDEX, BACKHOE HYDRAULICS, *BOOM, DIPPER AND BUCKET (00) - PICTORIAL INDEX
3
1
5
5
3
2
3
1
5
3
6
1
4
5
1
1
5
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hoses at control valve through swing tower to boom cylinder, Figure 8-024

1шт.

2

Boom cylinder rod end tube, Figure 8-024

1шт.

3

Hoses at control valve through swing tower to boom for dipper cylinder, Figure 8-026

1шт.

4

Hose at dipper cylinder rod end, Figure 8-026

1шт.

5

Hoses at control valve through swing tower to boom for bucket cylinder, Figure 8-028

1шт.

6

Bucket cyliner rod end tube, Figure 8-028

1шт.
