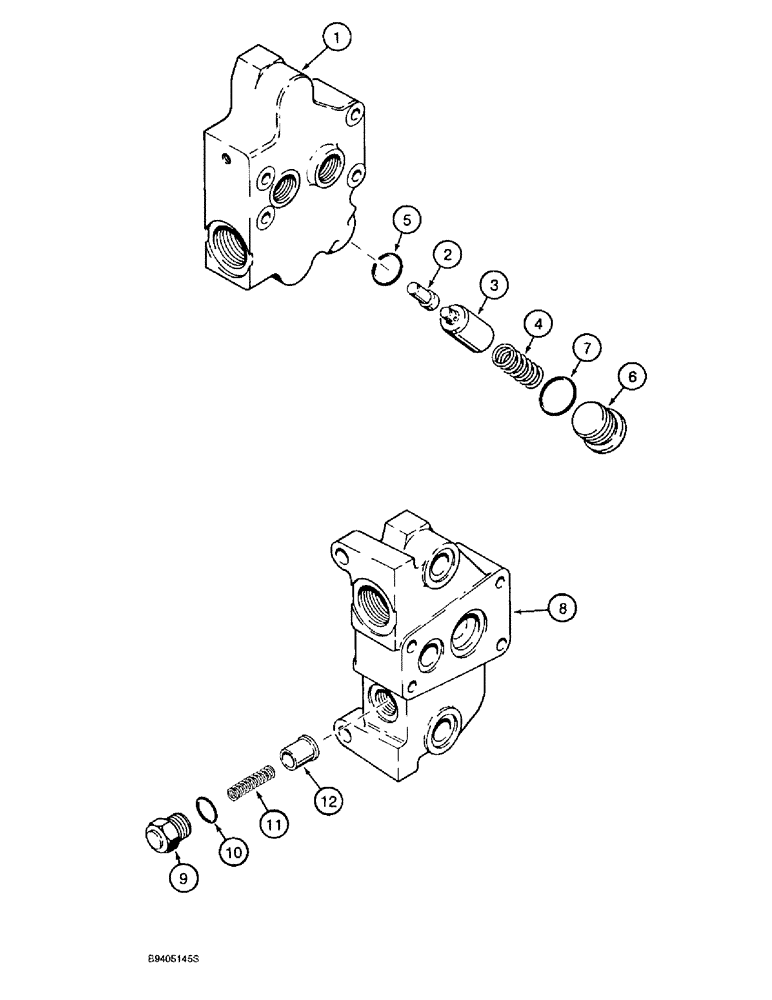

Запчасти Case 580L (8-080) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS (08) - HYDRAULICS

113248A1

ELEMENT

SECTION ASSEMBLY outlet, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD section body, outlet section

1шт.

2

G108902

PISTON

regeneration sensing, outlet section

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

regeneration, outlet section

1шт.

4

G33112

SPRING

regeneration spool, outlet section

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Outlet section -118, 70 Duro, .862" ID x .103" Thk

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, outlet section, Includes Ref 7

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Outlet section

1шт.

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY inlet, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

MANIFOLD section body, inlet section

1шт.

1346221C1

VALVE

ASSEMBLY anticavitation, order Ref. 9-12, inlet section

1шт.

9

G34937

PLUG

check valve, inlet section

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Inlet section

1шт.

11

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

check valve, inlet section

1шт.

12

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET check valve, inlet section

1шт.
