Запчасти Case 580L (8-078) - BACKHOE CONTROL VALVES,MODELS W/EXTENDABLE DIPPER OR AUX HYD (08) - HYDRAULICS

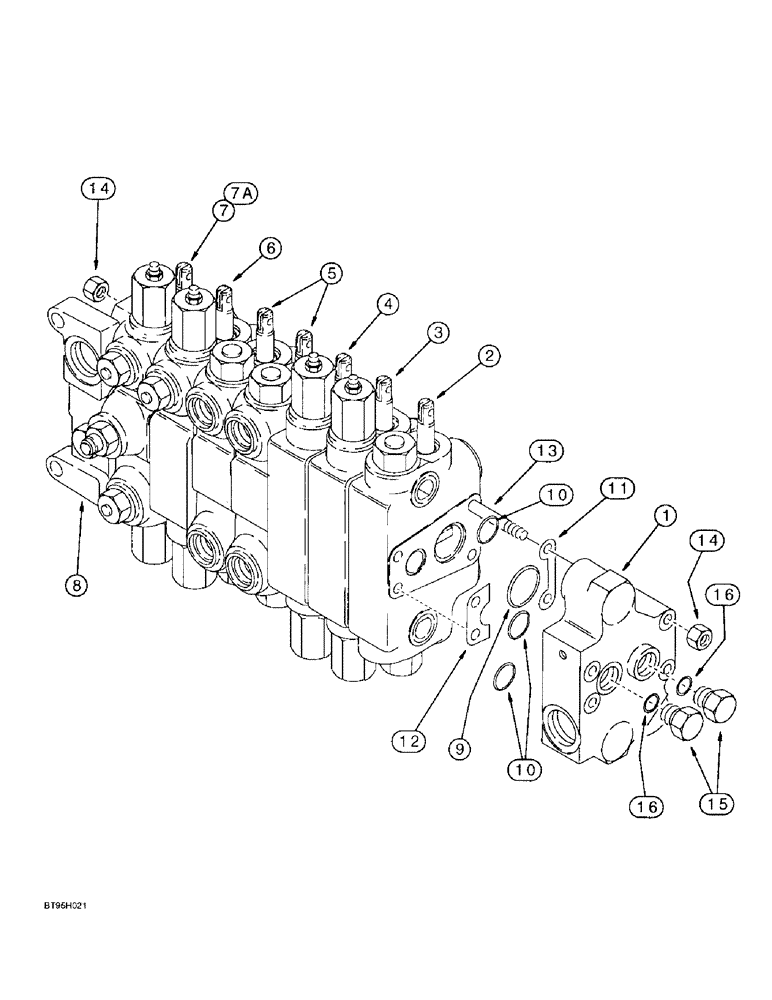

Схема запчастей Case 580L - (8-078) - BACKHOE CONTROL VALVES,MODELS W/EXTENDABLE DIPPER OR AUX HYD (08) - HYDRAULICS
9
15
12
6
4
14
14
16
7a
8
1
3
13
10
10
16
11
2
7
5

Артикул

Название

Примечание

Количество

144332A3

VALVE

ASSEMBLY backhoe control, 7 spool, foot swing, Replaces: 144332A2 valve

1шт.

144331A3

VALVE, CONTROL

VALVE ASSEMBLY backhoe control, 7 spool, hand swing, Replaces: 144331A2 valve, Includes: Ref. 1-14

1шт.

1

113248A1

ELEMENT

SECTION ASSEMBLY outlet, parts list Fig. 8-080

1шт.

2

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY dipper extension, parts list Fig. 8-096, Replaces: 144324A2 and 144324A3 sections

1шт.

3

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY bucket, parts list Fig. 8-082, Replaces: 129864A2 and 129864A3 sections

1шт.

4

136610A5

HYD VALVE SECTION

SECTION ASSEMBLY dipper, parts list Fig. 8-084, Replaces: 136610A2, 136610A3 and 136610A4 sections

1шт.

5

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY stabilizer, left hand and right hand, parts list Fig. 8-086, Replaces: G109567 and 253989A1 sections

2шт.

6

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY boom, parts list Figure 8-088, Replaces: 144321A2, 144321A3 and 144321A4 sections

1шт.

7

144681A5

HYD VALVE SECTION

SECTION ASSEMBLY foot swing control valve, for correct assembly and components, see Figures 8-092 - 8-095A, replaces 144681A2, 144681A3 and 144681A4 sections

1шт.

7a

144682A5

ELEMENT

SECTION ASSEMBLY swing, hand swing control valve, for correct assembly and components, see Fig. 8-092 - 8-095A, Replaces: 144682A2, 144682A3 and 144682A4 sections

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY inlet, parts list Fig. 8-080

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

8шт.

Part of Seal Kit, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

24шт.

Part of Seal Kit, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

13

G108899

ROD

tie, 3/8 NC x 18-15/16 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1346107C2

SEAL KIT

KIT seal, Includes: Ref. 9 and 10, plus additional O-rings not required for this application

1шт.
