Запчасти Case 580L (8-072) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS

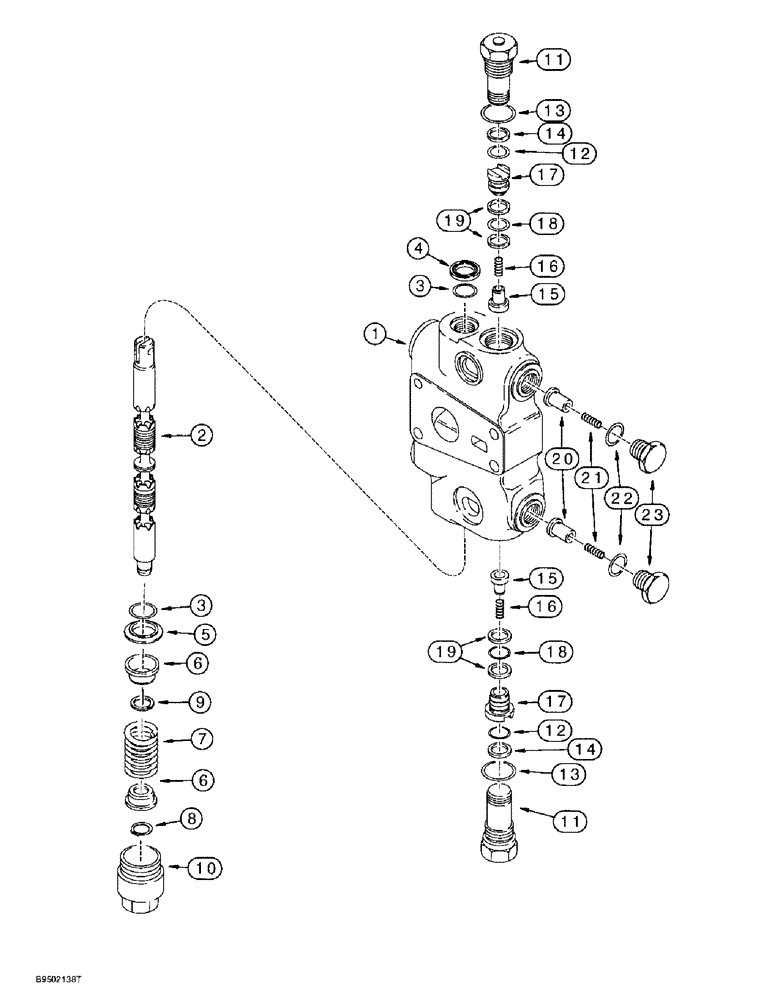

Схема запчастей Case 580L - (8-072) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS
13
4
14
9
6
12
3
16
11
12
13
17
21
8
14
18
5
11
19
15
23
10
17
20
1
7
15
18
22
6
19
16
2
3

Артикул

Название

Примечание

Количество

113794A4

VALVE SECTION

SECTION ASSEMBLY clam, three spool valve, Replaces: 113794A2 and 113794A3 sections

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING clam section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL clam section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Part of seal kit P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEATcentering spring

2шт.

7

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool, clam section

1шт.

8

100-1647

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

9

G106410

SPACER

screw

1шт.

10

G33080

CAP

centering spring, spool end, lower

1шт.

G33122

PLUG,ORB

ASSEMBLY load check valve port

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C2

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of seal kit P/N 1346105C2

1шт.

14

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit P/N 1346105C2

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

17

1343708C1

PLUG

load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C2

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C2

1шт.

129735A1

VALVE

ASSEMBLY anticavitation

2шт.

20

129698A1

VALVE POPPET

POPPET anticavitation

1шт.

21

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

129699A1

PLUG

anticavitation

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 12, 13, 14, 18, and 19, plus additional O-rings not required for this application

1шт.
