Запчасти Case 580L (8-058) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

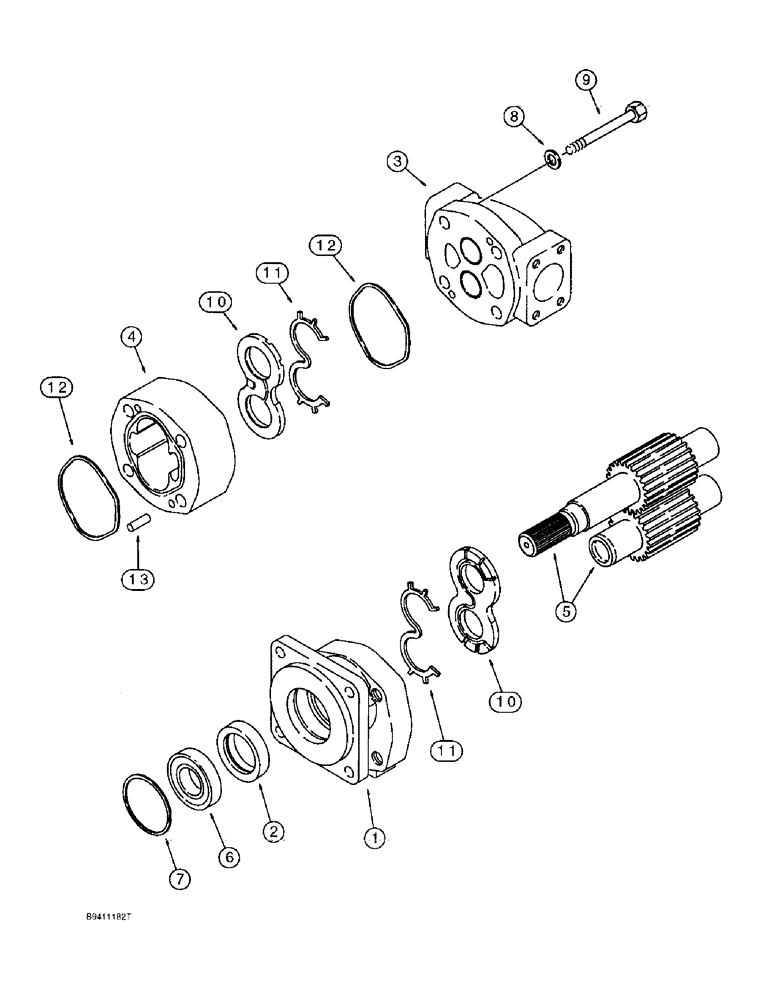

Схема запчастей Case 580L - (8-058) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS
10
7
4
1
6
8
2
12
12
5
9
11
11
3
10
13

Артикул

Название

Примечание

Количество

130258A2

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, 15 teeth shaft gear set, used with Ref 38 coupler seal on Figure 8-004 and P/N 253541A1 flex coupling on Figure 8-002, Replaces: P/N 130258A1 pump, if used, Includes: Ref. 1 - 13

1шт.

47362917R

REMAN-HYD PUMP

Coupler Part Number 257948A1 Must Also Be Ordered When Replacing 15 Tooth Splined Pump PN 130258A2

1шт.

47362917C

CORE-HYDRAULIC PUMP

Return Number

1шт.

257953A1

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, 17 teeth shaft gear set, used with P/N 257948A1 flex coupling on Figure 8-002, if used, Includes: Ref. 1 - 13

1шт.

257953A1R

REMAN-HYD PUMP

PUMP ASSEMBLY, hydraulic equipment, 17 teeth shaft gear set, used with P/N 257948A1 flex coupling on Figure 8-002, if used, Includes: Ref. 1 - 13

1шт.

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

COVER shaft end

1шт.

2

L32318

SEAL

shaft

1шт.

Part of Seal Kit, P/N 293923A1

1шт.

Part of Seal Kit, P/N 178846A1

1шт.

3

NSS

NOT SOLD SEPARAT

COVER closed end

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING gear, shaft end

1шт.

5

NSS

NOT SOLD SEPARAT

SET gear, shaft end, 15 teeth, one inch diameter shaft spline, P/N 130258A1 or 130258A2 pump

1шт.

5

NSS

NOT SOLD SEPARAT

SET gear, shaft end, 17 teeth, 1-1/8 inch diameter shaft spline, P/N 257953A1 pump

1шт.

6

S88754

BALL BEARING

BEARING ball, sealed

1шт.

7

102-23283

SNAP RING,#283, 3.009", Int, Spiral

RING internal spiral retaining, No. 283, retaining, spring lock, Replaces: P/N S88756 ring

1шт.

8

19-488

WASHER

flat

4шт.

9

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

4шт.

10

111589A1

LARGE PLATE

PLATE thrust, shaft end

2шт.

Part of Seal Kit, P/N 293923A1

1шт.

Part of Seal Kit, P/N 178846A1

1шт.

11

111590A1

SEAL

RETAINER wear plate, shaft end, P/N 130258A1 or 130258A2 pump

2шт.

Part of Seal Kit, P/N 178846A1

1шт.

11

293927A1

SEAL

used with P/N 293928A1 backup seal, not shown, P/N 257953A1 pump

2шт.

Part of Seal Kit, P/N 293923A1

1шт.

11

293928A1

SEAL

backup, used with P/N 293927A1 seal, not shown, P/N 257953A1 pump

2шт.

Part of Seal Kit, P/N 293923A1

1шт.

12

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

square ring, 4-31/64 ID x 1/8 inch wide, shaft end

2шт.

Part of Seal Kit, P/N 293923A1

1шт.

Part of Seal Kit, P/N 178846A1

1шт.

13

W16323

DOWEL

PIN dowel, shaft end

4шт.

178846A1

SEAL KIT

KIT seal, Includes: Ref. 2, 10, 12, and P/N 111590A1, 130258A1 or 130258A2 pump

1шт.

293923A1

SEAL KIT

KIT seal, Includes: Ref. 2, 10, 12, P/N 293927A1 and 293928A1, 257953A1 pump

1шт.

84366954

SEAL KIT

Kit seal, Includes: Ref. 2, 10, 12, (Used for Pump 47362917)

1шт.

Выбрано товаров: 34
