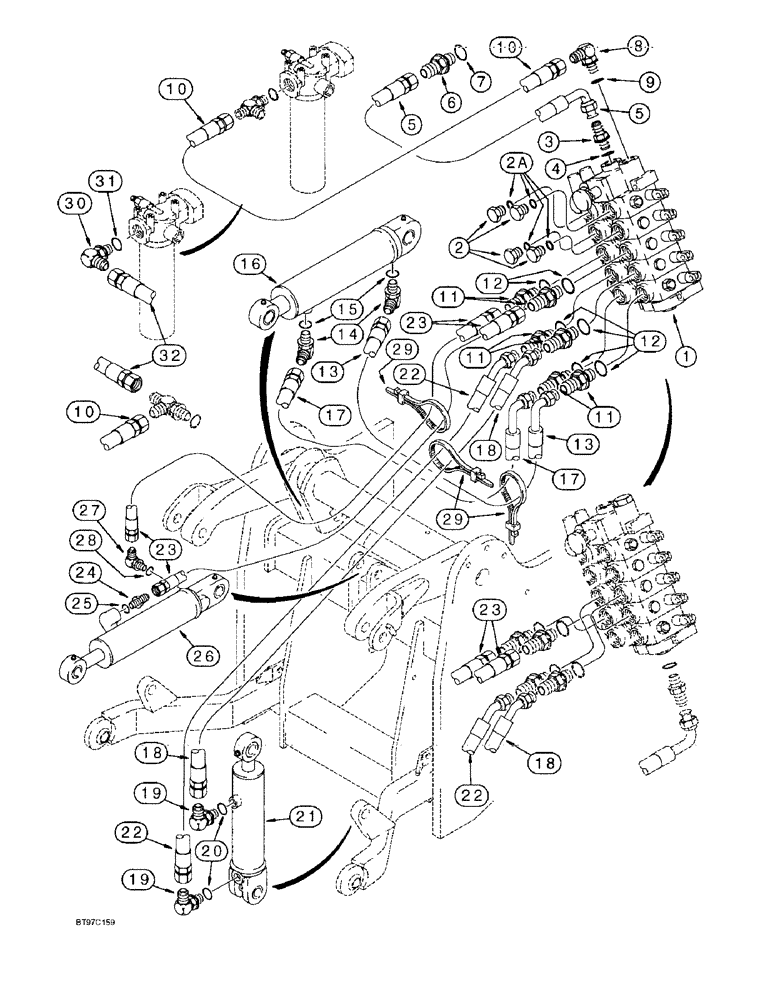

Запчасти Case 580L (8-057C) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, RETURN LINE AT TOP OF HITCH VALVE (08) - HYDRAULICS

1

142252A1

DISTRIBUTOR

VALVE ASSEMBLY three-point hitch control, see Figure 8-106, see Figure 9-066 for valve mounting

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 2A Hex Hd, 3/4"-16 ORB

4шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

181504A1

HOSE

1575 mm/62 inch long, includes hose guard, loader control valve power beyond port to three-point hitch control valve inlet port

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, at loader control valve power beyond port, Incl. Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1/16-12 inch flare x adjusting O-ring boss, Incl. Ref. 9

1шт.

See Figure 8-057G for optional hose routing.

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

236117A1

HOSE

1575 mm/62 inch long, Replaces: P/N 181505A1, 1425 mm hose, three-point hitch control valve outlet to tee at hydraulic oil filter, see Figure 8-008 for filter and tee

1шт.

See Figure 8-057G for optional hose routing.

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 12

6шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

181499A1

HOSE

950 mm/37-13/32 inch long, includes hose guard, upper port of lift section to closed end of lift cylinder

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

3/4-16 flare x 7/8-14 inch adjusting O-ring boss, lift cylinder, 90°

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY, lift, for correct assembly and components see Figures 8-140 or 8-141A

1шт.

17

181498A1

HOSE

635 mm/25 inch long, includes hose guard, lower port of lift section to rod end of lift cylinder

1шт.

18

181501A1

HOSE

925 mm/36-7/16 inch long, upper port tilt section to rod end of tilt cylinder

1шт.

Hose plumbing at valve tilt and pitch sections have been reversed. See illustration arrowed off main routing.

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, tilt cylinder, 90°

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

CYLINDER ASSEMBLY, 64/2-1/2 ID x 160 mm/6-19/64 inch stroke, tilt, see Figure 8-142

1шт.

22

181500A1

HOSE

1205 mm/47-7/16 inch long, tilt cylinder closed end to tilt section lower port

1шт.

Hose plumbing at valve tilt and pitch sections have been reversed. See illustration arrowed off main routing.

1шт.

23

181502A1

HOSE

755 mm/29-3/4 inch long, upper and lower pitch section ports to rod and closed end of pitch cylinder

2шт.

Hose plumbing at valve tilt and pitch sections have been reversed. See illustration arrowed off main routing.

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, pitch cylinder rod end, Incl. Ref 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

CYLINDER ASSEMBLY, 64/2-1/2 ID x 178 mm/7 inch stroke, pitch, see Figure 8-144

1шт.

138235A1R

REMAN-HYD CYLINDER

580L, 570LXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare x adjusting O-ring boss, pitch cylinder closed end, 90°, Includes: Ref. 28

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

6шт.

30

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adjusting O-ring boss, at filter, if used, tee at filter relocated to end of Ref. 32 hose on some models, Incl. Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

32

236116A1

HOSE

430 mm/16-15/16 inch long, filter to tee at loader valve return port

1шт.
