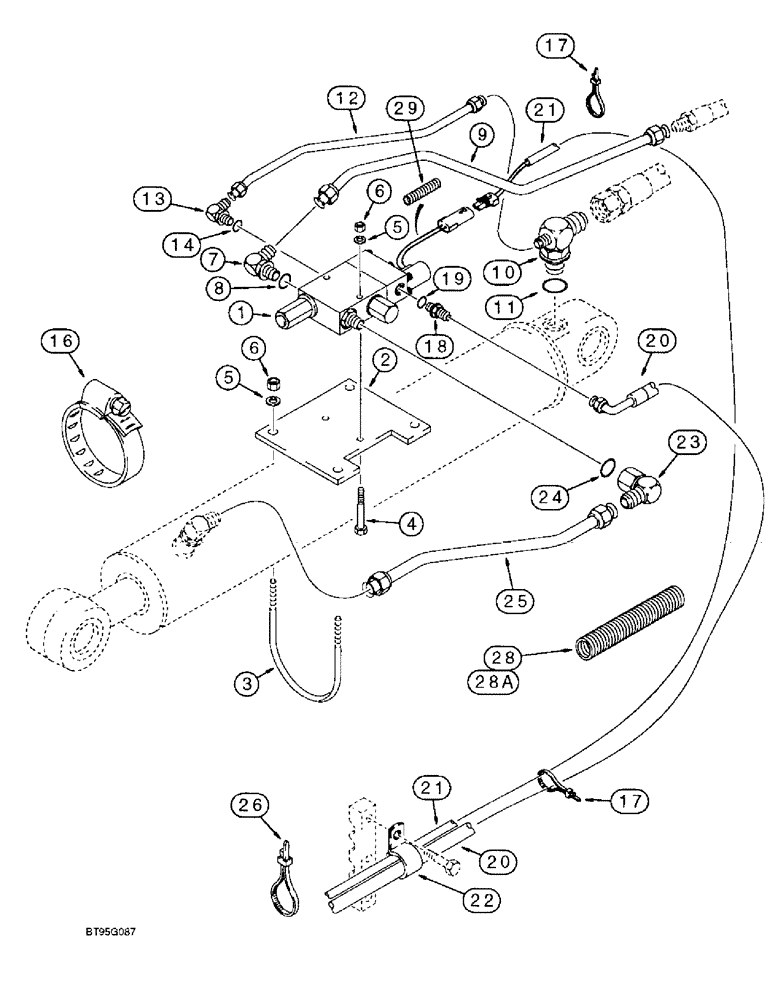

Запчасти Case 580L (8-054) - BACKHOE BOOM LOCK HYDRAULIC, AND ELECTRICAL CIRCUIT, AT BOOM CYLINDER (08) - HYDRAULICS

190544A1

KIT

backhoe boom lock, order components, Includes: Ref. 1 - 29

1шт.

1

189957A1

VALVE

ASSEMBLY, solenoid, backhoe boom lock, includes 2, P/N 321-6046 warning decals, see Figure 8-104

1шт.

2

D150054

PLATE

- Valve mounting

1шт.

3

D150053

BOLT

U-BOLT, 3/8 inch

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

6шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-1/16-12 flare x 1-5/16-12 inch adjusting O-ring boss, 90°, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

9

191756A1

TUBE,19.05 mm OD, 728, 173 mm Length

valve port, attaches to Ref. 11 hose on Figure 8-024

1шт.

10

191063A1

FITTING

TEE reducer, boom cylinder closed end, attaches to Ref. 18 hose on Figure 8-024, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

191790A1

TUBE

pilot port

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16-20 flare x 9/16-18 inch adjusting O-ring boss, 90°, Includes: Ref. 14

1шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

CLAMP adjusting, 5-3/4 - 6-5/8 inch diameter

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

7шт.

18

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

189103A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 3700 mm (145-11/16") long, Return, Attaches to elbow at backhoe valve, See Ref 2 on Figure 8-052

1шт.

21

189263A1

WIRE HARNESS

HARNESS, WIRE, Boom lock valve to control tower harness

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Return hose 3/4", Insul, 1/2" Bolt

1шт.

23

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-1/16-12 flare x 1-5/16-12 inch swivel, 90°, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

25

187612A1

TUBE,19.05 mm OD, 241, 44 mm Length

HYD, Boom lock valve to boom cylinder rod end, see Figure 8-024, Ref 22 for elbow

1шт.

26

D147773

CLAMP

STRAP tie

1шт.

28

220276A1

SLEEVE

hose guard, 610 mm long, Refs. 20 hose, and 21 harness at swing tower

1шт.

28a

220275A1

SLEEVE

hose guard, 250 mm long, Refs. 20 hose, and 21 harness on boom

1шт.

29

D121385

PLASTIC-RUBBER TUBE

GUARD harness protection

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
