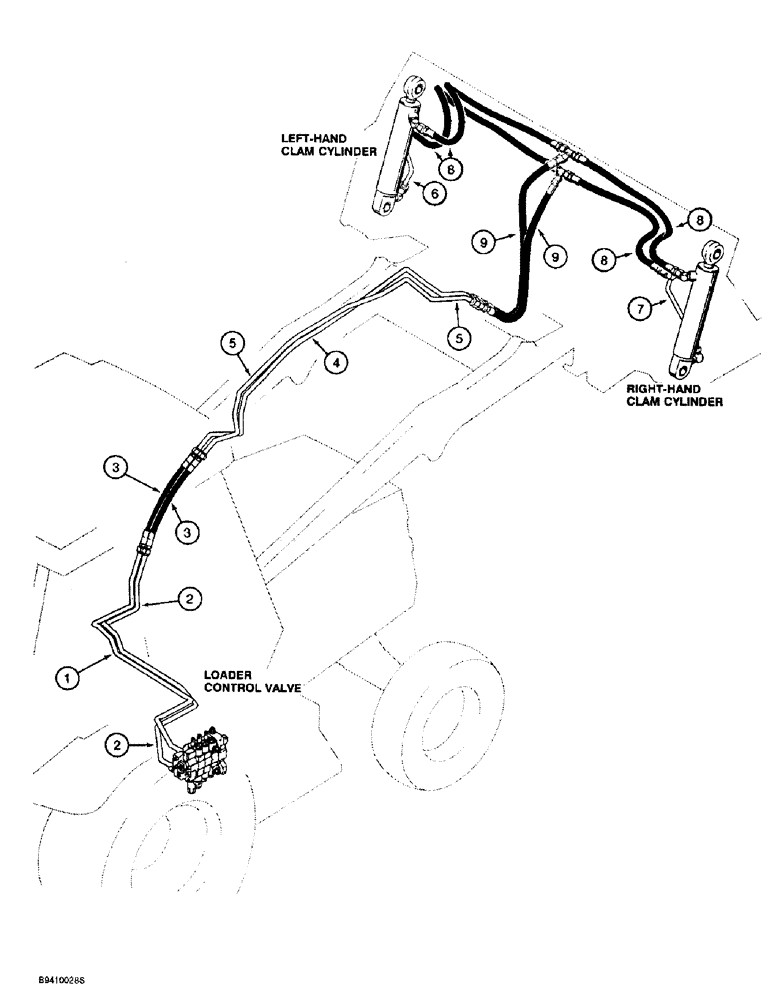

Запчасти Case 580L (1-016) - PICTORIAL INDEX, LOADER HYDRAULICS, CLAM CYLINDER (00) - PICTORIAL INDEX

1

Tube at upper port auxiliary section of loader control valve to hose at loader arm pivot, Figure 8-016

1шт.

2

Tube at lower port auxiliary section of loader control valve to hose at loader arm pivot, Figure 8-016

1шт.

3

Hose at loader arm pivot, Figure 8-016

1шт.

4

Lower tube on loader lift frame, Figure 8-016

1шт.

5

Upper tube on loader lift frame, Figure 8-016

1шт.

6

Tube at left-hand clam cylinder, Figure 8-018

1шт.

7

Tube at right-hand clam cylinder, Figure 8-018

1шт.

8

Right-hand and left-hand clam cylinder hoses, Figure 8-018

1шт.

9

Lift arm hoses, Figure 8-018

1шт.
