Запчасти Case 580L (8-048) - HAND HELD AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

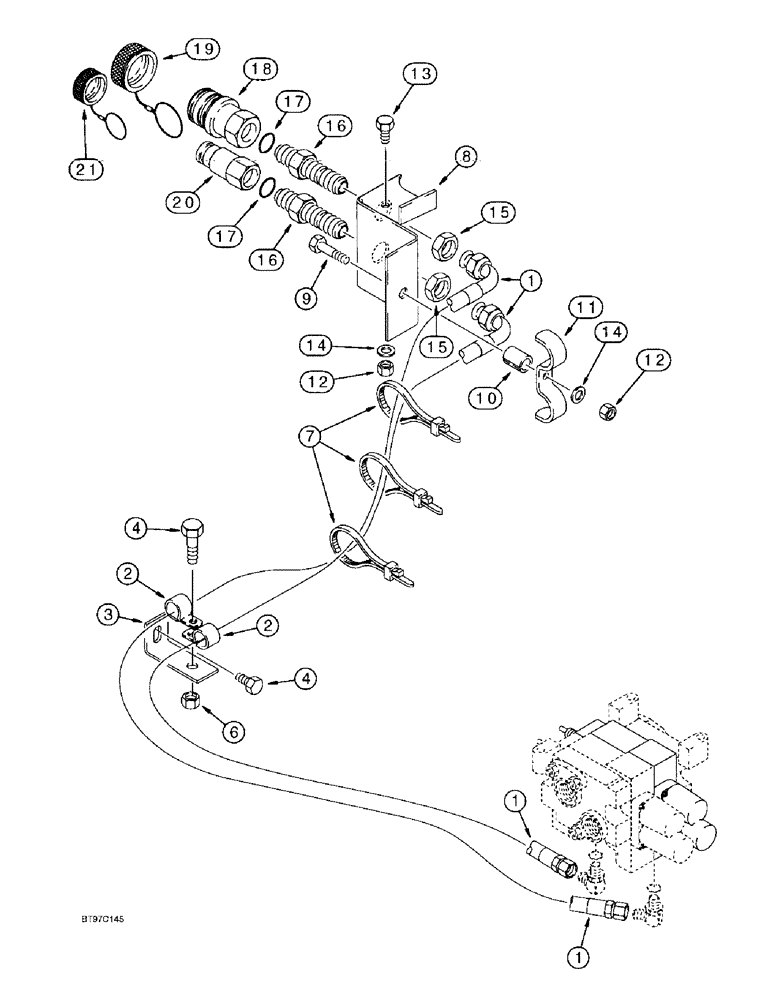

Схема запчастей Case 580L - (8-048) - HAND HELD AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS
2
16
1
17
18
19
8
12
2
17
4
13
6
15
20
16
4
21
10
3
14
1
15
11
7
9
12
14
1

Артикул

Название

Примечание

Количество

1

191215A1

HOSE

2460 mm/96-7/8 inch long, auxiliary valve to quick disconnect couplings, see Figure 8-036 or 8-041A for 218-5107 elbows at auxiliary valve

2шт.

2

D34033

CLAMP

P-type, 1-3/16 inch ID

2шт.

3

180318A1

SUPPORT

BRACKET hose support

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, If used

1-2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used Hex, M10 x 25, 8.8, Full Thd

1шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, If used

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used M10, Cl 10

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

8

191188A1

SUPPORT

BRACKET hose support to quick disconnect couplings

1шт.

9

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

- Hex, Full Threads, 10-1.5 x 50 mm

1шт.

10

131600A1

SPACER

clamp

1шт.

11

191075A1

FIXING BRACKET

CLAMP double

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, If used

2шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

126155A1

FITTING

CONNECTOR straight, bulkhead, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

122179A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, female, component parts are not serviced separately, Replaces: P/N 123537A1 female coupling

1шт.

19

137343A1

PLUG

CAP female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, component parts are not serviced separately, Replaces: P/N 123536A1 and 122178A1 male coupling

1шт.

21

137344A1

PLUG

CAP male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP male coupling, black rubber, if used

1шт.
