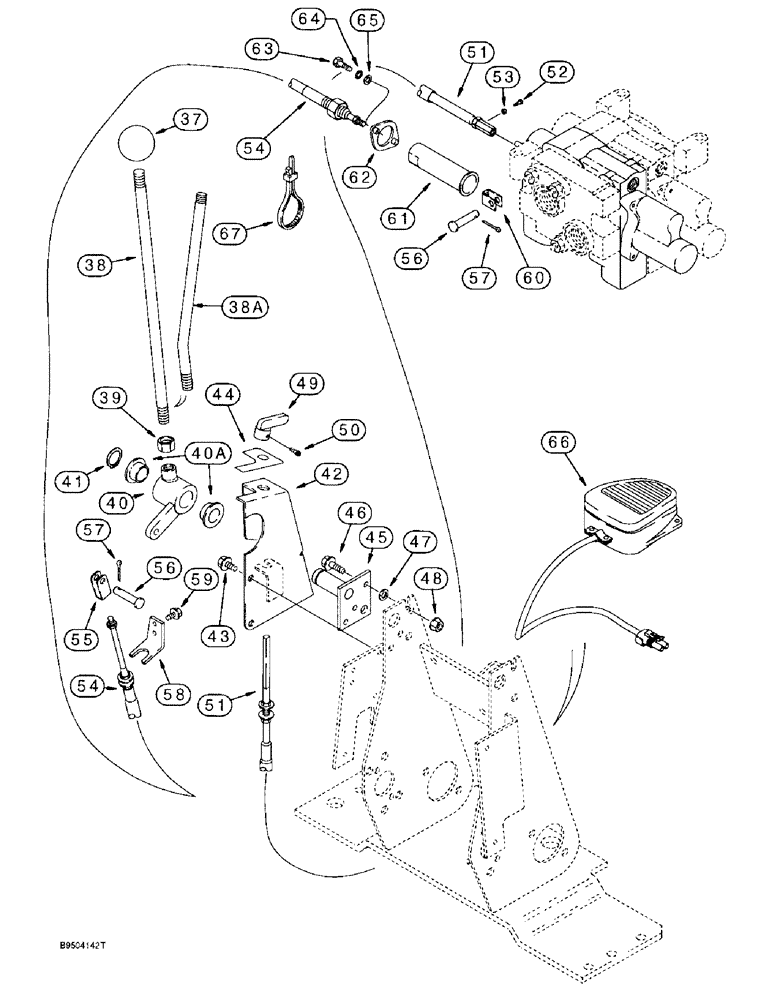

Запчасти Case 580L (8-046) - BACKHOE AUXILIARY HYDRAULICS, CONTROL LEVERS TO AUXILIARY VALVE (08) - HYDRAULICS

37

D59912

KNOB

lever

1шт.

38

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

LEVER control, detent, straight, no longer used, order P/N 221477A1 lever, Ref. 38A

1шт.

38a

221477A1

THREADED ROD,1/2"-20 UNF x 250mm L

LEVER control, detent, bent

1шт.

39

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

1шт.

40

136374A1

LEVER ASSY.

BELLCRANK, lever to cable, Includes: Ref. 40A

1шт.

40a

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever, Bellcrank

2шт.

41

103-1475

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

42

199553A1

COVER

flow control, mounts to backhoe console cover

1шт.

43

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

44

199382A1

DECAL

backhoe auxiliary hydraulics, flow control, see Figure 9-170 for decal

1шт.

45

136375A1

PIVOT

SHAFT pivot, mounts to backhoe control tower support

1шт.

46

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

47

124028A1

SPACER

pivot shaft

2шт.

48

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

49

139230A1

HANDLE

KNOB rotary, flow control

1шт.

50

83-1108

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW set, hex socket headless, No. 10 NC x 1/2 inch, cup point

1шт.

51

136473A1

CABLE

flow control, rotary, upper auxiliary valve spool

1шт.

52

84-2106

SET SCREW,Hex Soc, #10-32 x 3/8"

SCREW set, hex socket headless, No. 10 NF x 3/8 inch, cone point

1шт.

53

225-14210

NUT,#10-32

1шт.

54

96481C2

CABLE

push pull

1шт.

55

124026A1

CLEVIS

push pull cable end

1шт.

56

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN clevis

2шт.

57

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

2шт.

58

189530A1

SUPPORT

BRACKET cable support, mounts to control tower

1шт.

59

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

60

96790C2

CLEVIS COUPLING

CLEVIS cable, push pull cable end

1шт.

61

1340478C1

HOUSING

cable support, lower auxiliary valve spool

1шт.

62

1280055C2

FLANGE

cable support housing, Replaces: P/N 1280055C1 flange

1шт.

63

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

64

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

65

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

66

137219A1

SWITCH

foot, auxiliary hydraulics

1шт.

CONNECTOR PLUG AT THE END OF REF 66 (137219A1) IS 245482C1, TERMINALS ARE 225122C1 (2 REQ'D). 4/17/98 BW

1шт.

67

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

68

321-4481

DECAL

Warning, keep clear of this area, swinging boom can crush, not shown, see Figure 9-168 for decal

1шт.
