Запчасти Case 580L (8-042) - BACKHOE AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

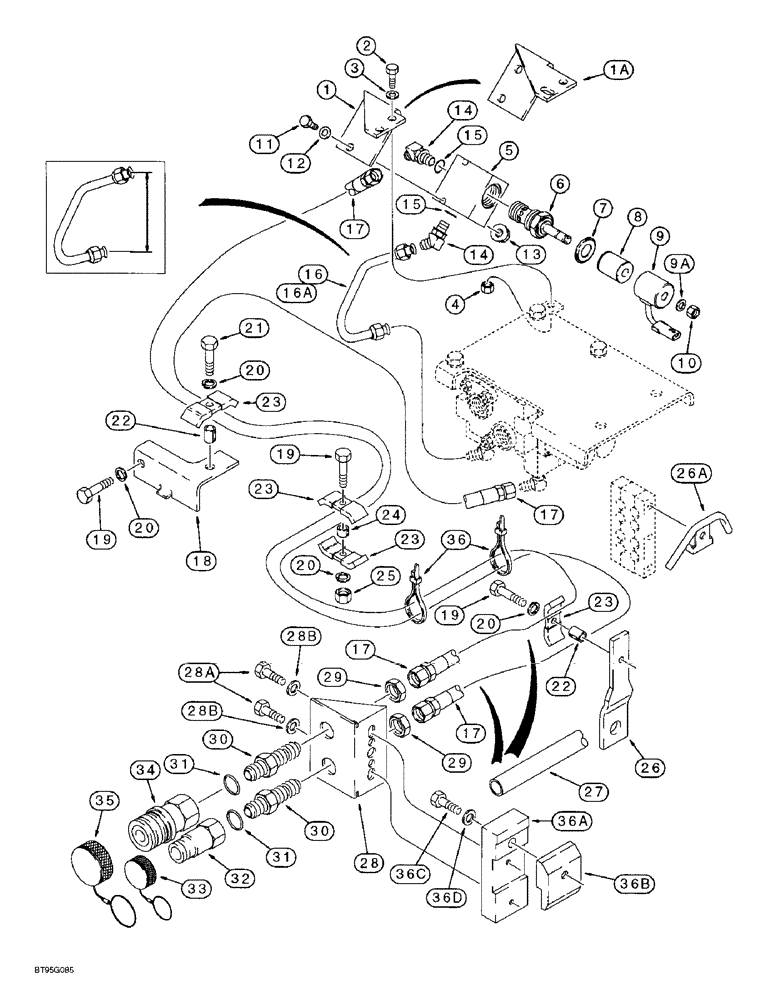

Схема запчастей Case 580L - (8-042) - BACKHOE AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS
36
36a
36d
17
17
32
3
24
36b
23
31
15
34
23
26
7
4
36c
21
29
25
28a
9a
19
15
14
23
20
2
35
17
9
30
5
1a
22
30
13
28
22
10
19
17
28b
11
1
16
16a
6
20
33
23
20
19
26a
12
28b
18
8
29
31
20
14
27

Артикул

Название

Примечание

Количество

1

188125A1

SUPPORT

BRACKET solenoid valve mounting, attaches to auxiliary valve bracket, used with Ref. 16 tube, if used

1шт.

1a

199870A1

SUPPORT

BRACKET solenoid valve mounting, attaches to auxiliary valve bracket, used with Ref. 16A tube, if used

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

141475A1

SOLENOID VALVE

VALVE ASSEMBLY, solenoid, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

6

195679A1

VALVE

solenoid

1шт.

7

195680A1

WASHER

PLATE cover

1шт.

8

195681A1

COIL

solenoid

1шт.

9

195682A1

HOUSING

solenoid coil

1шт.

9a

NSS

NOT SOLD SEPARAT

WASHER flat, special

1шт.

10

195683A1

JAM NUT,1/2"-20

Coil to valve 1/2"-20, Thin

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

12

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

flat, hardened, 9 x 17 x 2 mm

2шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

14

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adjusting O-ring, Incl. Ref 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

188305A1

TUBE,15.88 mm OD, 160.82, 101.42 mm Length

auxiliary valve to solenoid valve, 160.82 mm/6-11/32 inch long at dimension shown in illustration box, see Figures 8-036 or 8-041A for fittings at auxiliary valve, used with Ref. 1 bracket, if used

1шт.

16a

199863A1

TUBE

auxiliary valve to solenoid valve, 172.44 mm/6-25/32 inch long at dimension shown in illustration box, see Figure 8-036 or 8-041A for fittings at auxiliary valve, used with Ref. 1A bracket, if used

1шт.

17

179896A1

HOSE

3140 mm/123-5/8 inch long, auxiliary valve and solenoid valve to boom, see Figure 8-036 or 8-041A for fittings at auxiliary valve

2шт.

18

176852A1

SUPPORT

BRACKET, hose mounting at chassis backhoe frame

1шт.

19

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex, 10-1.5 x 40 mm

3шт.

20

892-11010

LOCK WASHER,M10

4шт.

21

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

22

131600A1

SPACER

clamp

2шт.

23

D42833

CLAMP

hose at swing tower

4шт.

24

131601A1

SPACER

clamp

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

26

139125A1

SUPPORT

BRACKET, hose mounting at swing tower

1шт.

26a

144203A1

BRACKET

hose clamp, mounts to swing tower vertical hose clamps with existing hardware

1шт.

27

179861A1

PROTECTIVE SLEEVE

SLEEVE hose guard

2шт.

28

191189A1

BRACKET

hose and coupling support

1шт.

28a

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8-1.25 x 25 mm

2шт.

28b

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

29

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

30

126155A1

FITTING

CONNECTOR straight, bulkhead, Includes: Ref. 31

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

32

122178A2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, component parts not serviced, Replaces: P/N 123536A1 and 122178A1 male coupling

1шт.

33

137344A1

PLUG

CAP male coupling, aluminum, if used

1шт.

33

193262A1

PLUG

CAP male coupling, black rubber, if used

1шт.

34

122179A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, female, component parts not serviced, Replaces: P/N 123537A1 female coupling

1шт.

35

137343A1

PLUG

CAP female coupling, aluminum, if used

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

36a

D150150

SHIN

CLAMP boom, large

1шт.

36b

D150151

SHIN

CLAMP boom, small

1шт.

36c

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

36d

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

Выбрано товаров: 48
