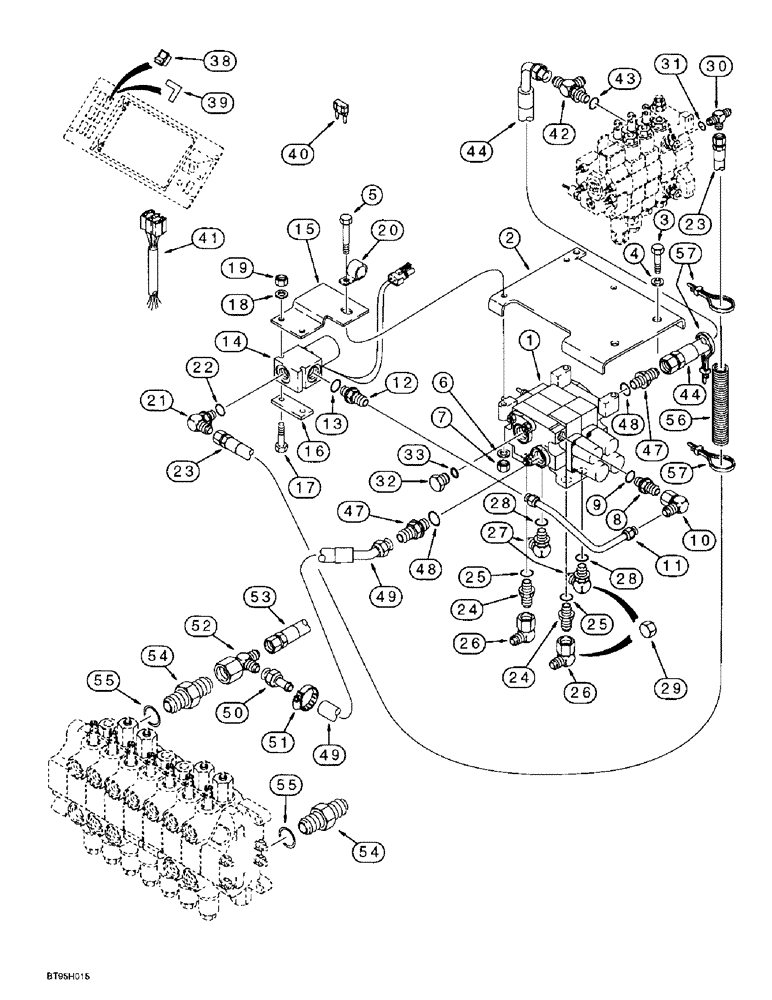

Запчасти Case 580L (8-041A) - BASIC AUXILLARY HYDRAULICS, MODELS WITH OR WITHOUT EXTENDABLE DIPPER TRACTOR (08) - HYDRAULICS

1

121740A2

VALVE, CONTROL

VALVE ASSEMBLY, auxiliary, see Figure 8-098

1шт.

2

224788A1

SUPPORT

BRACKET, auxiliary valve, Serial Range: mounting-chassis

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10-1.5 x 70 mm

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2-3шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 9

1шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 inch flare x swivel, 90°

1шт.

11

175276A1

TUBE,9.53 mm OD

auxiliary valve to solenoid valve inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

137012A1

SOLENOID VALVE

VALVE ASSEMBLY, solenoid, component parts are not serviced separately

1шт.

15

137713A1

SUPPORT

BRACKET solenoid mounting

1шт.

16

136977A1

LARGE PLATE

PLATE solenoid valve mounting

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

- hex, 6 - 1.0 x 60 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces P/N 515-2379, 5/16" ID clamp 1/2", Insul, 3/8" Bolt

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

9/16-18 flare x 3/4-16 inch adjusting O-ring boss, 90°, Incl. Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

192693A1

HOSE

1490 mm/58-11/16 inch long, solenoid valve outlet to tee at loader control valve inlet section

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, backhoe section of auxiliary valve, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 inch flare x swivel, backhoe section of auxiliary valve, 90°, see backhoe auxiliary hydraulics Figure 8-042 for attaching hoses

2шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, hand held section of auxiliary valve, 90°, see hand held hydraulics on Figure 8-048 for attaching hoses, Incl. Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

If used, not required when hydraulic hoses for hand held or backhoe auxiliary hydraulics are attached to fittings 37º, 7/8"-14

2-4шт.

30

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch flare branch x flare x adjusting O-ring boss, loader valve inlet section, see Figure 5-004 for attaching steering hose, Includes: Ref. 31

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex, 1-1/16-12 inch O-ring boss, auxiliary valve inlet port, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

191532A1

SWITCH

rocker, auxiliary hydraulics

1шт.

39

192299A1

DECAL

auxiliary hydraulics, switch on instrument panel, see Figure 9-170 for decal

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

41

187013A1

HARNESS

auxiliary hydraulics, attaches to foot switch, solenoid valves and cab harness

1шт.

42

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adjusting O-ring, at loader valve inlet section lower port, see Figure 5-004 for attaching steering hose, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

243338A1

HOSE

910 mm/35-7/8 inch long, loader valve inlet section lower port to auxiliary valve port, Replaces: P/N 221377A1, 910 mm long hose

1шт.

47

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, outlet port at auxiliary valve, Incl. Ref. 48

2шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

49

221378A1

HOSE ASSY.

HOSE, 400 mm/5-3/4 inch long, auxiliary valve outlet port to tee at backhoe control valve outlet section port

1шт.

50

221379A1

TUBE,19.05 mm OD

at backhoe valve outlet section tee

1шт.

51

277678A1

CLAMP,Constant Torque 1 1/8 Inch

adjusting, special, Serial Range: tube-hose

1шт.

52

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel, at backhoe valve outlet section, between hose to hydraulic oil filter and P/N 218-5069 adapter, see Figure 8-008 for hose and fittings to hydraulic oil filter

1шт.

53

144229A1

HOSE

775 mm/30-1/2 inch long, return, backhoe control valve to filter, see Figure 8-008 for adapter

1шт.

54

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 55

2шт.

55

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

56

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

2шт.

57

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
