Запчасти Case 580L (8-036) - BASIC AUXILLARY HYDRAULICS, MODELS WITH OR WITHOUT EXTENDABLE DIPPER, COMMON PARTS, P.I.N.JJG0221934 (08) - HYDRAULICS

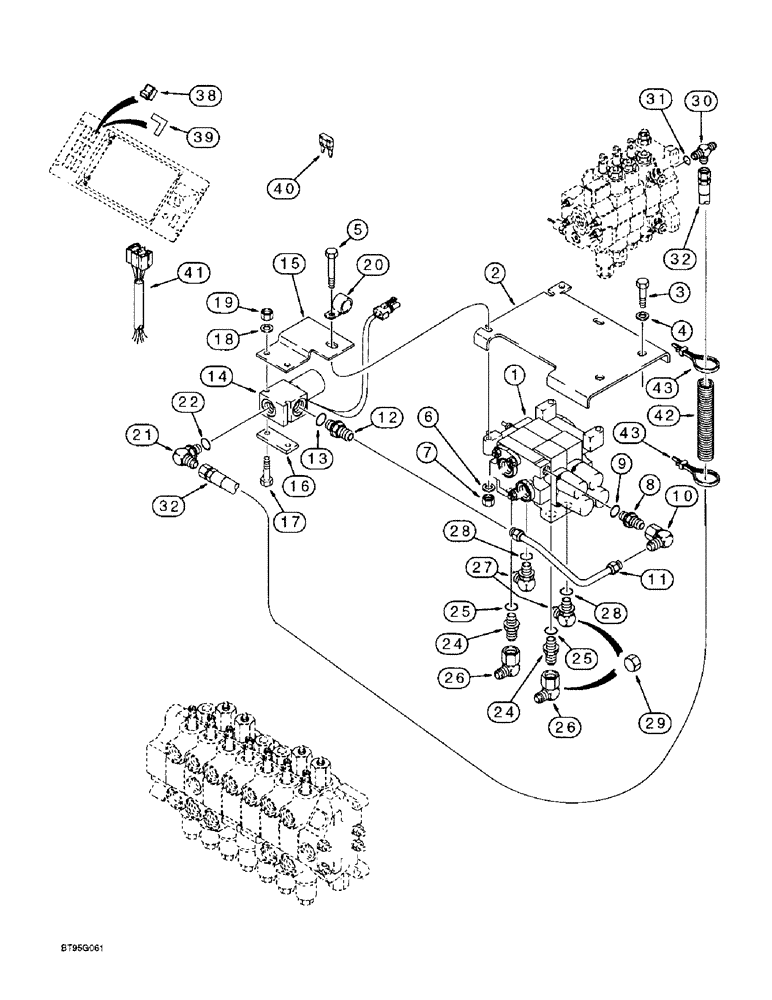

Схема запчастей Case 580L - (8-036) - BASIC AUXILLARY HYDRAULICS, MODELS WITH OR WITHOUT EXTENDABLE DIPPER, COMMON PARTS, P.I.N.JJG0221934 (08) - HYDRAULICS
8
40
17
28
32
6
24
24
29
11
22
27
26
14
42
43
1
32
25
5
21
25
2
16
20
13
26
30
43
4
15
12
41
28
18
3
9
10
7
39
31
38
19

Артикул

Название

Примечание

Количество

1

121740A2

VALVE, CONTROL

VALVE ASSEMBLY, auxiliary, see Figure 8-098

1шт.

2

136358A1

GUIDE

BRACKET auxiliary valve mounting to chassis, no longer available, order P/N 224788A1 bracket on Figure 8-041A

1шт.

3

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10-1.5 x 70 mm

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 9

1шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 inch flare x swivel, 90°

1шт.

11

175276A1

TUBE,9.53 mm OD

auxiliary valve to solenoid valve inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

137012A1

SOLENOID VALVE

VALVE ASSEMBLY, solenoid, component parts are not serviced separately

1шт.

15

137713A1

SUPPORT

BRACKET solenoid mounting

1шт.

16

136977A1

LARGE PLATE

PLATE solenoid valve mounting

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

- hex, 6 - 1.0 x 60 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces P/N 515-2379, 5/16" ID clamp 1/2", Insul, 3/8" Bolt

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

9/16-18 flare x 3/4-16 inch adjusting O-ring boss, Incl. Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, backhoe section of auxiliary valve, Includes: Ref. 26

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 inch flare x swivel, backhoe section of auxiliary valve, see backhoe auxiliary hydraulics, see Figure 8-042 for attaching hoses, Includes: Ref. 28

2шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, hand held section of auxiliary valve, see hand held hydraulics on see Figure 8-048 for attaching hoses, Incl. Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

If used, not required when hydraulic hoses for hand held or backhoe auxiliary hydraulics are attached to fittings 37º, 7/8"-14

2-4шт.

30

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch flare branch x flare x adjusting O-ring boss, loader valve inlet section, see Figure 5-004 for attaching steering hose, Includes: Ref. 31

1шт.

32

192693A1

HOSE

1490 mm/58-11/16 inch long, signal, backhoe valve swing section to loader control valve inlet section, see Figure 8-040 for tee or cross

1шт.

38

191532A1

SWITCH

rocker, auxiliary hydraulics

1шт.

39

192299A1

DECAL

auxiliary hydraulics, switch on instrument panel, see Figure 9-170 for decal

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

41

187013A1

HARNESS

auxiliary hydraulics, attaches to foot switch, solenoid valves and cab harness

1шт.

42

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 37
