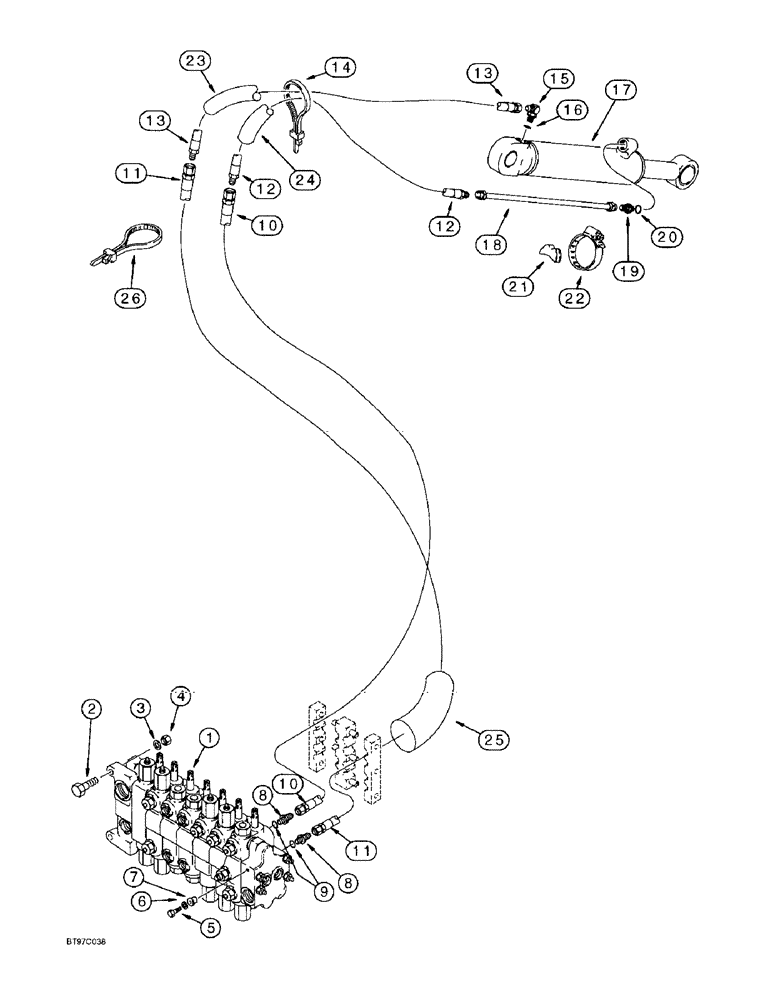

Запчасти Case 580L (8-032) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-078

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, extendable dipper section upper and lower ports, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

143358A1

HOSE

3073 mm/121 inch long, includes hose guard and clamp, in boom, to extendable dipper cylinder rod end

1шт.

11

143359A1

HOSE,12.7mm ID x 3073mm L

3073 mm/121 inch long, includes hose guard and clamp, in boom, to extendable dipper cylinder closed end

1шт.

12

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm/33-1/2 inch long, extendable dipper cylinder rod end, used with Ref. 24 sleeve, if used

1шт.

12

184617A1

HYDRAULIC HOSE,12.7mm ID x 850mm L

HOSE, HYDRAULIC, 850 mm (33-1/2") long, Incl hose guard and clamp, Extendable dipper cylinder rod end, if used

1шт.

13

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

700 mm/27-9/16 inch long, extendable dipper cylinder closed end, used with Ref. 23 sleeve, if used

1шт.

13

184616A1

HYDRAULIC HOSE,12.7mm ID x 700mm L

HOSE, HYDRAULIC - 700 mm (27-9/16") long, Incl hose guard and clamp, Extendable dipper cylinder closed end, if used

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2-4шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, extendable dipper cylinder closed end, 90°, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy, 76 (3) ID x 1068 mm, 42 inch stroke, Extendable dipper, See Figure 8-138

1шт.

17

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

17

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

18

D140706

PIPE

TUBE, at extendable dipper cylinder rod end, Replaces: P/N 136442A1 tube

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, extendable dipper cylinder rod end, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

D38648

BLOCK

SPACER rubber

1шт.

22

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

1шт.

23

D134728

TUBE

SLEEVE bulk, 725 mm/28-1/2 inch long, if used

1шт.

24

D134729

SLEEVE

625 mm/24-5/8 inch long, if used

1шт.

25

224057A1

SLEEVE

1000 mm/39-3/8 inch long, if used, Replaces: P/N 143263A1 sleeve

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2-5шт.
