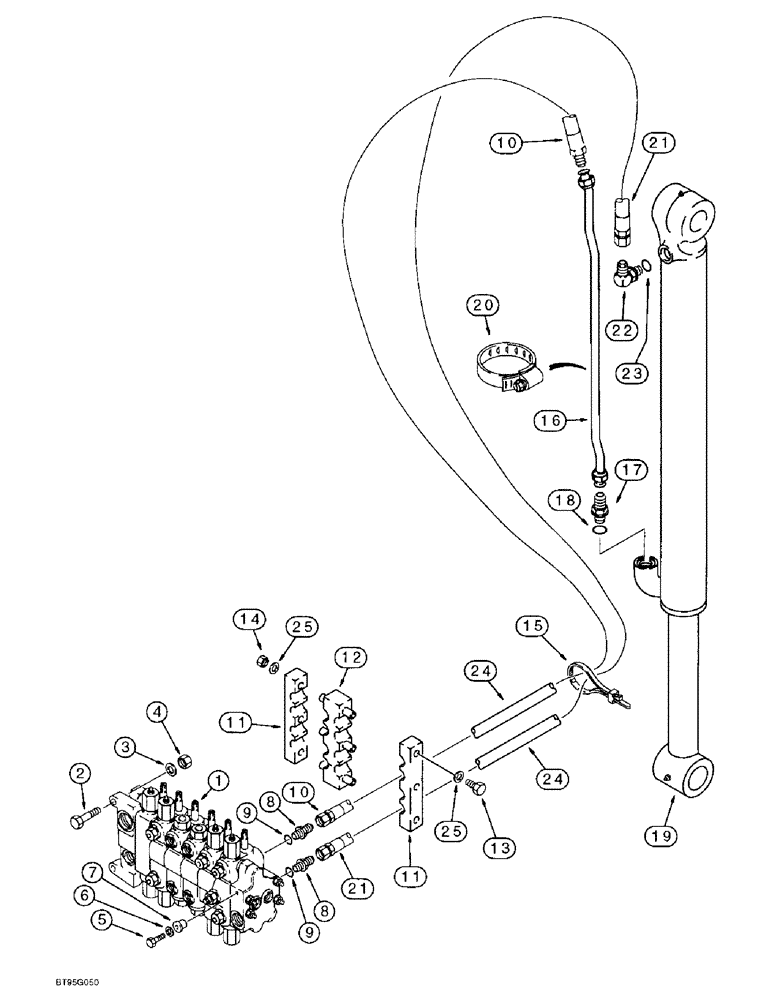

Запчасти Case 580L (8-028) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-076

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, bucket section upper and lower ports, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

143354A1

HOSE

3860 mm/152 inch long, to bucket cylinder rod end, used with Ref. 24 sleeve, no longer available, order P/N 194158A1 hose

1шт.

10

194158A1

HOSE,12.7mm ID x 3860mm L

3860 mm/152 inch long, includes hose guard and clamp, to bucket cylinder rod end

1шт.

11

178951A1

CLAMP

hose, outer

2шт.

12

178952A1

CLAMP

hose, center

1шт.

13

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

hex, 10-1.5 x 120 mm

3шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

3шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2-4шт.

16

136436A1

TUBE,19.05 mm OD, 906 mm Length

bucket cylinder rod end

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, bucket cylinder rod end, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

CYLINDER ASSEMBLY, 83/3-1/4 ID x 872 mm/34-5/16 inch stroke, bucket, see Figure 8-136

1шт.

19

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

19

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

20

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

21

143355A1

HOSE ASSY.

HOSE, 3860 mm/152 inch long, to bucket cylinder closed end, used with Ref. 24 sleeve, no longer available, order P/N 194159A1 hose

1шт.

21

194159A1

HOSE,12.7mm ID x 3860mm L

3860 mm/152 inch long, includes hose guard and clamp, to bucket cylinder closed end

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, Incl. Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

224057A1

SLEEVE

1000 mm/39-3/8 inch long, Replaces: P/N 143263A1 sleeve, if used

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.
