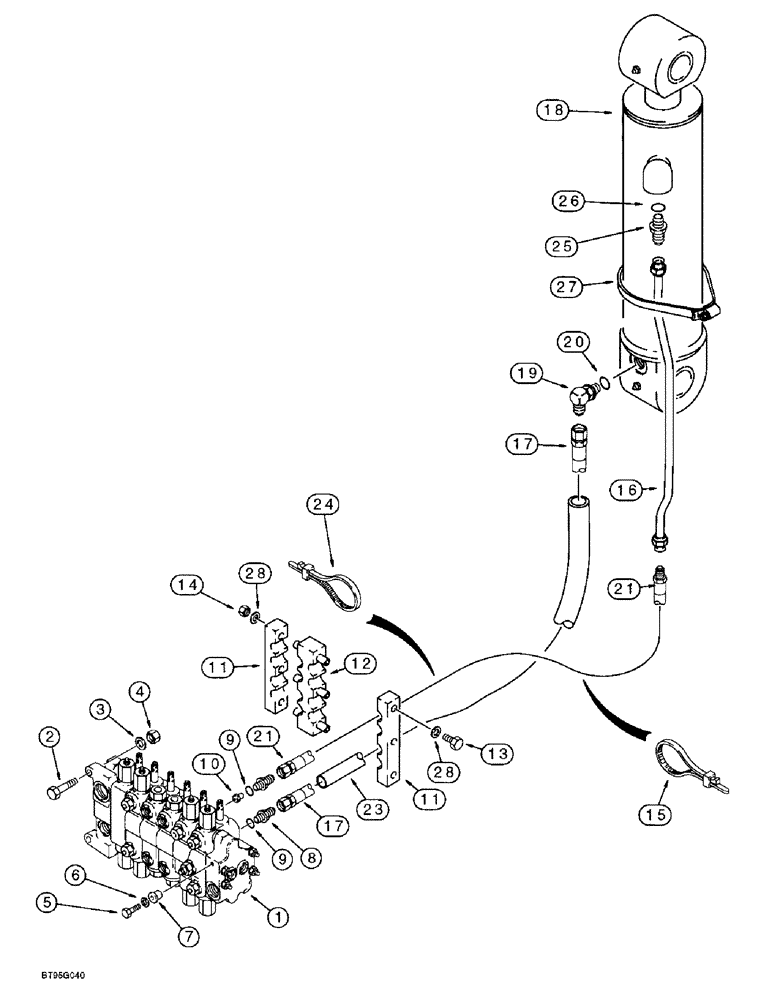

Запчасти Case 580L (8-026) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-076 or 8-078

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, dipper section upper and lower ports, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

184254A1

ORIFICE

RESTRICTOR check, dipper section upper port

1шт.

11

178951A1

CLAMP

hose, outer

2шт.

12

178952A1

CLAMP

hose, center

1шт.

13

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

hex, 10-1.5 x 120 mm

3шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

3шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon retaining, 15 inch, if used

4шт.

16

185497A1

HYD TUBE,19.05 mm OD, 770, 33 mm Length

TUBE to dipper cylinder rod end

1шт.

17

188741A1

HOSE

2000 mm/78-3/4 inch long, dipper cylinder closed end, used with Ref. 23 sleeve, no longer available, order P/N 227514A1 hose

1шт.

17

227514A1

HOSE,12.7mm ID x 2025mm L

2025 mm/79-3/4 inch long, includes hose guard and clamp, dipper cylinder closed end, Replaces: P/N 194358A1 2000 mm long hose

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY, 108/4-1/4 ID x 686 mm/27 inch stroke, dipper, for correct assembly and components, see Figure 8-135 or 8-135B

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, Incl. Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

188740A1

HOSE ASSY.

HOSE, 2000 mm/78-3/4 inch long, dipper cylinder rod end, used with Ref. 23 sleeve, no longer available, order P/N 227513A1 hose

1шт.

21

227513A1

HOSE,12.7mm ID x 2025mm L

2025 mm/79-3/4 inch long, includes hose guard and clamp, dipper cylinder rod end, Replaces: P/N 194357A1, 2000 mm long hose

1шт.

23

224057A1

SLEEVE

1000 mm/39-3/8 inch long, Replaces: P/N 143263A1 sleeve, if used

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2-4шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj. #88, 5.12/6.00 Type F Worm

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.
